DescriptionMaterial:Carbon steel.Version:Black oxidised.Supplied withForm A
41375-0012
4x M12 claw clamps
4x M12x55 hex head screws grade 12.9
4x M12 washers for clamps
41375-0016
4x M16 clamping claws
4x M16x60 hex head screws grade 12.9
4x M16 washers for clamps
Form B
41375-1412
4x M12 claw clamps
4x M12x55 hex head screws grade 12.9
4x M12 washers for clamps
4x T-slot nuts for 14mm slots
2x T-slot keys
2x M6x12 cap screws
41375-1816
4x M16 claw clamps
4x M16x60 hex head screws grade 12.9
4x M16 washers for clamps
4x T-slot nuts for 18mm slots
2x T-slot keys
2x M6x12 cap screws
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

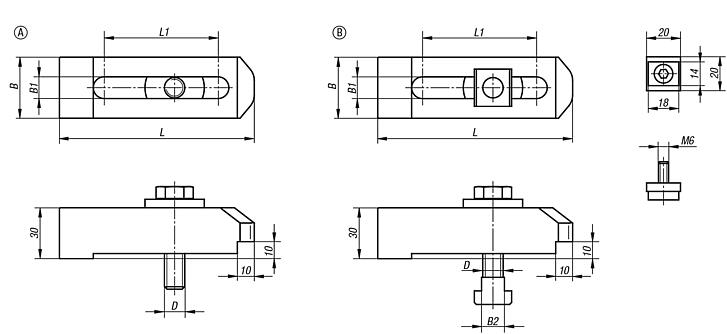

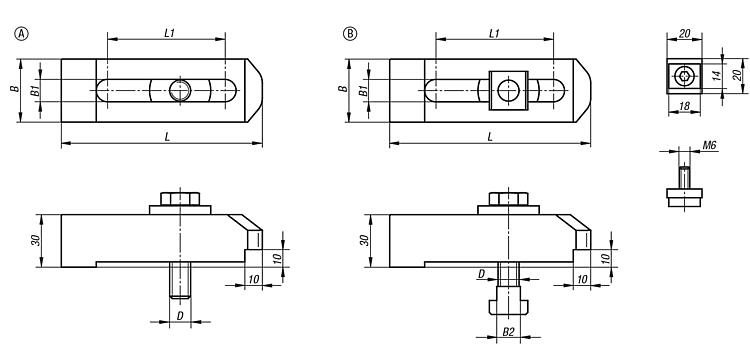

Drawings (total overview) |
Order No.
| Form | Form definition | B | B1 | D | L | L1 | CAD | Acc. | Price | Order |
|---|
| 41375-0012 | A | without slot key | 40 | 12,8 | M12 | 115 | 67,2 |  | | on request | | | 41375-0016 | A | without slot key | 40 | 16,8 | M16 | 115 | 67,2 | | | on request | |
|
|
