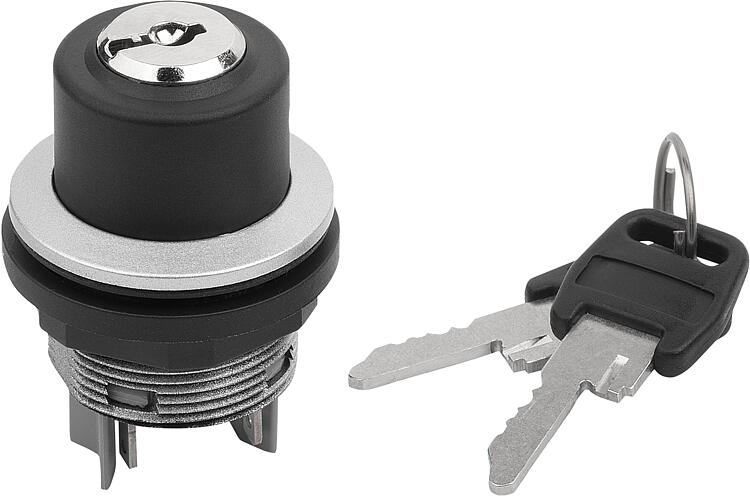

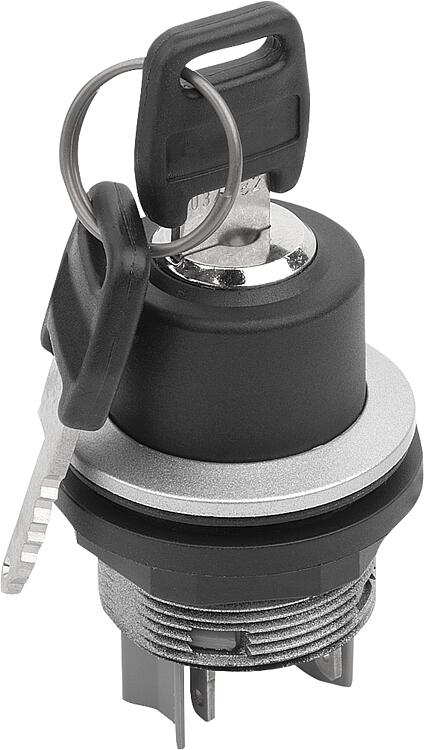

        Lockable switch, snap-action, installation version, Ø 22.3 mm, flat tab connection, compact

Item description/product images

DescriptionMaterial:Plastic
Contact terminals AgNi.Version:Selector switch black.
Front frame silver.Note:Round lockable switch with integrated contactor and connections for flat tab plugs (use partially or fully insulated flat pin sockets). The lockable switches are each supplied with 2 keys. The locks have a single key system, i.e. each lock can be opened with the same key.

These lockable switches impress with their ergonomic design. Their installation diameter is 22.3 mm and they are easy to install. The selector switches fulfill all relevant standards.

The IP rating applies to the front part.

Certificates / Standards met:
CCC, CE, cURus, DNV, ENEC10, VDE, UKCA.
EN 60947-5-1, EN 61058-1.Technical data:Mounting position: arbitrary.
Mechanical lifespan: 30,000 switching cycles.
Electrical lifespan: 30,000 switching cycles at nominal load.Temperature range:Storage temperature: -40 °C to +80 °C.
Operating temperature: -25°C to +70°C.Accessory:Surface-mounted housing 81200, 81200-05.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 81050-10 Lockable switch, snap-action, installation version, Ø 22.3 mm, flat tab connection, compact

450 kB

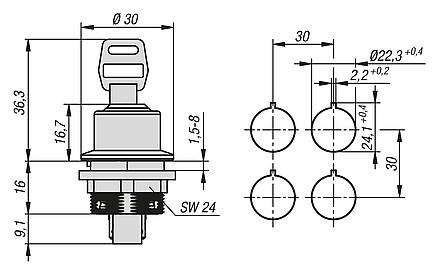

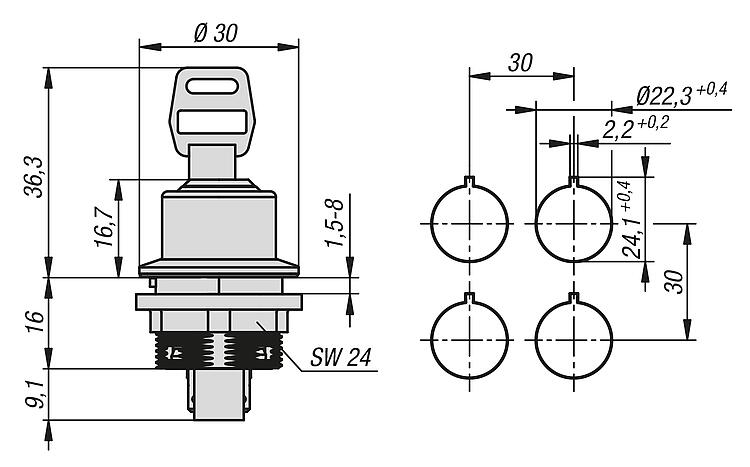

Drawings

Item selection/filter

Order No.	Connection type	No. of NC contacts	No. of NO contacts	Tightening torque Mounting nut Nm	Series	Illuminable	Price
81050-10-10200090001	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no	on request
81050-10-10200090010	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no	on request
81050-10-10200090011	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no	on request
81050-10-10209090010	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no	on request
81050-10-10209090111	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no	on request

Order No.	Contact resistance m Ohm	Installed Ø	Min. voltage V	Min. current mA	Bounce time ms	Reference number	Price
81050-10-10200090001	<20	22,3	5	1	<10	SSSA16II	on request
81050-10-10200090010	<20	22,3	5	1	<10	SSSA14II	on request
81050-10-10200090011	<20	22,3	5	1	<10	SSSA15II	on request
81050-10-10209090010	<20	22,3	5	1	<10	SSSA13II	on request
81050-10-10209090111	<20	22,3	5	1	<10	SSSA12II	on request

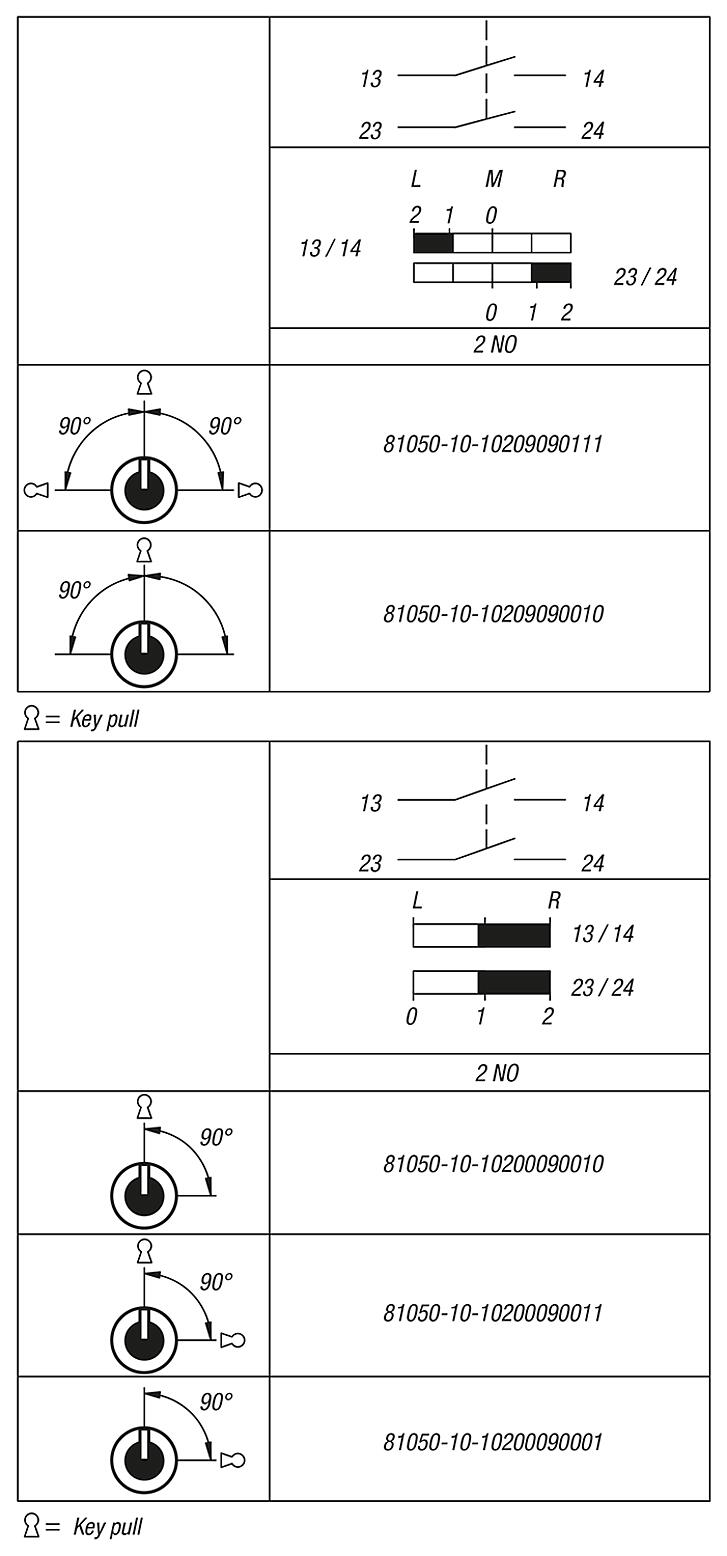

Order No.	Switching angle	Safety rating	Contamination level	Overvoltage category	Price
81050-10-10200090001	90° rechts	IP65	2	II	on request
81050-10-10200090010	90° rechts	IP65	2	II	on request
81050-10-10200090011	90° rechts	IP65	2	II	on request
81050-10-10209090010	90°links/90°rechts	IP65	2	II	on request
81050-10-10209090111	90°links/90°rechts	IP65	2	II	on request
