Low-friction guides

80855-08

Low-friction guides

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains
        Low-friction guides

Item description/product images

DescriptionMaterial:Polyamide PA6.Version:black.Note:The low-friction cable guide enables the energy chain/corrugated pipe to run smoothly and evenly through the guide.Temperature range:-45 °C to +105 °C (briefly up to +150 °C).Assembly:The low-friction guide is opened and closed tool-free via a plastic latch. The inner jaws consist of two identical half shells that are fitted on the energy chain via hole-pin connections. The jaws fitted around the energy chain are inserted into the connecting element and ensure that the energy chain runs smoothly.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-08 Low-friction guides

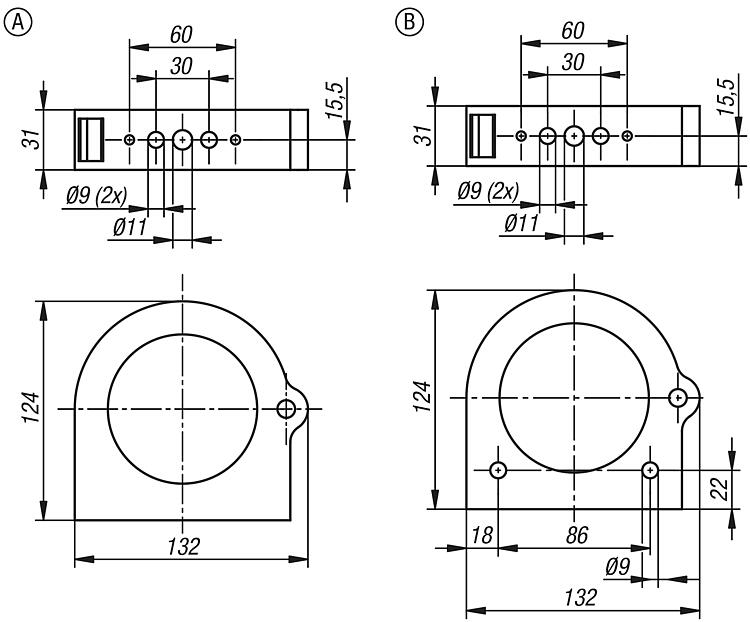

Drawings (total overview)

Low-friction guides

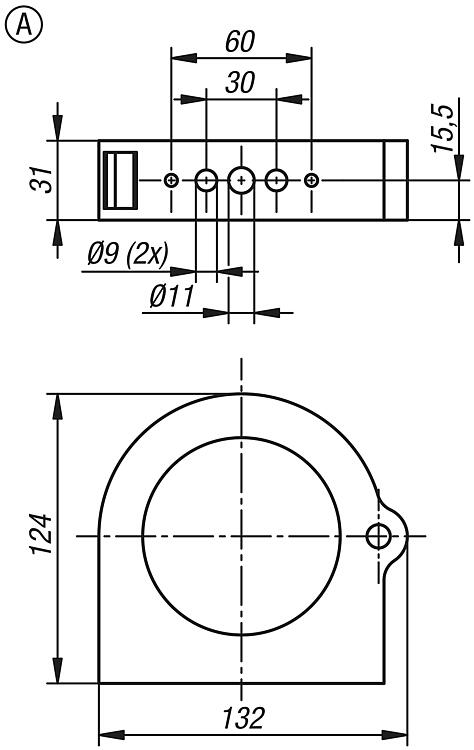

Low-friction guide, Form A

More information

Drawings

Low-friction guide, Form A

Item selection/filter

Order No.	Form	Form definition	Nominal size	CAD	Acc.	Price	Order
80855-08-07011	A	standard	70			on request

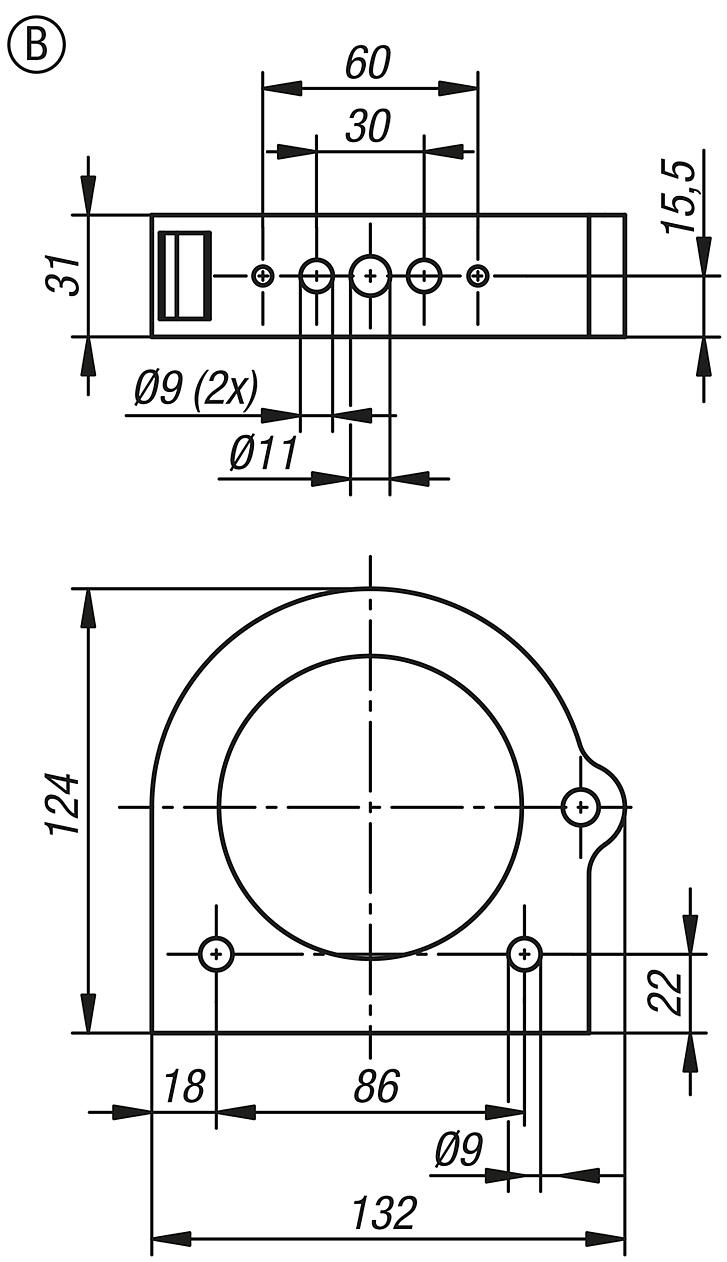

Low-friction guides, Form B

More information

Drawings

Low-friction guides, Form B

Item selection/filter

Order No.	Form	Form definition	Nominal size	CAD	Acc.	Price	Order
80855-08-07021	B	front fastening	70			on request
