        Mounting sets, stainless steel actuators

Item description/product images

DescriptionMaterial:Torque arm stainless steel
Mounting adapter stainless steel.Note:The mounting sets are required to connect the actuators 85000-50 to the linear actuators 29105, the double-tube linear actuators 21250 and 21250-01 or the square linear actuator 29104.Accessory:Stainless steel or aluminium actuators for linear actuators 85000-50.
Linear actuator 29105.
Stainless steel linear actuators 29105.
Double-tube linear actuators 21250.
Double-tube linear actuator with mounting bracket 21250-01.
Aluminium square linear actuators 29104.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 85000-51 Mounting sets, stainless steel actuators

144 kB

Technical information on actuators

554 kB

Mounting instructions - Mounting set 85000-51

932 kB

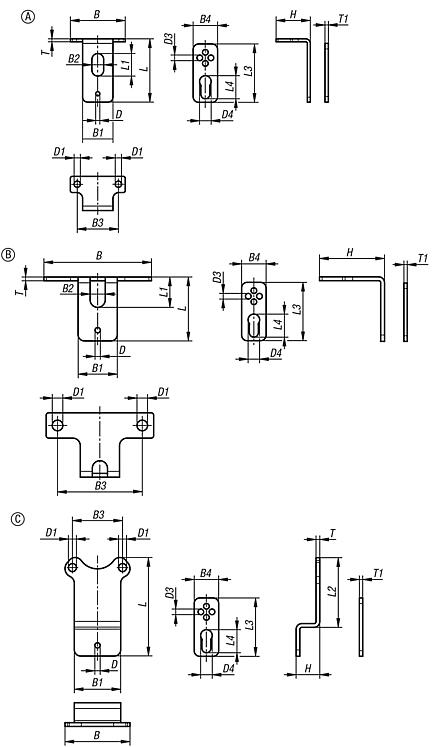

Drawings (total overview)

Mounting sets, stainless steel, for actuators, Form A

More information

Drawings

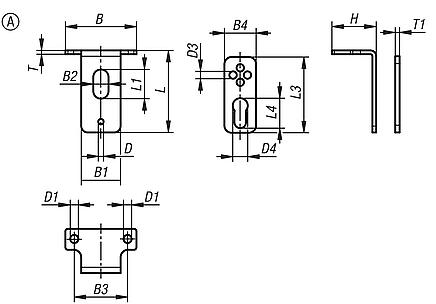

Mounting sets, stainless steel, for actuators, Form A

Item selection/filter

Order No.	Form	Version 1	Type E	Typ EV	B	B1	B2	B3	B4	D	D1	D2	D3	H	L	L1	L3	L4	T1	Price
85000-51-040	A	for linear actuator	40	-	68	31	12	54	22	M5	6,4	5	10,4	47,4	57,6	23	52,5	20,9	3	on request
85000-51-030	A	for linear actuator	30	-	56	31	12	42	22	M5	6,4	5	10,4	34,9	64,5	23	52,5	20,9	3	on request
85000-51-230	A	for square linear actuator	-	30	56	31	12	42	22	M5	6,4	5	10,4	34,9	64,5	23	52,5	20,9	3	on request
85000-51-240	A	for square linear actuator	-	40	68	31	12	54	22	M5	6,4	5	10,4	34,9	57,6	23	52,5	20,9	3	on request
