Bushing steel, tapered

go back

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Accessories for indexing plungers, cam-action indexing plungers and ball lock pins

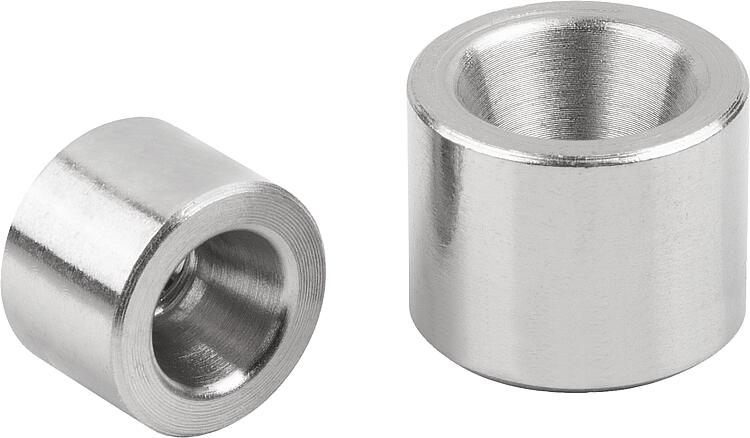

        Bushing steel, tapered

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Bushing for indexing plungers 03096-40 and 03096-42.

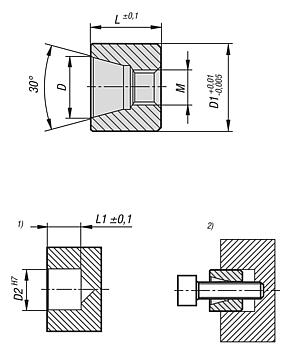

To remove, screw a bolt into the thread.Accessory:Indexing plungers 03096-40 and 03096-42.Drawing reference:

1) Installation dimensions
2) Dismantling

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096-44 Bushing steel, tapered

190 kB

Drawings

Item selection/filter

Order No.	L	D	D1	D2	M	L1	CAD	Acc.	Price	Order
03096-44-005	6	5	8	8	M3	6,2			on request
03096-44-007	8	7	10	10	M4	8,2			on request
