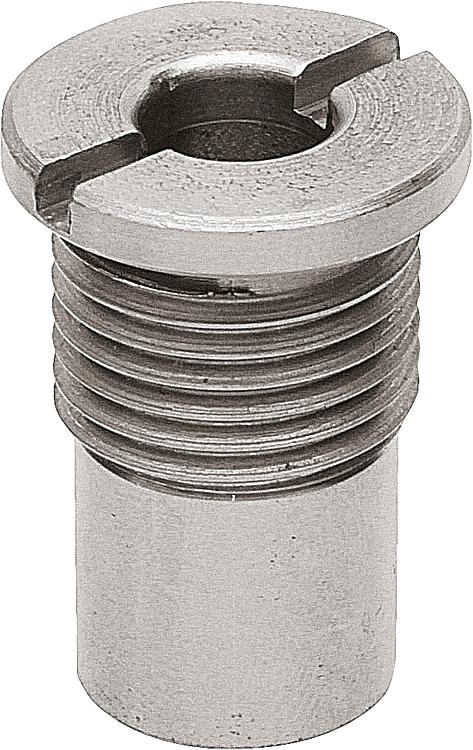

DescriptionMaterial:Housing steel.
Balls and springs stainless steel.Version:Housing nickel-plated.
Balls tempered.Note:The 3 balls inside the bushing hold the locking pin with the specified retaining force.

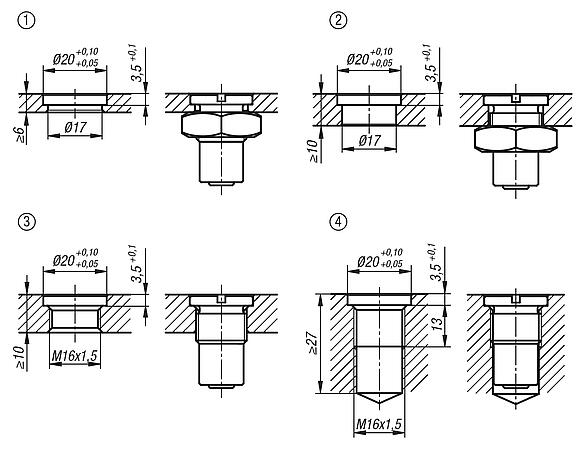

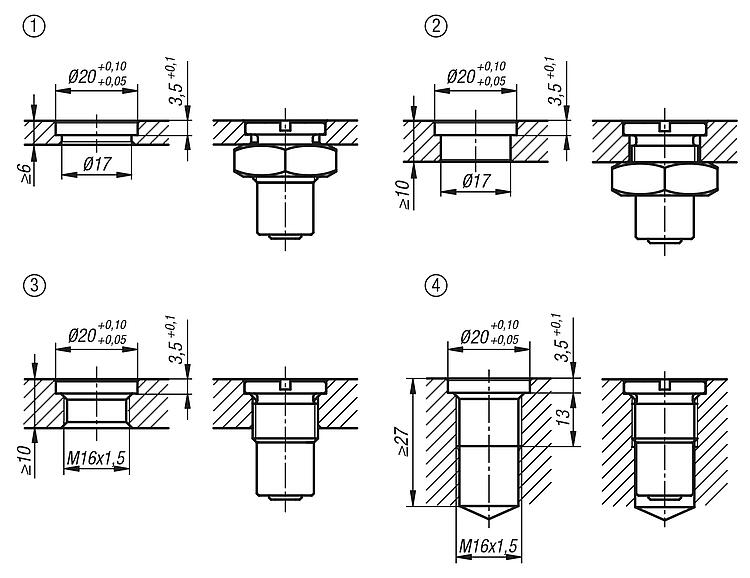

Installation option 1: min. plate thickness 6 mm.
Installation option 2: max. plate thickness 10 mm.
Installation option 3: plate thickness > 10 mm.
Installation option 4: blind hole.On request:Suitable nuts.Accessory:Locking pin 03192-04.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

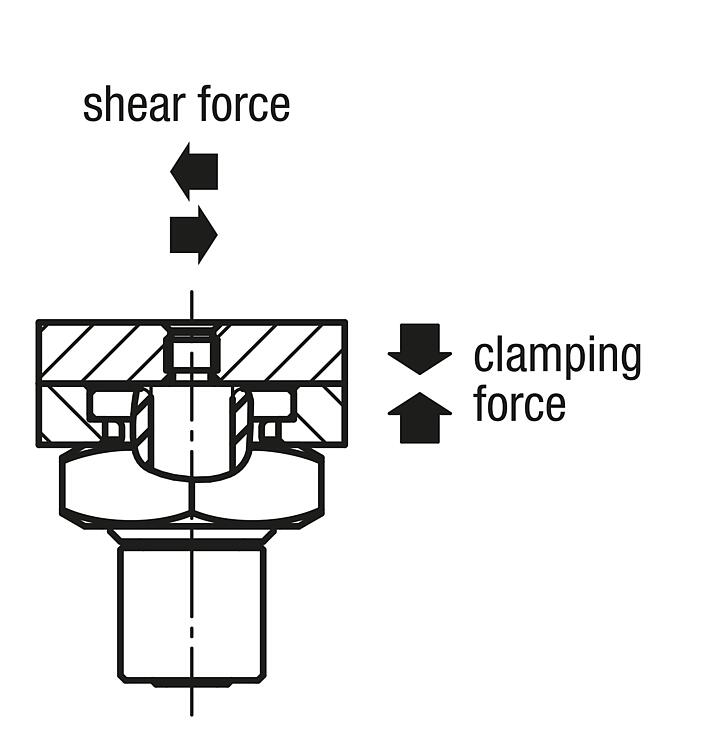

| Order No. | Clamping
force
N | Shearing force
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 03192-03-7 | 7 | 1,8 | ≤180 °C |  | | on request | | | 03192-03-15 | 15 | 1,8 | ≤180 °C | | | on request | |
