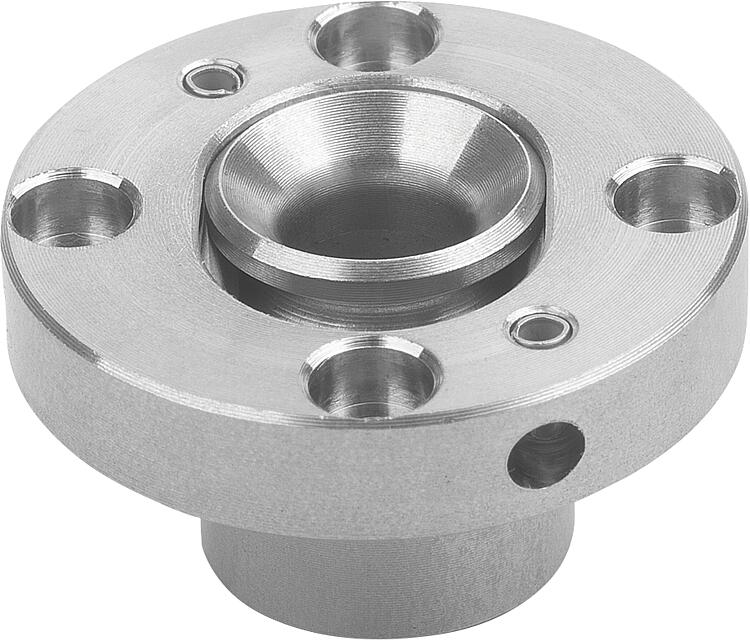

        Locating bushes, stainless steel, floating, for ball lock pins

Item description/product images

DescriptionMaterial:Stainless steelVersion:Bright.Note:The locating bush extends the hole pitch tolerance range if the required pitch tolerance of the fastening holes cannot be maintained. The slider can be moved 1 mm to the left or right.

Stainless steel M2 or M3 fastening screws are supplied.

Mounting option 1: By From A for plate thickness 9-16 mm and by Form B for plate thickness 10-18 mm.
Mounting option 2: By Form A for plate thickness > 16 mm and by form B for plate thickness > 18 mm.Drawing reference:

1) Mounting option 1
2) Mounting option 2
3) Plate
4) Suitable for M2 fastening screws (with hex socket)
or M3 (with hex socket, low head)

Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03192-07 Locating bushes, stainless steel, floating, for ball lock pins

TH-fuer-Aufnahmebuchsen-schwimmend-03192-07_EN

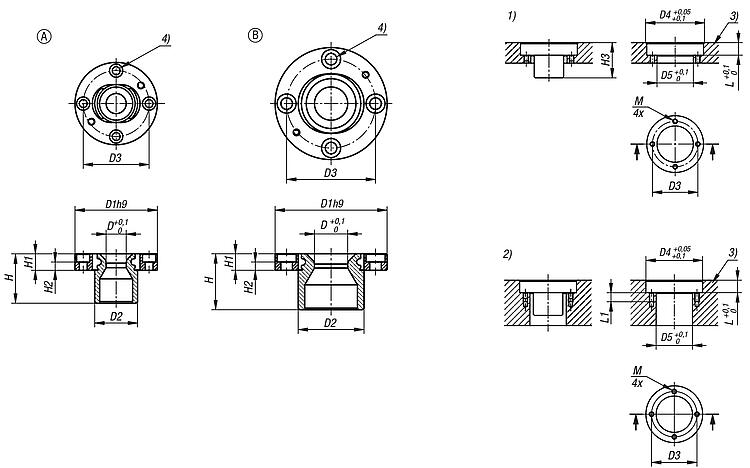

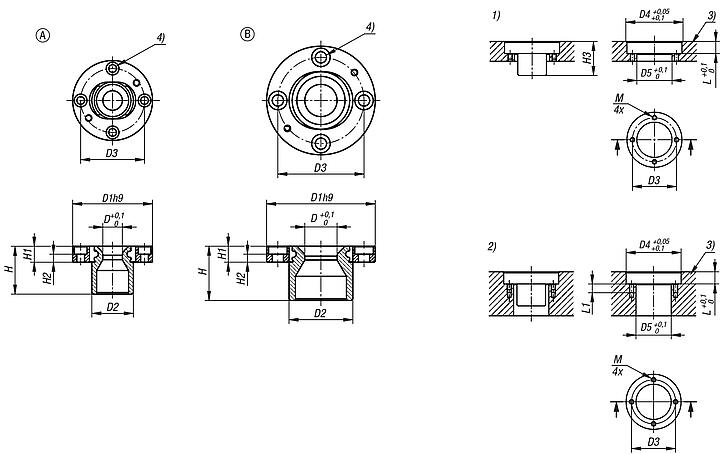

Drawings (total overview)

Locating bushes, stainless steel, floating, for ball lock pins

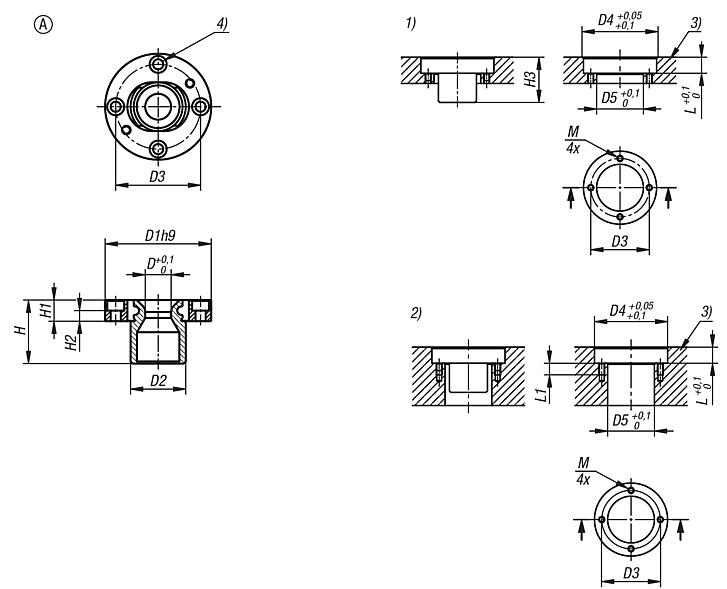

Locating bushes, stainless steel, floating, for ball lock pins, Form A

More information

Drawings

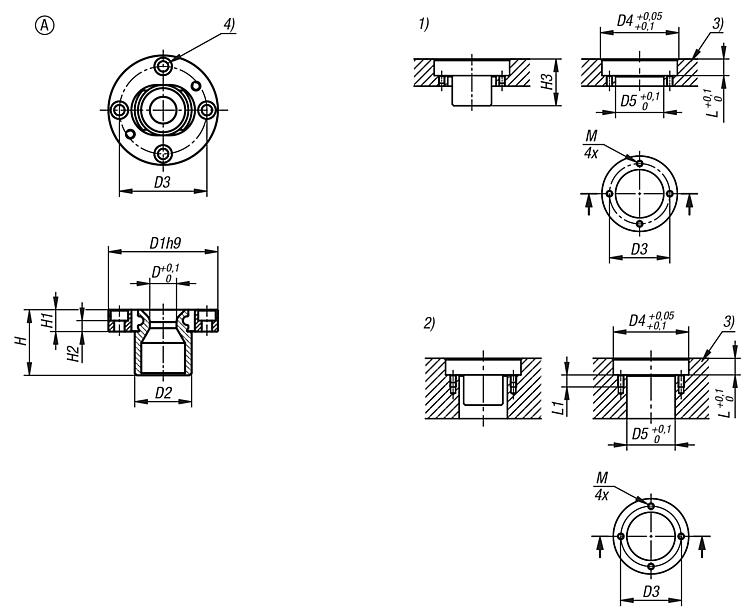

Locating bushes, stainless steel, floating, for ball lock pins, Form A

Item selection/filter

Order No.	Form	D	D1	D2	D3	D4	D5	H	H1	H2	H3	L	L1	M	CAD	Acc.	Price	Order
03192-07-12513	A	6,1	25	13	20	25	16	15	5	2,5	15,5	5,5	4	M2			on request

Locating bushes, stainless steel, floating, for ball lock pins, Form B

More information

Drawings

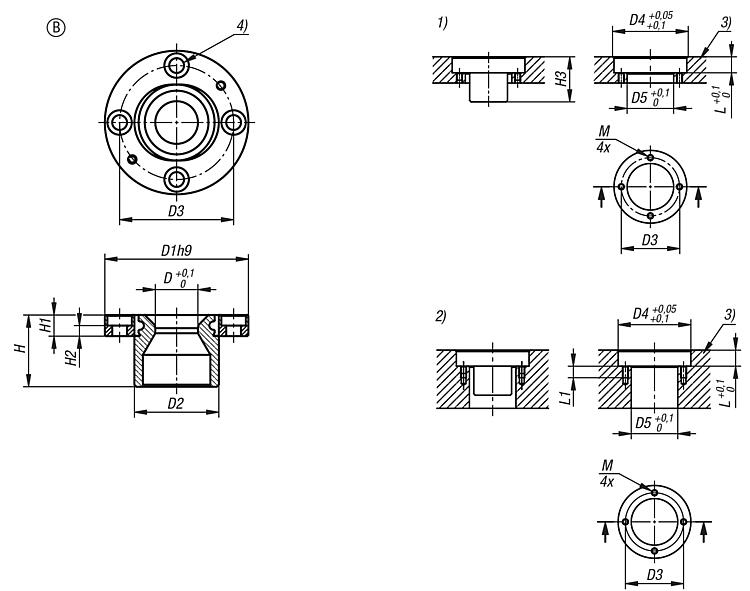

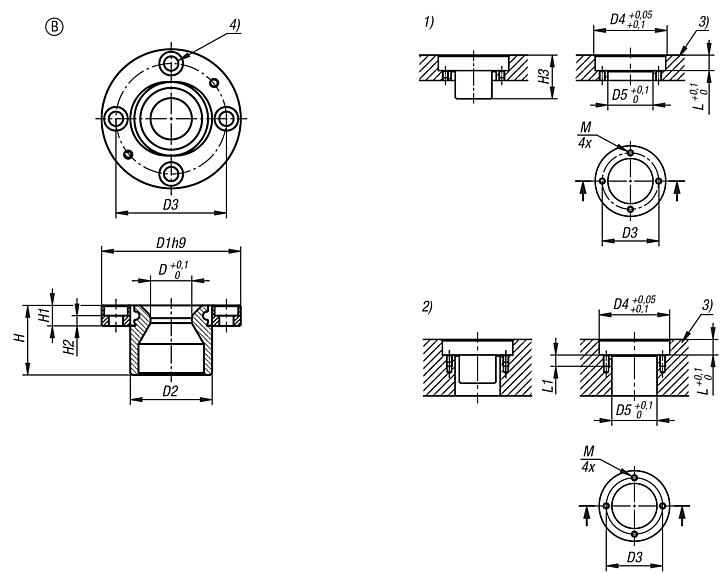

Locating bushes, stainless steel, floating, for ball lock pins, Form B

Item selection/filter

Order No.	Form	D	D1	D2	D3	D4	D5	H	H1	H2	H3	L	L1	M	CAD	Acc.	Price	Order
03192-07-13420	B	10,1	34	20	27	34	22	17	5	2,5	17,5	5,5	5	M3			on request
