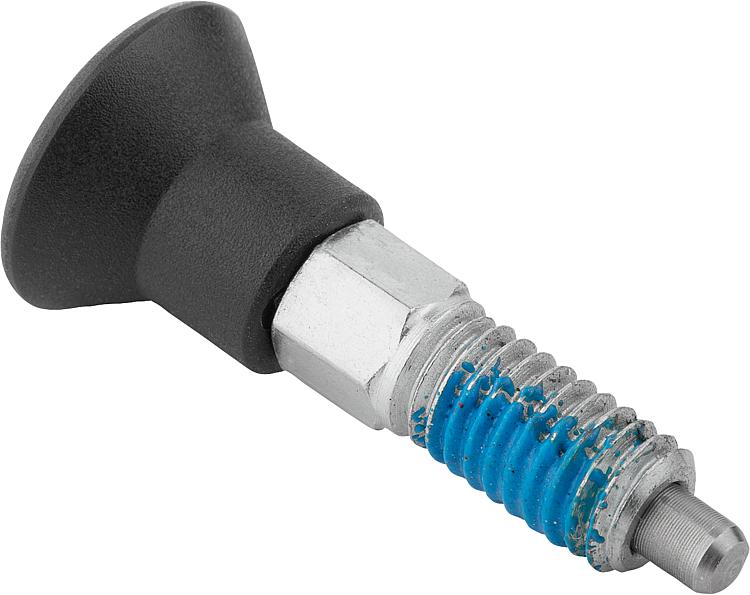

        Indexing plungers ECO, steel or stainless steel with plastic mushroom grip and thread lock
        Indexing plungers ECO, steel or stainless steel with plastic mushroom grip and thread lock, no locking slot

Item description/product images

DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted. Form CP is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

The thread lock allows the fitting depth to be coordinated exactly with the existing components, so that no stops are required.

Indexing plungers with regular threads and not ground or hardened indexing pins are a cost-effective alternative to existing indexing plungers. However, the precision offered is still sufficient for many applications. The tighter machining tolerances also make these products less sensitive to the alignment errors that can occur when aligning indexing plungers with the hole in the opposite component.Material:

Steel version:
Threaded sleeve and indexing pin free-cutting steel.

Stainless steel version:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4034 (AISI 420 equivalent).

Mushroom grip thermoplastic.
Thread lock polyamide.

Version:Steel version:
Threaded sleeve blue passivated.
Indexing pin not hardened, bright.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened, bright.

Mushroom grip black grey RAL7021.

Thread lock blue.Note:The thread lock is a bonding polyamide coating that is applied pointwise (spot).On request:Special versions and fine thread.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03089_AP Indexing plungers ECO, steel or stainless steel with plastic mushroom grip and thread lock

164 kB

Drawings

Item selection/filter

Order No.	Main material	Form	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03089-091903060	steel	AP	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	on request
03089-091004060	steel	AP	4	M6	14	36	15	6	13	4	6	1	6	12	on request
03089-091105080	steel	AP	5	M8	14	40	17	7	15	5	8	1,3	6	12	on request
03089-091206100	steel	AP	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	on request
03089-091308120	steel	AP	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	on request
03089-191903060	stainless steel	AP	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	on request
03089-191004060	stainless steel	AP	4	M6	14	36	15	6	13	4	6	1	6	12	on request
03089-191105080	stainless steel	AP	5	M8	14	40	17	7	15	5	8	1,3	6	12	on request
03089-191206100	stainless steel	AP	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	on request
03089-191308120	stainless steel	AP	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	on request
