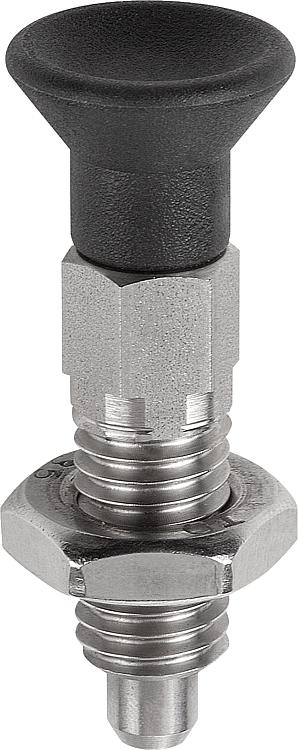

03089_BIndexing plungers ECO, steel or stainless steel, with plastic... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted.
Form C and D are recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.
Indexing plungers with regular threads and not ground or hardened indexing pins are a cost-effective alternative to existing indexing plungers. However, the precision offered is still sufficient for many applications. The smaller machining tolerances also make these products less sensitive to the alignment errors that can occur when aligning indexing plungers with the hole in the opposite component.Material:Steel version:
Threaded sleeve free-cutting steel.
Indexing pin 1.4305.
Stainless steel version:
Threaded sleeve and indexing pin 1.4305.
Mushroom grip thermoplastic. Version:Steel version:
Threaded sleeve blue passivated.
Indexing pin not hardened, bright.
Stainless steel version:
Threaded sleeve bright.
Indexing pin not hardened, bright.
Mushroom grip black grey RAL7021.
Thread lock blue.Note:Pay attention to the max. tightening torque when assembling.On request:Special versions.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form
| Main
material | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| 03089-02903060 | B | steel | 3 | M6 | 14 | 31,5 | 12 | 5 | 10 | 3,5 | 6 | 10 | 0,8 | 4 | 10 | 2 |  | | on request | | | 03089-02004060 | B | steel | 4 | M6 | 14 | 36 | 15 | 6 | 13 | 4 | 6 | 10 | 1 | 6 | 12 | 2 | | | on request | | | 03089-02004080 | B | steel | 4 | M8 | 14 | 36 | 15 | 6 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 7 | | | on request | | | 03089-02105080 | B | steel | 5 | M8 | 14 | 40 | 17 | 7 | 15 | 5 | 8 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | 03089-02105100 | B | steel | 5 | M10 | 18 | 42,5 | 17 | 7 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 15 | | | on request | | | 03089-02206100 | B | steel | 6 | M10 | 18 | 47,5 | 20 | 8 | 17 | 6 | 10 | 17 | 1,8 | 8 | 15 | 15 | | | on request | | | 03089-02206120 | B | steel | 6 | M12 | 25 | 51,7 | 20 | 8 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 20 | | | on request | | | 03089-02308120 | B | steel | 8 | M12 | 25 | 61,7 | 26 | 10 | 23 | 8 | 12 | 19 | 2,3 | 8 | 19 | 20 | | | on request | | | 03089-12903060 | B | stainless steel | 3 | M6 | 14 | 31,5 | 12 | 5 | 10 | 3,5 | 6 | 10 | 0,8 | 4 | 10 | 2 | | | on request | | | 03089-12004060 | B | stainless steel | 4 | M6 | 14 | 36 | 15 | 6 | 13 | 4 | 6 | 10 | 1 | 6 | 12 | 2 | | | on request | | | 03089-12004080 | B | stainless steel | 4 | M8 | 14 | 36 | 15 | 6 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 7 | | | on request | | | 03089-12105080 | B | stainless steel | 5 | M8 | 14 | 40 | 17 | 7 | 15 | 5 | 8 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | 03089-12105100 | B | stainless steel | 5 | M10 | 18 | 42,5 | 17 | 7 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 15 | | | on request | | | 03089-12206100 | B | stainless steel | 6 | M10 | 18 | 47,5 | 20 | 8 | 17 | 6 | 10 | 17 | 1,8 | 8 | 15 | 15 | | | on request | | | 03089-12206120 | B | stainless steel | 6 | M12 | 25 | 51,7 | 20 | 8 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 20 | | | on request | | | 03089-12308120 | B | stainless steel | 8 | M12 | 25 | 61,7 | 26 | 10 | 23 | 8 | 12 | 19 | 2,3 | 8 | 19 | 20 | | | on request | | | 03089-02903061 | B | steel | 3 | M6x0,75 | 14 | 31,5 | 12 | 5 | 10 | 3,5 | 6 | 10 | 0,8 | 4 | 10 | 2 | | | on request | | | 03089-02004061 | B | steel | 4 | M6x0,75 | 14 | 36 | 15 | 6 | 13 | 4 | 6 | 10 | 1 | 6 | 12 | 2 | | | on request | | | 03089-02004081 | B | steel | 4 | M8x1 | 14 | 36 | 15 | 6 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 7 | | | on request | | | 03089-02105081 | B | steel | 5 | M8x1 | 14 | 40 | 17 | 7 | 15 | 5 | 8 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | 03089-02105101 | B | steel | 5 | M10x1 | 18 | 42,5 | 17 | 7 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 15 | | | on request | | | 03089-02206101 | B | steel | 6 | M10x1 | 18 | 47,5 | 20 | 8 | 17 | 6 | 10 | 17 | 1,8 | 8 | 15 | 15 | | | on request | | | 03089-02206121 | B | steel | 6 | M12x1,5 | 25 | 51,7 | 20 | 8 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 20 | | | on request | | | 03089-02308121 | B | steel | 8 | M12x1,5 | 25 | 61,7 | 26 | 10 | 23 | 8 | 12 | 19 | 2,3 | 8 | 19 | 20 | | | on request | | | 03089-12903061 | B | stainless steel | 3 | M6x0,75 | 14 | 31,5 | 12 | 5 | 10 | 3,5 | 6 | 10 | 0,8 | 4 | 10 | 2 | | | on request | | | 03089-12004061 | B | stainless steel | 4 | M6x0,75 | 14 | 36 | 15 | 6 | 13 | 4 | 6 | 10 | 1 | 6 | 12 | 2 | | | on request | | | 03089-12004081 | B | stainless steel | 4 | M8x1 | 14 | 36 | 15 | 6 | 13 | 4 | 8 | 13 | 1 | 6 | 12 | 7 | | | on request | | | 03089-12105081 | B | stainless steel | 5 | M8x1 | 14 | 40 | 17 | 7 | 15 | 5 | 8 | 13 | 1,3 | 6 | 12 | 7 | | | on request | | | 03089-12105101 | B | stainless steel | 5 | M10x1 | 18 | 42,5 | 17 | 7 | 15 | 5 | 10 | 17 | 1,3 | 6 | 12 | 15 | | | on request | | | 03089-12206101 | B | stainless steel | 6 | M10x1 | 18 | 47,5 | 20 | 8 | 17 | 6 | 10 | 17 | 1,8 | 8 | 15 | 15 | | | on request | | | 03089-12206121 | B | stainless steel | 6 | M12x1,5 | 25 | 51,7 | 20 | 8 | 17 | 6 | 12 | 19 | 1,8 | 8 | 15 | 20 | | | on request | | | 03089-12308121 | B | stainless steel | 8 | M12x1,5 | 25 | 61,7 | 26 | 10 | 23 | 8 | 12 | 19 | 2,3 | 8 | 19 | 20 | | | on request | |
