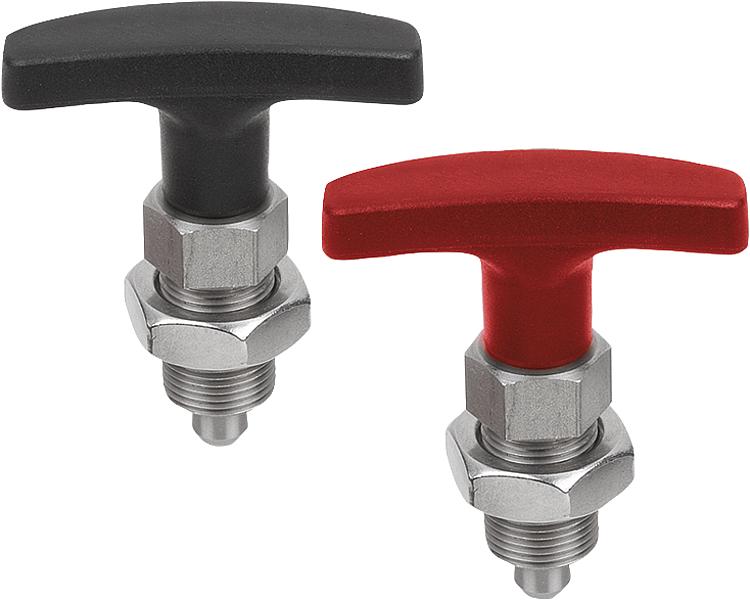

        Indexing plungers, steel or stainless steel with plastic T-grip
        Indexing plungers, steel or stainless steel with plastic T-grip and locknut

Item description/product images

DescriptionProduct description:Indexing plungers are used where any change in locking position due to lateral forces should be prevented. A new indexed position can be only be moved to after the pin has been manually retracted.

The rotation lock ensures that the position of the pin in relation to the sleeve cannot be changed. The lead-in chamfer enables the pin to retract automatically through a lateral force from one side. Loosening the screw up to the marking on the plunger permits the pin to be rotated through 60° increments.Material:

Steel version:
Indexing pin hardened:
Indexing pin steel.
Threaded sleeve steel.

Stainless steel version:
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.

T-grip black grey or traffic red RAL3020 thermoplastic.

Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.

T-grip black-grey RAL7021 or traffic red RAL3020
On request:Special versions.Accessory:Spacer rings 03089.
fastening sets for thin-walled parts 03094-10.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03090_B Indexing plungers, steel or stainless steel with plastic T-grip and locknut

153 kB

Drawings

Item selection/filter

Order No.	Main material	Component material	Component colour	Form	A	B	D	D1	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03090-6206	steel	polyamide	black grey RAL 7021	B	50	15,5	6	M12x1,5	58	20	8	17	6	14	19	1,8	6	14	on request
03090-6308	steel	polyamide	black grey RAL 7021	B	60	18	8	M16x1,5	77	26	10	23	8	19	24	2,3	15	35	on request
03090-6410	steel	polyamide	black grey RAL 7021	B	72	19	10	M20x1,5	84	28	12	25	10	22	30	2,8	15	34	on request
03090-620684	steel	polyamide	traffic red RAL 3020	B	50	15,5	6	M12x1,5	58	20	8	17	6	14	19	1,8	6	14	on request
03090-630884	steel	polyamide	traffic red RAL 3020	B	60	18	8	M16x1,5	77	26	10	23	8	19	24	2,3	15	35	on request
03090-641084	steel	polyamide	traffic red RAL 3020	B	72	19	10	M20x1,5	84	28	12	25	10	22	30	2,8	15	34	on request
03090-06206	stainless steel	polyamide	black grey RAL 7021	B	50	15,5	6	M12x1,5	58	20	8	17	6	14	19	1,8	6	14	on request
03090-06308	stainless steel	polyamide	black grey RAL 7021	B	60	18	8	M16x1,5	77	26	10	23	8	19	24	2,3	15	35	on request
03090-06410	stainless steel	polyamide	black grey RAL 7021	B	72	19	10	M20x1,5	84	28	12	25	10	22	30	2,8	15	34	on request
03090-0620684	stainless steel	polyamide	traffic red RAL 3020	B	50	15,5	6	M12x1,5	58	20	8	17	6	14	19	1,8	6	14	on request
03090-0630884	stainless steel	polyamide	traffic red RAL 3020	B	60	18	8	M16x1,5	77	26	10	23	8	19	24	2,3	15	35	on request
03090-0641084	stainless steel	polyamide	traffic red RAL 3020	B	72	19	10	M20x1,5	84	28	12	25	10	22	30	2,8	15	34	on request
