        Actuating elements for remote control, stainless steel with T-grip, Bowden cable systems

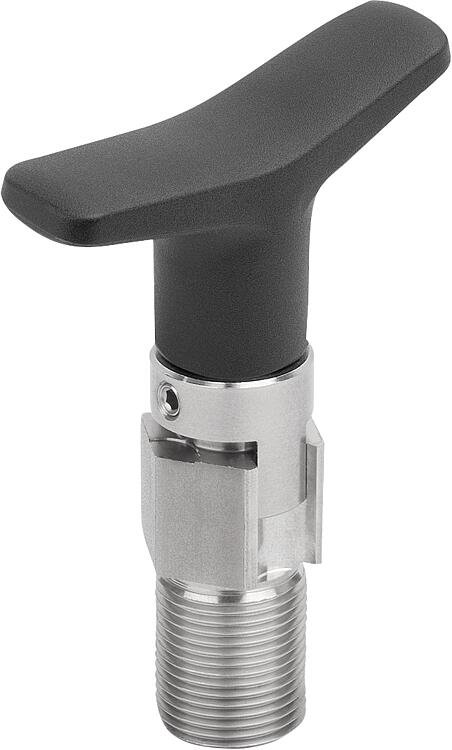

        Actuating elements for remote control, stainless steel, with detent function and T-grip, Bowden cable systems

Item description/product images

DescriptionProduct description:The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Actuation variants: with detent function, without detent function, with rotation lock, rotary cam.
Grip types: Mushroom grip, T-grip, star grip, clamping lever.Material:

Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:Stainless steel parts bright.
Setscrew electro zinc-plated.
Plastic grip black-greyNote for ordering:We recommend using the online shop configurator to create a complete system with ease.Note:When installing the Bowden cables, the following points should be noted:
The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Indexing plunger 03096-08.
Indexing plunger 03096-09.
Hex nut 07212.
Mounting bracket 03099.
Bowden cable 03096-14.
Wire cable 03096-15.
Tension sleeve 03096-20.
End sleeve 03096-25.
Setscrew 03096-30.
Bowden cable distributor 03096-50.Supplied withActuating element with plastic grip and optional setscrew.Drawing reference:

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096-07_B Actuating elements for remote control, stainless steel, with detent function and T-grip, Bowden cable systems

210 kB

Drawings

Item selection/filter

Order No.	Version 1	Bowden cable connection	Size	Form	Form definition	Component colour	A	D	D Internal thread	D1	Price
03096-07-1211204	with t-grip	single	1	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1211205	with t-grip	single	1	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1211206	with t-grip	single	1	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1221208	with t-grip	single	2	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1221210	with t-grip	single	2	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1221212	with t-grip	single	2	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1221216	with t-grip	single	2	B	with detent	black grey RAL 7021	71,5	6	-	M20x1,5	on request
03096-07-1213204	with t-grip	-	1	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request
03096-07-1213205	with t-grip	-	1	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request
03096-07-1213206	with t-grip	-	1	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request
03096-07-1223208	with t-grip	-	2	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request
03096-07-1223210	with t-grip	-	2	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request
03096-07-1223212	with t-grip	-	2	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request
03096-07-1223216	with t-grip	-	2	B	with detent	black grey RAL 7021	71,5	-	M6	M20x1,5	on request

Order No.	Bowden cable connection	Size	Component colour	L	L1	L2	L3	L4	Travel S	SW	Price
03096-07-1211204	single	1	black grey RAL 7021	78,4	25	10	21,2	8	4	22	on request
03096-07-1211205	single	1	black grey RAL 7021	78,4	25	10	21,2	8	5	22	on request
03096-07-1211206	single	1	black grey RAL 7021	78,4	25	10	21,2	8	6	22	on request
03096-07-1221208	single	2	black grey RAL 7021	88,4	25	20	21,2	8	8	22	on request
03096-07-1221210	single	2	black grey RAL 7021	88,4	25	20	21,2	8	10	22	on request
03096-07-1221212	single	2	black grey RAL 7021	88,4	25	20	21,2	8	12	22	on request
03096-07-1221216	single	2	black grey RAL 7021	88,4	25	20	21,2	8	16	22	on request
03096-07-1213204	-	1	black grey RAL 7021	78,4	25	10	21,2	8	4	22	on request
03096-07-1213205	-	1	black grey RAL 7021	78,4	25	10	21,2	8	5	22	on request
03096-07-1213206	-	1	black grey RAL 7021	78,4	25	10	21,2	8	6	22	on request
03096-07-1223208	-	2	black grey RAL 7021	88,4	25	20	21,2	8	8	22	on request
03096-07-1223210	-	2	black grey RAL 7021	88,4	25	20	21,2	8	10	22	on request
03096-07-1223212	-	2	black grey RAL 7021	88,4	25	20	21,2	8	12	22	on request
03096-07-1223216	-	2	black grey RAL 7021	88,4	25	20	21,2	8	16	22	on request
