        Eccentric bushes and assembly tools for lateral spring plungers

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised.Note:Eccentric bushes enable lateral spring plungers to be precisely positioned with regard to the workpiece.Drawing reference:

1) assembly tool

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03330 Eccentric holder and assembly tool for lateral spring plungers.

338 kB

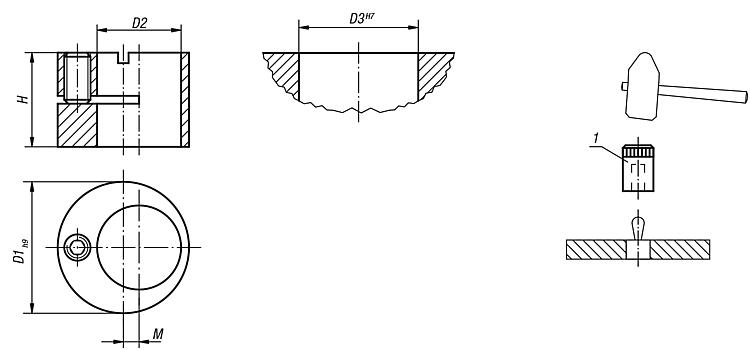

Drawings (total overview)

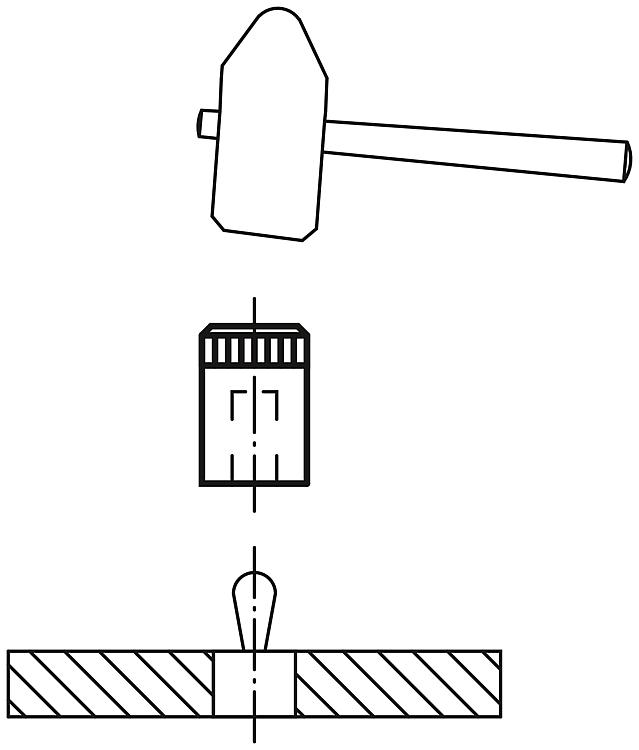

Assembly tools for lateral spring plungers

More information

Drawings

Assembly tools for lateral spring plungers

Item selection/filter

Order No.	Item	Suitable for lateral spring plungers with D =	Price
03330-03	Assembly tool	6	on request
03330-05	Assembly tool	10	on request
03330-08	Assembly tool	12	on request
03330-10	Assembly tool	16	on request

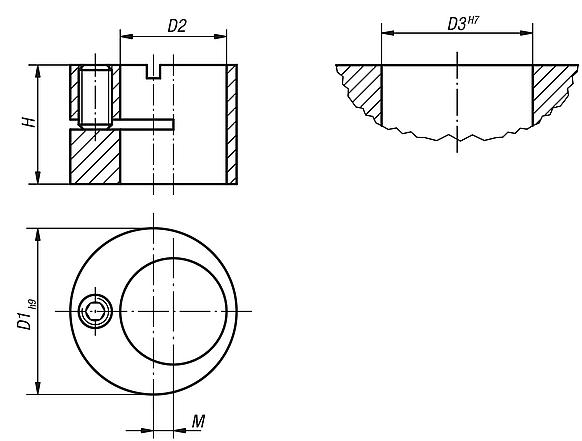

Eccentric bushes for lateral spring plungers

More information

Drawings

Eccentric bushes for lateral spring plungers

Item selection/filter

Order No.	Item	D1	D2	D3	D4	H	M	Suitable for lateral spring plungers with D =	Price
03330-120	Holder	12	6	12	6,3	9,9	2	6	on request
03330-150	Holder	15	8	15	8,3	9,9	2	8	on request
03330-160	Holder	16	10	16	10,3	11,9	2	10	on request
03330-180	Holder	18	12	18	12,3	13,9	2	12	on request
03330-250	Holder	25	16	25	16,3	17,9	3	16	on request
