03078-10Spring sleeves, double, steel or stainless steel |
go back |
|
Item description/product images |
|
|

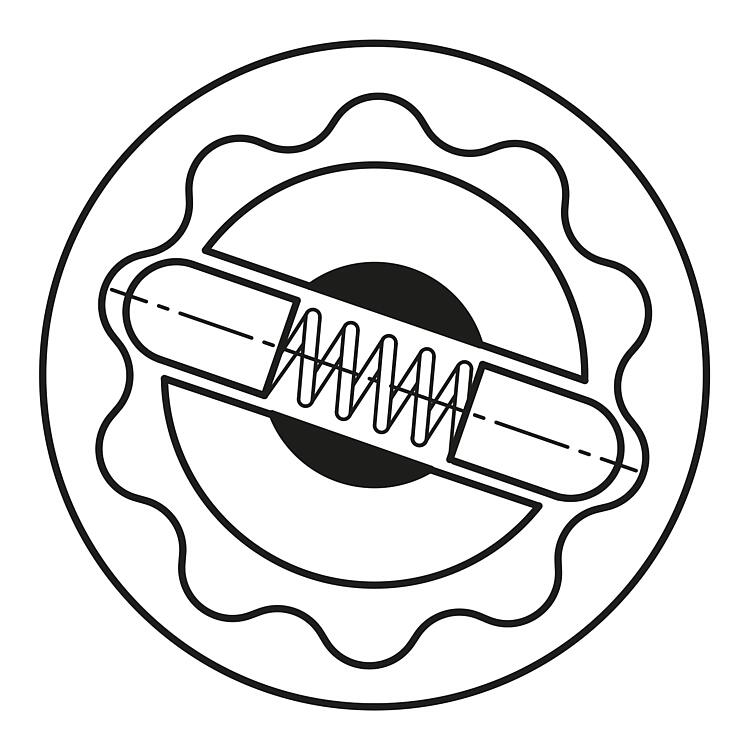

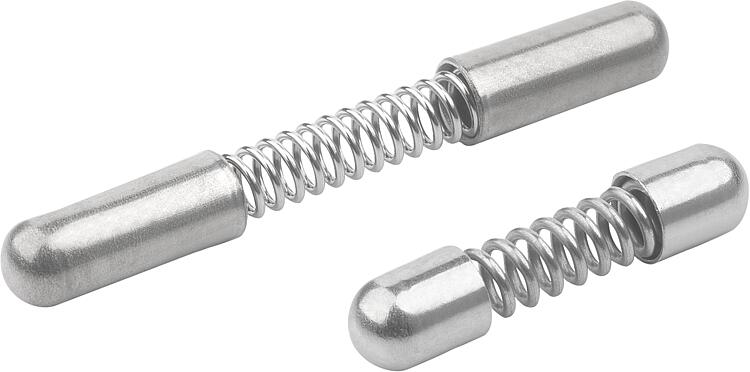

DescriptionProduct description:If components need to be secured in two directions. Double spring sleeves have been specially developed for applications where double-sided indexing operations with a clearly defined force curve are required. Their design enables a symmetrical guide and repeatable indexing with clean haptics and reliable feedback.Material:Version:Sleeve, steel nickel-plated, stainless steel bright.
Spring, bright.Note:Spring sleeves are mainly used as indexing and positioning elements.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Form | D1 | L
| L by F1 | L by F2 | L2 | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | Spring stiffness
N/mm | CAD | Acc. | Price | Order |
|---|

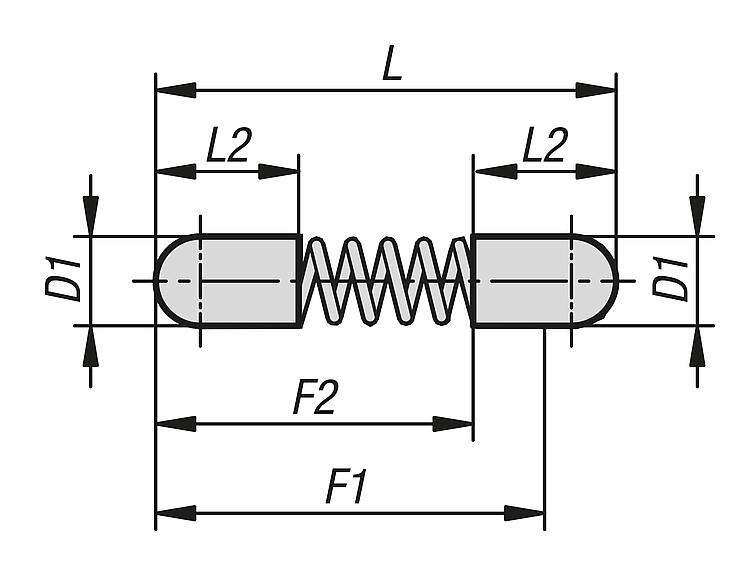

| 03078-10-113416 | steel | A | 3,45 | 16 | 14,5 | 11 | 4,4 | 4,3 | 14,3 | 2,9 |  | | on request | | | 03078-10-123024 | stainless steel | A | 3 | 24 | 22 | 20 | 8 | 1,4 | 2,8 | 0,7 | | | on request | | | 03078-10-123625 | stainless steel | A | 3,62 | 25,5 | 20 | 18,7 | 9 | 22,3 | 27,4 | 3,8 | | | on request | |
