04100Clamp straps gooseneck |
go back |
|
|
DescriptionMaterial:Carbon steel 1.7225Version:Tempered to 1000 N/mm², black oxidised.Note:These clamp straps with long slot are also used with the compact clamp strap module 04200.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

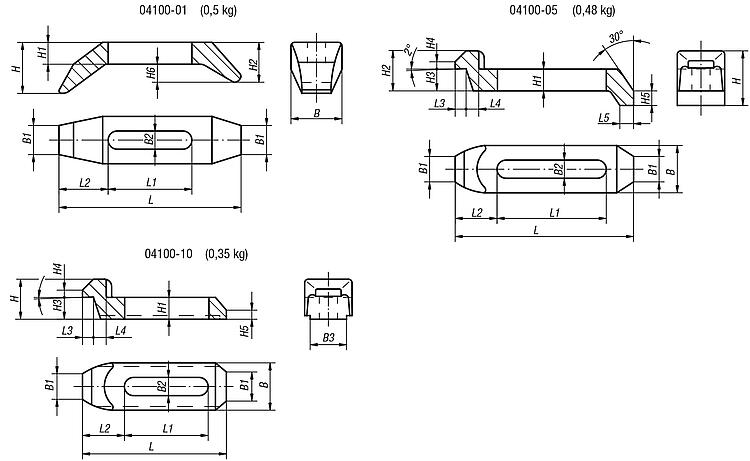

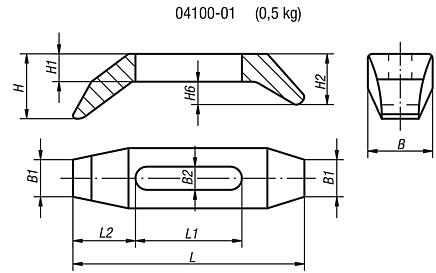

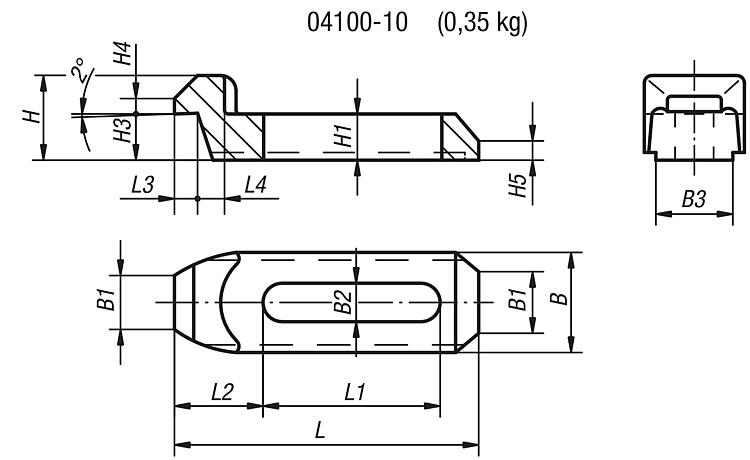

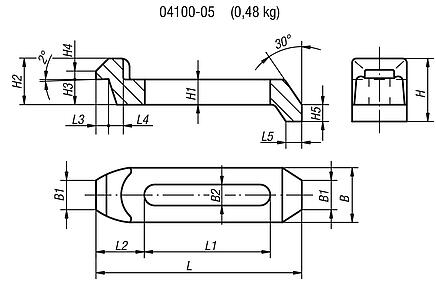

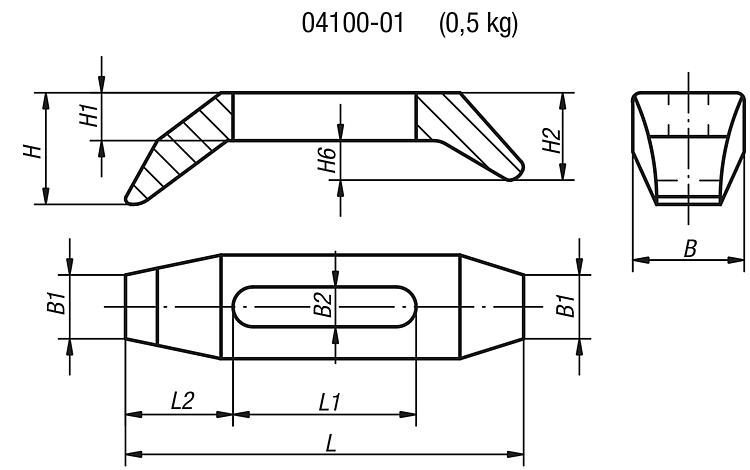

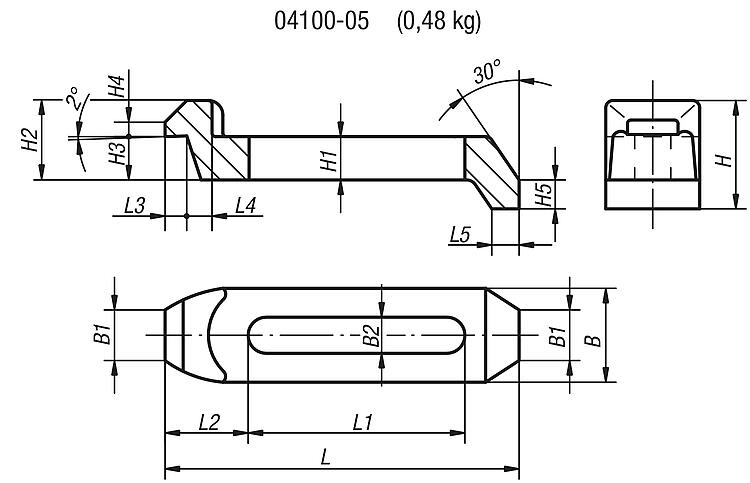

Drawings (total overview) |
Order No.
| Designation | L | L1 | L2 | L3 | L4 | L5 | B | B1 | B2 | B3 | H | H1 | H2 | H3 | H4 | H5 | H6 | CAD | Acc. | Price | Order |
|---|
| 04100-01 | Clamp strap | 140 | 67 | 40 | - | - | - | 36 | 24 | 13 | - | 41 | 16 | 26 | - | - | - | 10 |  | | on request | |
|
Order No.
| Designation | L | L1 | L2 | L3 | L4 | L5 | B | B1 | B2 | B3 | H | H1 | H2 | H3 | H4 | H5 | H6 | CAD | Acc. | Price | Order |
|---|
| 04100-05 | Clamp strap | 135 | 87 | 26 | 8 | 10 | 10 | 36 | 21 | 13 | - | 42 | 16 | 30 | 18 | 5 | 12 | - | | | on request | |
|
Order No.
| Designation | L | L1 | L2 | L3 | L4 | L5 | B | B1 | B2 | B3 | H | H1 | H2 | H3 | H4 | H5 | H6 | CAD | Acc. | Price | Order |
|---|
| 04100-10 | Clamp strap | 110 | 67 | 25 | 8 | 9 | - | 36 | 21 | 13 | 29,5 | 27 | 16 | - | 15 | 5 | 7 | - | | | on request | |
|
