05528

Catch plate for latches with draw bail

go back

Products
- Product overview
  - Flexible standard component system
    - Toggle clamps Pneumatic clamps Accessories for clamps Latches Quarter-turn locks
      - Latches
        Catch plate for latches with draw bail

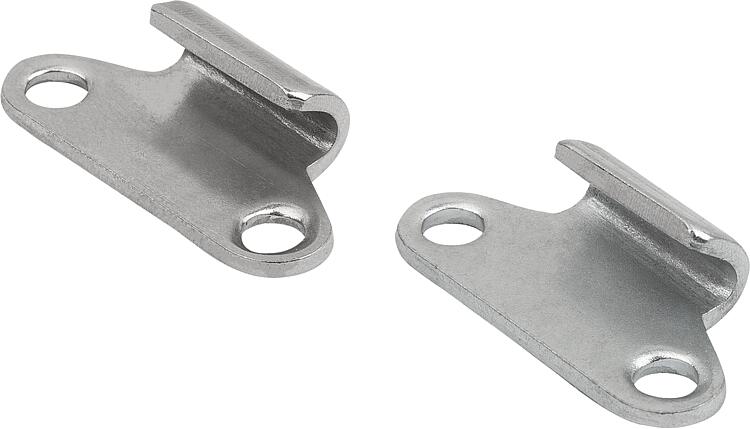

Item description/product images

DescriptionMaterial:Version:Steel zinc-plated.
Stainless steel electropolished.Accessory:Latch 05528.
Latch 05528-05.
Latch 05528-10.
Latch 05529.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05528 Catch plate for latches with draw bail

134 kB

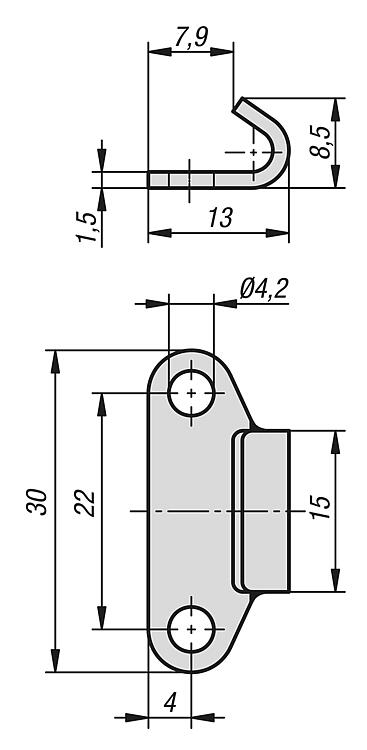

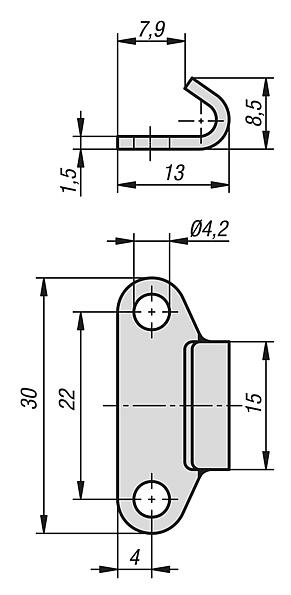

Drawings

Item selection/filter

Order No.	Main material	for Art. No.	CAD	Acc.	Price	Order
05528-9142131	steel	05528,05528-05,05528-10,05529			on request
05528-9142132	stainless steel	05528,05528-05,05528-10,05529			on request
