05570Tongues for quarter-turn locks without stop, steel |
go back |
|

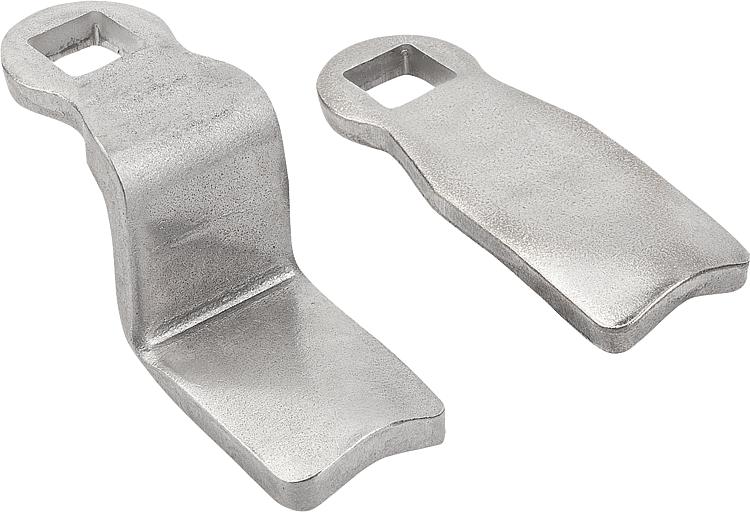

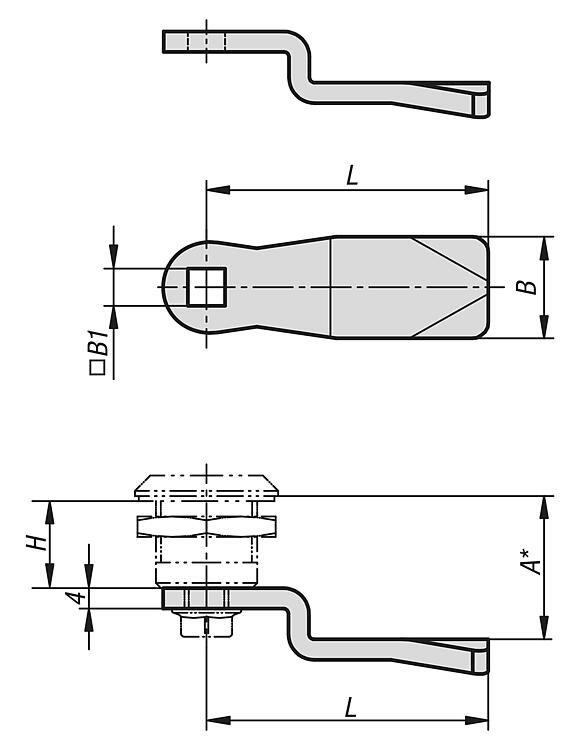

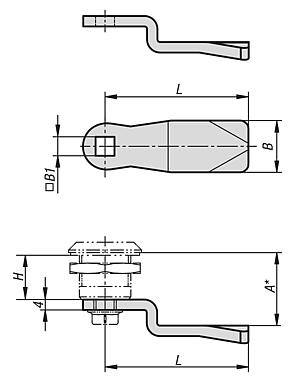

Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:A* in mm for housing length H=18, H=26.1 or 35.5 mm.Accessory:Quarter-turn locks 05566.
Quarter-turn locks with wing grip 05571.
Compression latches 05574.
Compression latches with adjustable tongue height 05575.
Quarter-turn lock zinc, for fire services, DIN 14925 05578-10. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | Version 2 | B | B1 | A at H=18 | A at H=26.1 | A at H=35.5 | L
| Suitable for
| CAD | Acc. | Price | Order |
|---|
| 05570-145X040 | without stop | offset upwards | 19,5 | 8,1 | 4 | 12,1 | 21,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 |  | | on request | | | 05570-145X060 | without stop | offset upwards | 19,5 | 8,1 | 6 | 14,1 | 23,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X080 | without stop | offset upwards | 19,5 | 8,1 | 8 | 16,1 | 25,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X100 | without stop | offset upwards | 19,5 | 8,1 | 10 | 18,1 | 27,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X120 | without stop | offset upwards | 19,5 | 8,1 | 12 | 20,1 | 29,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X140 | without stop | offset upwards | 19,5 | 8,1 | 14 | 22,1 | 31,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X160 | without stop | offset upwards | 19,5 | 8,1 | 16 | 24,1 | 33,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X180 | without stop | straight | 19,5 | 8,1 | 18 | 26,1 | 35,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X200 | without stop | offset downwards | 19,5 | 8,1 | 20 | 28,1 | 37,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X220 | without stop | offset downwards | 19,5 | 8,1 | 22 | 30,1 | 39,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X240 | without stop | offset downwards | 19,5 | 8,1 | 24 | 32,1 | 41,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X260 | without stop | offset downwards | 19,5 | 8,1 | 26 | 34,1 | 43,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X280 | without stop | offset downwards | 19,5 | 8,1 | 28 | 36,1 | 45,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X300 | without stop | offset downwards | 19,5 | 8,1 | 30 | 38,1 | 47,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X320 | without stop | offset downwards | 19,5 | 8,1 | 32 | 40,1 | 49,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X340 | without stop | offset downwards | 19,5 | 8,1 | 34 | 42,1 | 51,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X360 | without stop | offset downwards | 19,5 | 8,1 | 36 | 44,1 | 53,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X380 | without stop | offset downwards | 19,5 | 8,1 | 38 | 46,1 | 55,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X400 | without stop | offset downwards | 19,5 | 8,1 | 40 | 48,1 | 57,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X420 | without stop | offset downwards | 19,5 | 8,1 | 42 | 50,1 | 59,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X440 | without stop | offset downwards | 19,5 | 8,1 | 44 | 52,1 | 61,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X460 | without stop | offset downwards | 19,5 | 8,1 | 46 | 54,1 | 63,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X480 | without stop | offset downwards | 19,5 | 8,1 | 48 | 56,1 | 65,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-145X500 | without stop | offset downwards | 19,5 | 8,1 | 50 | 58,1 | 67,5 | 45 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-135X160 | without stop | offset upwards | 19,5 | 8,1 | 16 | 24,1 | 33,5 | 35 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-135X180 | without stop | straight | 19,5 | 8,1 | 18 | 26,1 | 35,5 | 35 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-135X200 | without stop | offset downwards | 19,5 | 8,1 | 20 | 28,1 | 37,5 | 35 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-135X220 | without stop | offset downwards | 19,5 | 8,1 | 22 | 30,1 | 39,5 | 35 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | | | 05570-135X240 | without stop | offset downwards | 19,5 | 8,1 | 24 | 32,1 | 41,5 | 35 | 05578-10, 05574, 05575, 05566, 05571 | | | on request | |
