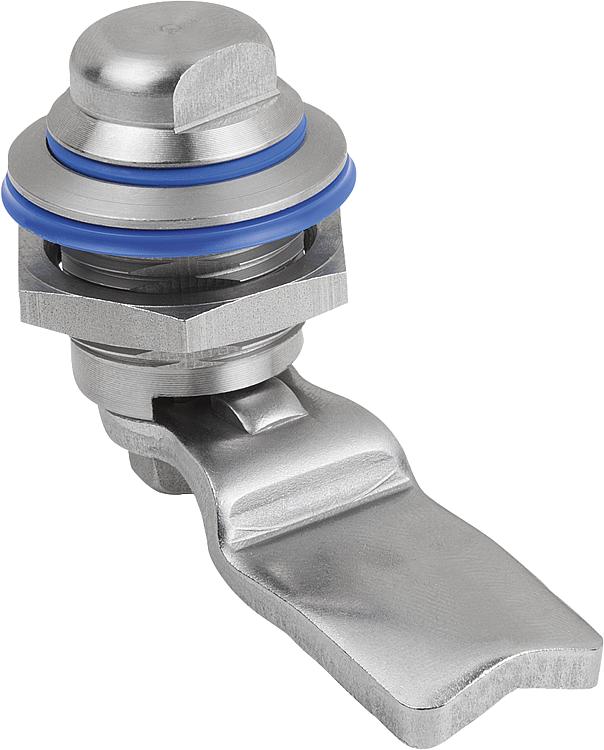

05595Quarter-turn locks, stainless steel for sterile areas |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4305.Version:Bright.Note:Stainless steel quarter-turn lock with 13 mm AF actuator for applications with hygienic requirements as per EN ISO 14159, EN 1672-2:2009*. Dust and waterproof as per IP69K. The rounded form and polished surfaces together with the material used make these locks insensitive to cleaning materials and resistant to dirt. The seal between the quarter-turn lock and the door is made using the captive PUR foam seal on the underside of the quarter-turn lock housing.
Please order required tongue version separately. Every tongue can be combined with this housing.

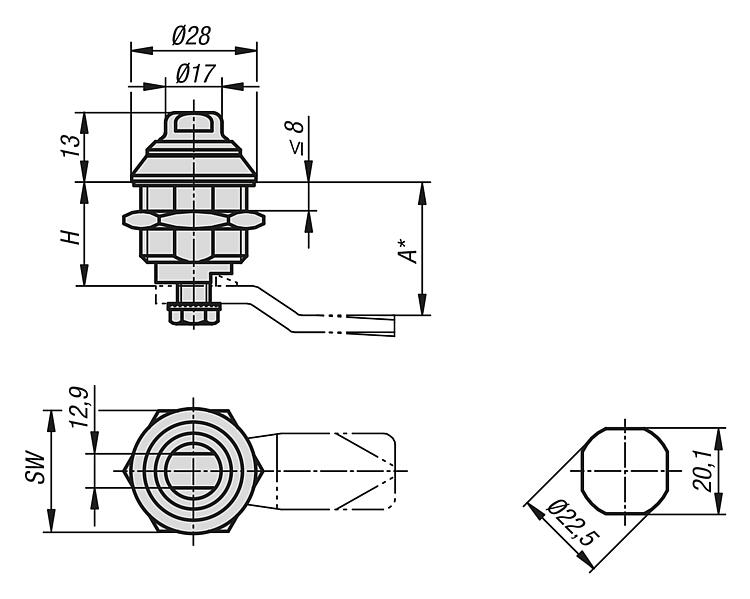

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Key 05586-04.
Tongue for stainless steel quarter-turn lock 05569.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Actuation | H
| SW | CAD | Acc. | Price | Order |
|---|
| 05595-60186 | double flat | 18 | 27 |  | | on request | |
