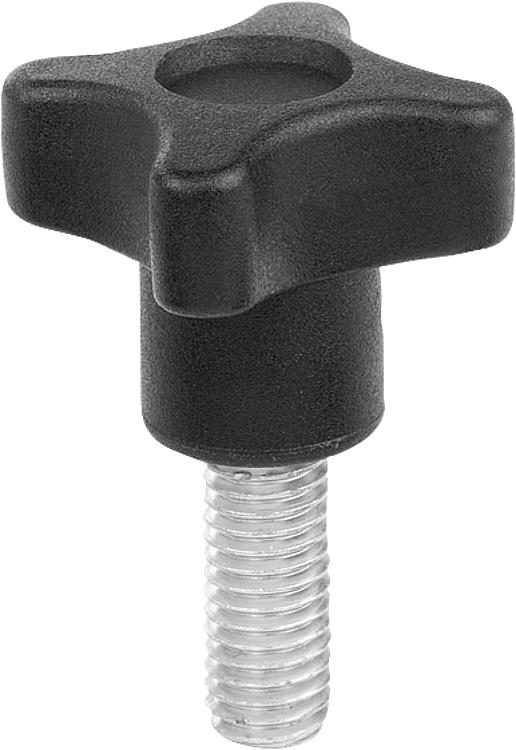

06175_AG Palm grips with external thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Fibreglass reinforced thermoplastic.
Screw steel.Version:Grip, black.
Screw electro zinc-plated.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form
| D | D1 | D2 | D6 | H | H3 | T1 | L | CAD | Acc. | Price | Order |
|---|
| 06175-43205X16 | L | M5 | 32 | 15 | 11 | 23 | 11 | 1,5 | 16 |  | | on request | | | 06175-43205X20 | L | M5 | 32 | 15 | 11 | 23 | 11 | 1,5 | 20 | | | on request | | | 06175-43206X16 | L | M6 | 32 | 15 | 11 | 23 | 11 | 1,5 | 16 | | | on request | | | 06175-43206X20 | L | M6 | 32 | 15 | 11 | 23 | 11 | 1,5 | 20 | | | on request | | | 06175-43206X30 | L | M6 | 32 | 15 | 11 | 23 | 11 | 1,5 | 30 | | | on request | | | 06175-43208X16 | L | M8 | 32 | 15 | 11 | 23 | 11 | 1,5 | 16 | | | on request | | | 06175-43208X20 | L | M8 | 32 | 15 | 11 | 23 | 11 | 1,5 | 20 | | | on request | | | 06175-43208X30 | L | M8 | 32 | 15 | 11 | 23 | 11 | 1,5 | 30 | | | on request | | | 06175-43208X40 | L | M8 | 32 | 15 | 11 | 23 | 11 | 1,5 | 40 | | | on request | | | 06175-44006X20 | L | M6 | 40 | 15,7 | 12 | 24,5 | 12,5 | 1 | 20 | | | on request | | | 06175-44006X30 | L | M6 | 40 | 15,7 | 12 | 24,5 | 12,5 | 1 | 30 | | | on request | | | 06175-44008X20 | L | M8 | 40 | 15,7 | 12 | 24,5 | 12,5 | 1 | 20 | | | on request | | | 06175-44008X30 | L | M8 | 40 | 15,7 | 12 | 24,5 | 12,5 | 1 | 30 | | | on request | | | 06175-44008X40 | L | M8 | 40 | 15,7 | 12 | 24,5 | 12,5 | 1 | 40 | | | on request | | | 06175-44008X50 | L | M8 | 40 | 15,7 | 12 | 24,5 | 12,5 | 1 | 50 | | | on request | | | 06175-45008X20 | L | M8 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 20 | | | on request | | | 06175-45008X30 | L | M8 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 30 | | | on request | | | 06175-45008X40 | L | M8 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 40 | | | on request | | | 06175-45010X20 | L | M10 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 20 | | | on request | | | 06175-45010X30 | L | M10 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 30 | | | on request | | | 06175-45010X40 | L | M10 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 40 | | | on request | | | 06175-45010X50 | L | M10 | 50 | 20 | 14,5 | 29 | 15 | 1,5 | 50 | | | on request | | | 06175-46010X20 | L | M10 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 20 | | | on request | | | 06175-46010X30 | L | M10 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 30 | | | on request | | | 06175-46010X40 | L | M10 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 40 | | | on request | | | 06175-46010X50 | L | M10 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 50 | | | on request | | | 06175-46012X20 | L | M12 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 20 | | | on request | | | 06175-46012X30 | L | M12 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 30 | | | on request | | | 06175-46012X40 | L | M12 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 40 | | | on request | | | 06175-46012X50 | L | M12 | 60 | 24 | 18 | 34 | 18,5 | 1,5 | 50 | | | on request | |
