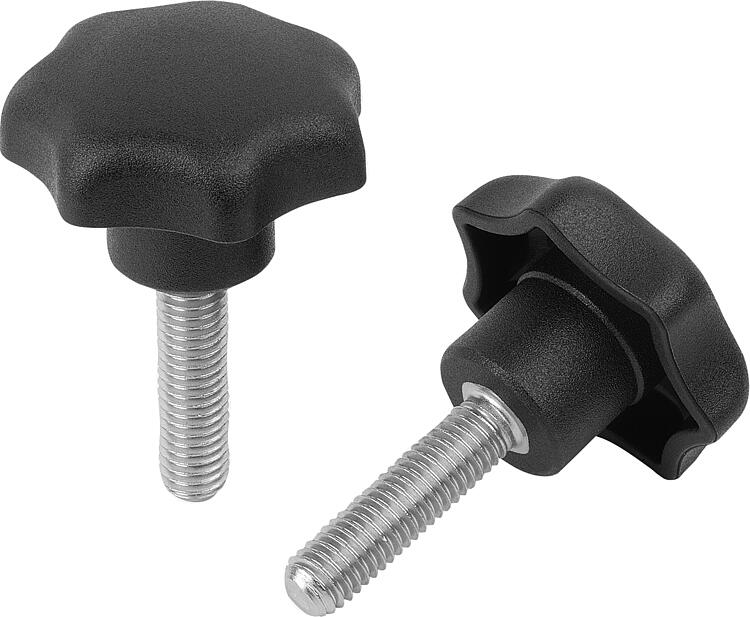

        Star grips DIN 6336, plastic, steel parts stainless steel

Item description/product images

DescriptionMaterial:Version:Threaded pin bright.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06212-20 Star grips DIN 6336, plastic, steel parts stainless steel

204 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	L	Thread type	Price
06212-20-42505X10	L	M5	25	12	16	8	10	external thread	on request
06212-20-42505X15	L	M5	25	12	16	8	15	external thread	on request
06212-20-42505X20	L	M5	25	12	16	8	20	external thread	on request
06212-20-42505X25	L	M5	25	12	16	8	25	external thread	on request
06212-20-42505X30	L	M5	25	12	16	8	30	external thread	on request
06212-20-42505X40	L	M5	25	12	16	8	40	external thread	on request
06212-20-42506X10	L	M6	25	12	16	8	10	external thread	on request
06212-20-42506X15	L	M6	25	12	16	8	15	external thread	on request
06212-20-42506X20	L	M6	25	12	16	8	20	external thread	on request
06212-20-42506X25	L	M6	25	12	16	8	25	external thread	on request
06212-20-42506X30	L	M6	25	12	16	8	30	external thread	on request
06212-20-42506X40	L	M6	25	12	16	8	40	external thread	on request
06212-20-43206X10	L	M6	32	14	20	10	10	external thread	on request
06212-20-43206X15	L	M6	32	14	20	10	15	external thread	on request
06212-20-43206X20	L	M6	32	14	20	10	20	external thread	on request
06212-20-43206X25	L	M6	32	14	20	10	25	external thread	on request
06212-20-43206X30	L	M6	32	14	20	10	30	external thread	on request
06212-20-43206X40	L	M6	32	14	20	10	40	external thread	on request
06212-20-43208X15	L	M8	32	14	20	10	15	external thread	on request
06212-20-43208X20	L	M8	32	14	20	10	20	external thread	on request
06212-20-43208X25	L	M8	32	14	20	10	25	external thread	on request
06212-20-43208X30	L	M8	32	14	20	10	30	external thread	on request
06212-20-43208X40	L	M8	32	14	20	10	40	external thread	on request
06212-20-43208X45	L	M8	32	14	20	10	45	external thread	on request
06212-20-43208X50	L	M8	32	14	20	10	50	external thread	on request
06212-20-43208X60	L	M8	32	14	20	10	60	external thread	on request
06212-20-44008X15	L	M8	40	18	25	13	15	external thread	on request
06212-20-44008X20	L	M8	40	18	25	13	20	external thread	on request
06212-20-44008X25	L	M8	40	18	25	13	25	external thread	on request
06212-20-44008X30	L	M8	40	18	25	13	30	external thread	on request
06212-20-44008X40	L	M8	40	18	25	13	40	external thread	on request
06212-20-44008X45	L	M8	40	18	25	13	45	external thread	on request
06212-20-44008X50	L	M8	40	18	25	13	50	external thread	on request
06212-20-44008X60	L	M8	40	18	25	13	60	external thread	on request
06212-20-44010X20	L	M10	40	18	25	13	20	external thread	on request
06212-20-44010X25	L	M10	40	18	25	13	25	external thread	on request
06212-20-44010X30	L	M10	40	18	25	13	30	external thread	on request
06212-20-44010X40	L	M10	40	18	25	13	40	external thread	on request
06212-20-44010X50	L	M10	40	18	25	13	50	external thread	on request
06212-20-44010X60	L	M10	40	18	25	13	60	external thread	on request
06212-20-45010X20	L	M10	50	22	32	17	20	external thread	on request
06212-20-45010X25	L	M10	50	22	32	17	25	external thread	on request
06212-20-45010X30	L	M10	50	22	32	17	30	external thread	on request
06212-20-45010X40	L	M10	50	22	32	17	40	external thread	on request
06212-20-45010X50	L	M10	50	22	32	17	50	external thread	on request
06212-20-45010X60	L	M10	50	22	32	17	60	external thread	on request
06212-20-45012X30	L	M12	50	22	32	17	30	external thread	on request
06212-20-45012X40	L	M12	50	22	32	17	40	external thread	on request
06212-20-45012X50	L	M12	50	22	32	17	50	external thread	on request
06212-20-45012X60	L	M12	50	22	32	17	60	external thread	on request
