        Five lobe grips ergonomic

Item description/product images

Show/filter all items

DescriptionMaterial:Version:Steel trivalent blue passivated.
Stainless steel, bright.Note:The colour combination
black grey RAL 7021 (hard components) and
black grey RAL 7021 (soft components)
are supplied as standard.On request:Other versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06227 Five lobe grips ergonomic

143 kB

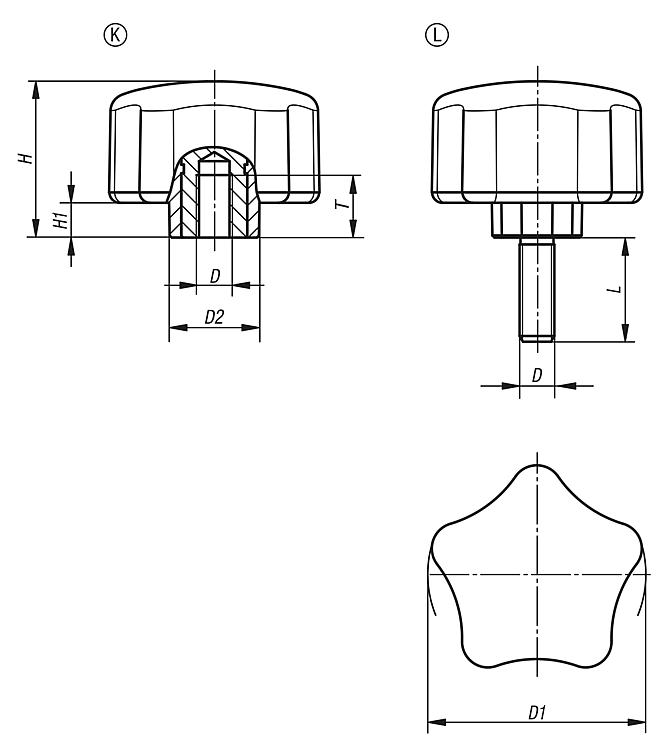

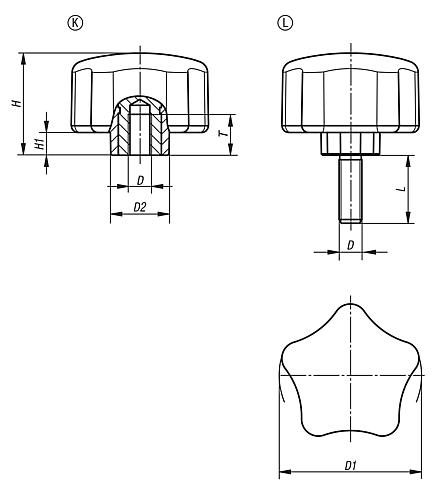

Drawings (total overview)

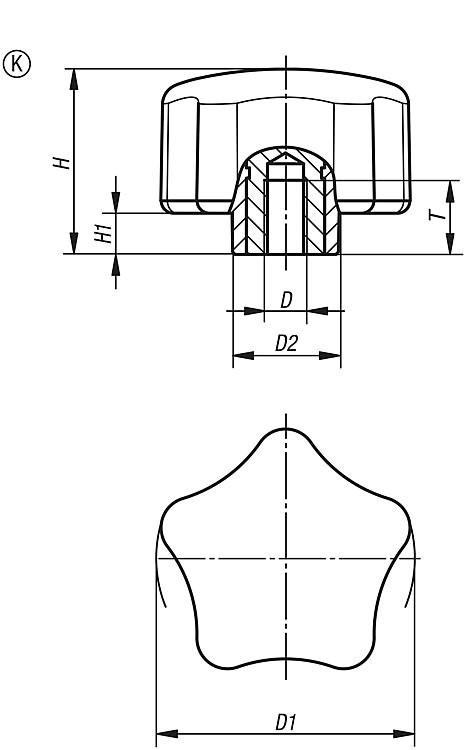

Five lobe grips ergonomic with internal thread

More information

Drawings

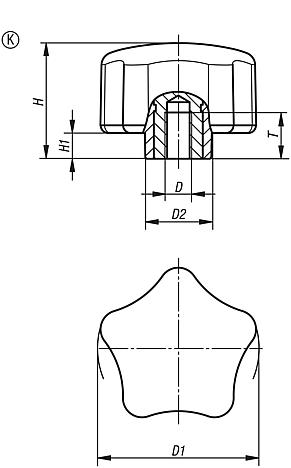

Five lobe grips ergonomic with internal thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	T	Price
06227-6308	K	steel	M8	63	26	45	10	17	on request
06227-6310	K	steel	M10	63	26	45	10	17	on request
06227-06308	K	stainless steel	M8	63	26	45	10	17	on request
06227-06310	K	stainless steel	M10	63	26	45	10	17	on request

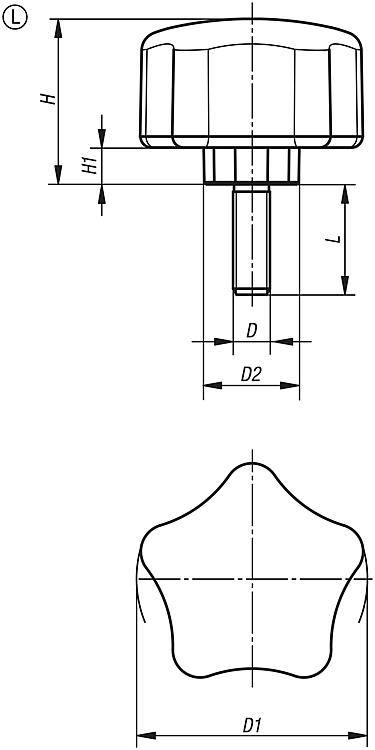

Five lobe grips ergonomic with external thread

More information

Drawings

Five lobe grips ergonomic with external thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	L	Price
06227-6308X20	L	steel	M8	63	26	45	10	20	on request
06227-6308X25	L	steel	M8	63	26	45	10	25	on request
06227-6308X30	L	steel	M8	63	26	45	10	30	on request
06227-6308X40	L	steel	M8	63	26	45	10	40	on request
06227-6310X30	L	steel	M10	63	26	45	10	30	on request
06227-6310X50	L	steel	M10	63	26	45	10	50	on request
06227-06308X20	L	stainless steel	M8	63	26	45	10	20	on request
06227-06308X25	L	stainless steel	M8	63	26	45	10	25	on request
06227-06308X40	L	stainless steel	M8	63	26	45	10	40	on request
06227-06310X30	L	stainless steel	M10	63	26	45	10	30	on request
06227-06310X40	L	stainless steel	M10	63	26	45	10	40	on request
