        Triangular grips ergonomic

Item description/product images

Show/filter all items

DescriptionMaterial:Version:Steel trivalent blue passivated.
Stainless steel, bright.Note:The colour combination
black grey RAL 7021 (hard components) and
black grey RAL 7021 (soft components)
are supplied as standard.On request:Other versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06626 Triangular grips ergonomic

142 kB

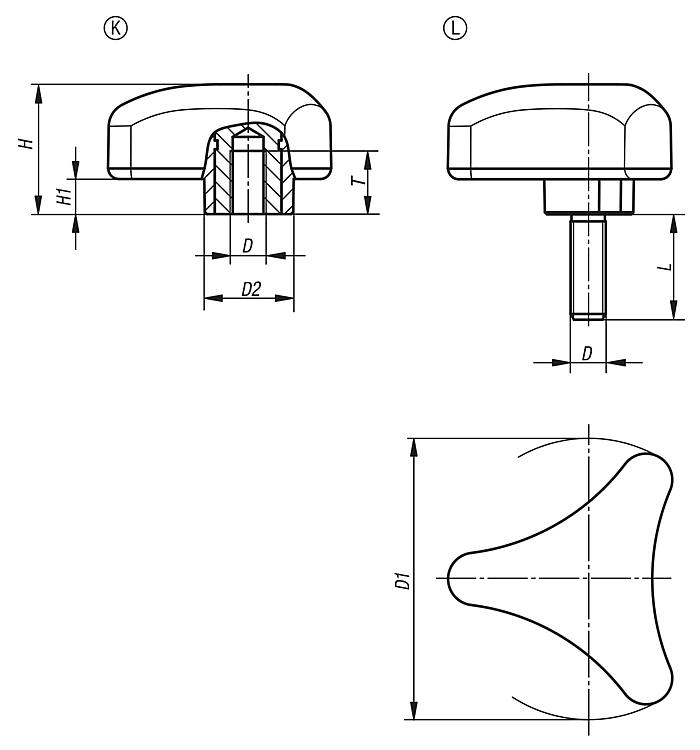

Drawings (total overview)

Triangular grip, ergonomic with internal thread

More information

Drawings

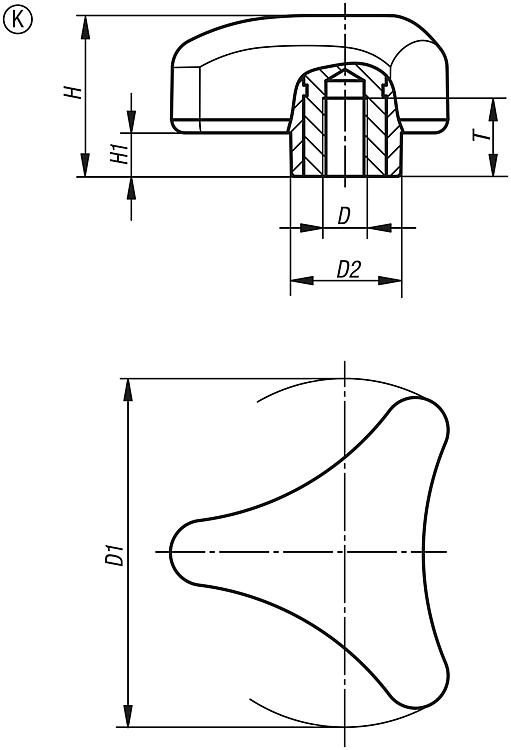

Triangular grip, ergonomic with internal thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	T	Price
06626-8008	K	steel	M8	80	26	37	10	17	on request
06626-8010	K	steel	M10	80	26	37	10	17	on request
06626-8012	K	steel	M12	80	26	37	10	17	on request
06626-08008	K	stainless steel	M8	80	26	37	10	17	on request
06626-08010	K	stainless steel	M10	80	26	37	10	17	on request
06626-08012	K	stainless steel	M12	80	26	37	10	17	on request

Triangular grip ergonomic with external thread

More information

Drawings

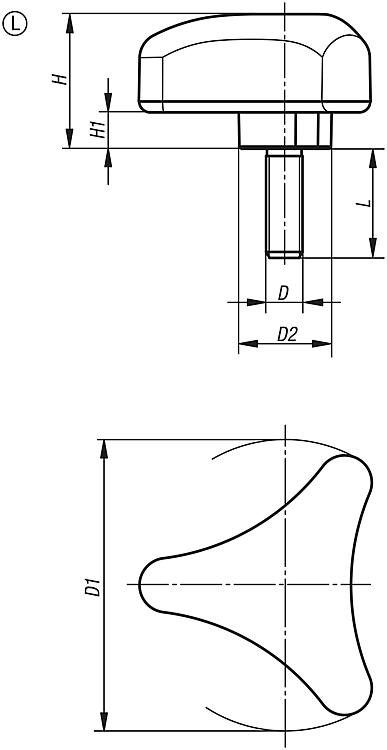

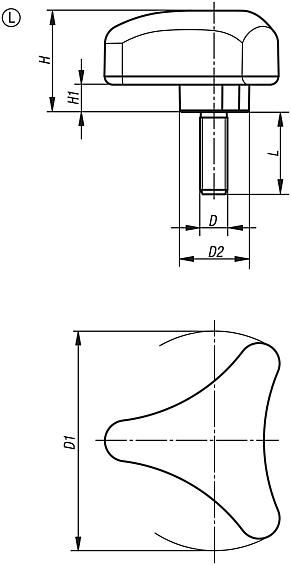

Triangular grip ergonomic with external thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	L	Price
06626-8008X20	L	steel	M8	80	26	37	10	20	on request
06626-8008X25	L	steel	M8	80	26	37	10	25	on request
06626-8008X30	L	steel	M8	80	26	37	10	30	on request
06626-8008X40	L	steel	M8	80	26	37	10	40	on request
06626-8010X30	L	steel	M10	80	26	37	10	30	on request
06626-8010X50	L	steel	M10	80	26	37	10	50	on request
06626-8012X30	L	steel	M12	80	26	37	10	30	on request
06626-8012X40	L	steel	M12	80	26	37	10	40	on request
06626-8012X50	L	steel	M12	80	26	37	10	50	on request
06626-8012X60	L	steel	M12	80	26	37	10	60	on request
06626-08008X20	L	stainless steel	M8	80	26	37	10	20	on request
06626-08008X25	L	stainless steel	M8	80	26	37	10	25	on request
06626-08008X30	L	stainless steel	M8	80	26	37	10	30	on request
06626-08008X40	L	stainless steel	M8	80	26	37	10	40	on request
06626-08010X30	L	stainless steel	M10	80	26	37	10	30	on request
06626-08010X40	L	stainless steel	M10	80	26	37	10	40	on request
06626-08012X30	L	stainless steel	M12	80	26	37	10	30	on request
06626-08012X40	L	stainless steel	M12	80	26	37	10	40	on request
06626-08012X60	L	stainless steel	M12	80	26	37	10	60	on request
