        T-grips metal detectable

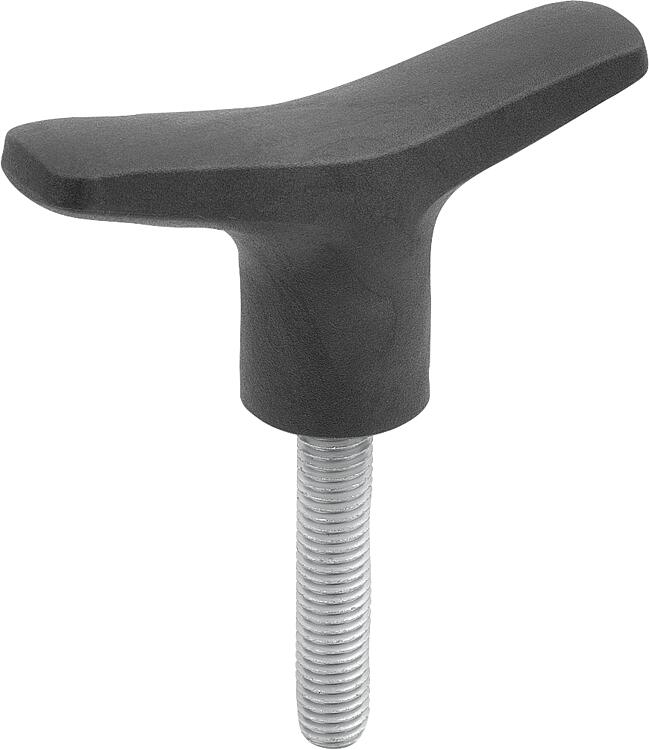

        T-grips metal detectable, external thread

Item description/product images

DescriptionProduct description:The metal detectable operating parts are made from a EU10/2011 and FDA conform plastic granulate.
Due to special additives to the plastic granulate, it is possible for metal detectors (induction technology) to detect plastic particles from a size of 0.027 cm³ (3x3x3 mm). This means that in sensitive production sectors, e.g. foodstuff processing, plastic fragments of metal detectable operating parts can be identified and the risk of production downtimes or complaints are significantly reduced.Material:Version:Thermoplastic black-grey RAL 7021.
Steel parts bright stainless steel.Note:Slight colour deviations or a marbled surface are possible due to the materials used and production process, but do not constitute a defect.Application:- Foodstuff industry
- Pharmaceutical industry
- Packaging industryTemperature range:-20°C to +100°C.Advantages:Metal detectable.
Detections volume ≥ 0.027 cm³.
Foodstuff conform material.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06648-06_AG T-grips metal detectable, external thread

162 kB

Drawings

Item selection/filter

Order No.	Form	A	B	D	D3	H	H1	L	Price
06648-06-8512X50	L	85	19,6	M12	24	45	26,5	50	on request
06648-06-6508X40	L	65	14,6	M8	18	37	22,9	40	on request
06648-06-7510X40	L	75	18,4	M10	22	41	25,2	40	on request
06648-06-7510X20	L	75	18,4	M10	22	41	25,2	20	on request
06648-06-7508X20	L	75	18,4	M8	22	41	25,2	20	on request
06648-06-7510X50	L	75	18,4	M10	22	41	25,2	50	on request
06648-06-7508X30	L	75	18,4	M8	22	41	25,2	30	on request
06648-06-6508X30	L	65	14,6	M8	18	37	22,9	30	on request
06648-06-8512X40	L	85	19,6	M12	24	45	26,5	40	on request
06648-06-6506X30	L	65	14,6	M6	18	37	22,9	30	on request
06648-06-6506X20	L	65	14,6	M6	18	37	22,9	20	on request
06648-06-5505X20	L	55	12,6	M5	16	33	21,3	20	on request
06648-06-6506X25	L	65	14,6	M6	18	37	22,9	25	on request
06648-06-6508X20	L	65	14,6	M8	18	37	22,9	20	on request
06648-06-8512X30	L	85	19,6	M12	24	45	26,5	30	on request
06648-06-8510X50	L	85	19,6	M10	24	45	26,5	50	on request
06648-06-7508X40	L	75	18,4	M8	22	41	25,2	40	on request
06648-06-8510X30	L	85	19,6	M10	24	45	26,5	30	on request
06648-06-6508X25	L	65	14,6	M8	18	37	22,9	25	on request
06648-06-8510X40	L	85	19,6	M10	24	45	26,5	40	on request
06648-06-7510X30	L	75	18,4	M10	22	41	25,2	30	on request
06648-06-7508X25	L	75	18,4	M8	22	41	25,2	25	on request
06648-06-5505X15	L	55	12,6	M5	16	33	21,3	15	on request
