        Triangular grips 2K ergonomic

Item description/product images

Show/filter all items

DescriptionMaterial:Version:Steel trivalent blue passivated.
Stainless steel, bright.Note:The colour combinations
graphite black RAL 9011 (hard components) and
black grey RAL 7021 (soft components)
are supplied as standard.

The soft components ensure a non-slip grip of the operating part. The closed design offers sufficient protection against dirt.On request:Further colour combinations.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06710 Triangular grips 2K ergonomic

143 kB

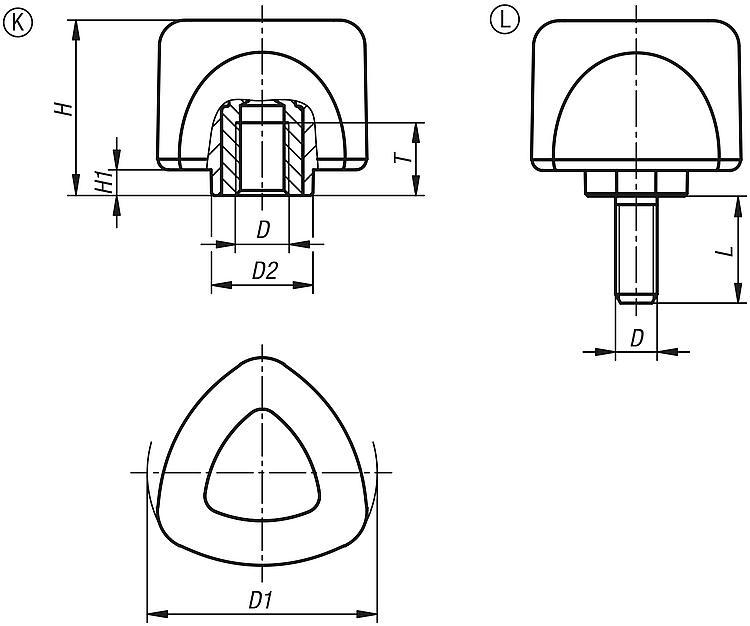

Drawings (total overview)

Triangular grip 2K, ergonomic with internal thread

More information

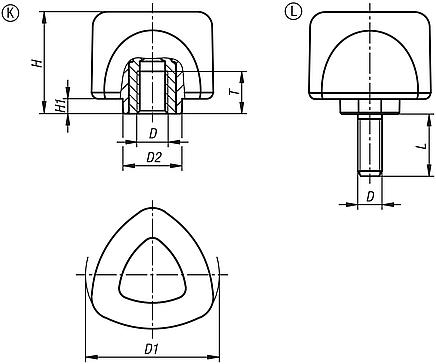

Drawings

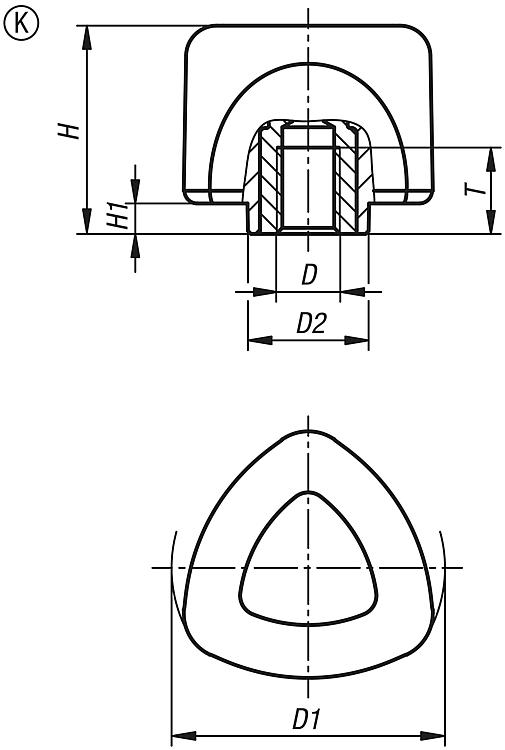

Triangular grip 2K, ergonomic with internal thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	T	Price
06710-5008	K	steel	M8	53,8	23,9	41	6	17	on request
06710-5010	K	steel	M10	53,8	23,9	41	6	17	on request
06710-6308	K	steel	M8	67,7	23,9	36	6	17	on request
06710-6310	K	steel	M10	67,7	23,9	36	6	17	on request
06710-05008	K	stainless steel	M8	53,8	23,9	41	6	17	on request
06710-05010	K	stainless steel	M10	53,8	23,9	41	6	17	on request
06710-06308	K	stainless steel	M8	67,7	23,9	36	6	17	on request
06710-06310	K	stainless steel	M10	67,7	23,9	36	6	17	on request

Triangular grip 2K ergonomic with external thread

More information

Drawings

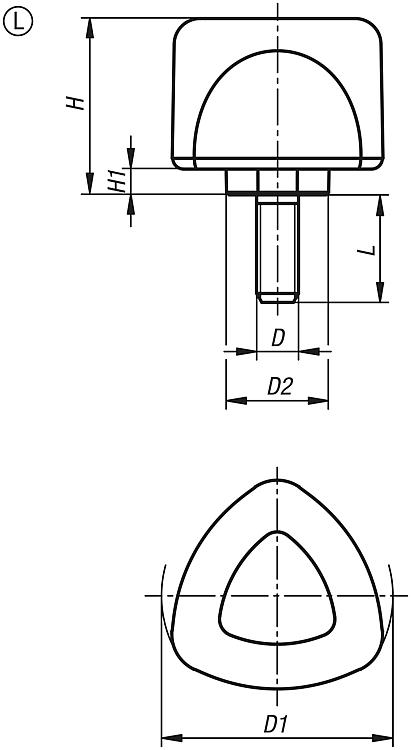

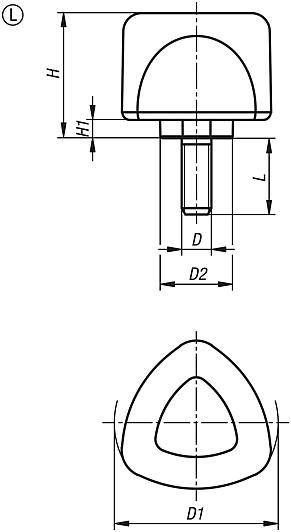

Triangular grip 2K ergonomic with external thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H1	L	Price
06710-5008X20	L	steel	M8	53,8	23,9	41	6	20	on request
06710-5008X25	L	steel	M8	53,8	23,9	41	6	25	on request
06710-5008X30	L	steel	M8	53,8	23,9	41	6	30	on request
06710-5008X40	L	steel	M8	53,8	23,9	41	6	40	on request
06710-5010X20	L	steel	M10	53,8	23,9	41	6	20	on request
06710-5010X25	L	steel	M10	53,8	23,9	41	6	25	on request
06710-5010X30	L	steel	M10	53,8	23,9	41	6	30	on request
06710-5010X40	L	steel	M10	53,8	23,9	41	6	40	on request
06710-6308X20	L	steel	M8	67,7	23,9	36	6	20	on request
06710-6308X25	L	steel	M8	67,7	23,9	36	6	25	on request
06710-6308X30	L	steel	M8	67,7	23,9	36	6	30	on request
06710-6308X40	L	steel	M8	67,7	23,9	36	6	40	on request
06710-6310X20	L	steel	M10	67,7	23,9	36	6	20	on request
06710-6310X25	L	steel	M10	67,7	23,9	36	6	25	on request
06710-6310X30	L	steel	M10	67,7	23,9	36	6	30	on request
06710-6310X40	L	steel	M10	67,7	23,9	36	6	40	on request
06710-05008X20	L	stainless steel	M8	53,8	23,9	41	6	20	on request
06710-05008X25	L	stainless steel	M8	53,8	23,9	41	6	25	on request
06710-05008X30	L	stainless steel	M8	53,8	23,9	41	6	30	on request
06710-05008X40	L	stainless steel	M8	53,8	23,9	41	6	40	on request
06710-05010X20	L	stainless steel	M10	53,8	23,9	41	6	20	on request
06710-05010X25	L	stainless steel	M10	53,8	23,9	41	6	25	on request
06710-05010X30	L	stainless steel	M10	53,8	23,9	41	6	30	on request
06710-05010X40	L	stainless steel	M10	53,8	23,9	41	6	40	on request
06710-06308X20	L	stainless steel	M8	67,7	23,9	36	6	20	on request
06710-06308X25	L	stainless steel	M8	67,7	23,9	36	6	25	on request
06710-06308X30	L	stainless steel	M8	67,7	23,9	36	6	30	on request
06710-06308X40	L	stainless steel	M8	67,7	23,9	36	6	40	on request
06710-06310X20	L	stainless steel	M10	67,7	23,9	36	6	20	on request
06710-06310X25	L	stainless steel	M10	67,7	23,9	36	6	25	on request
06710-06310X30	L	stainless steel	M10	67,7	23,9	36	6	30	on request
06710-06310X40	L	stainless steel	M10	67,7	23,9	36	6	40	on request
