        Star grips

Item description/product images

Show/filter all items

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Tapped bush brass.
Screw steel.Version:Grip, black.
Screw electro zinc-plated.Drawing reference:

Form D: tapped bush, without cap
Form K: tapped bush
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06845 Star grips

148 kB

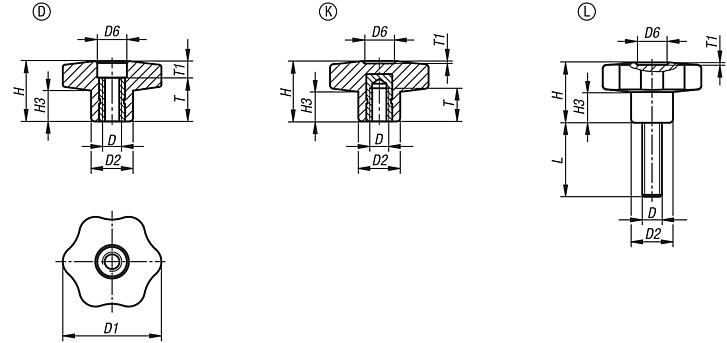

Drawings (total overview)

Star grip, Form D, tapped bush without cap

More information

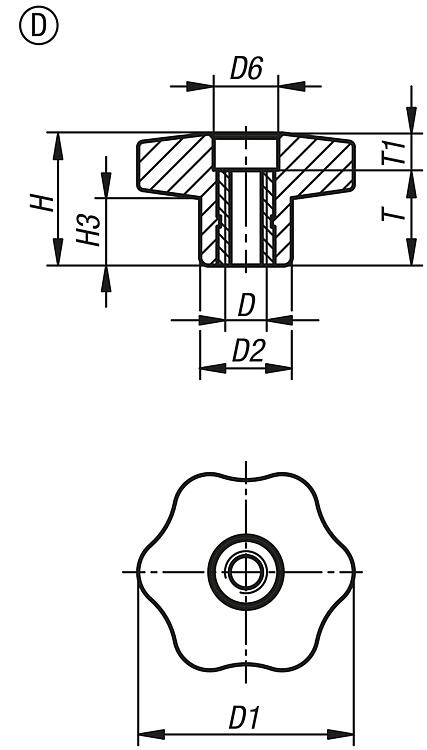

Drawings

Star grip, Form D, tapped bush without cap

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T	T1	Price
06845-53005	D	M5	30	15	11	22	11	18	4	on request
06845-53006	D	M6	30	15	11	22	11	18	4	on request
06845-53008	D	M8	30	15	11	22	11	18	4	on request
06845-54006	D	M6	40	17	12,5	24,5	12,5	18	6	on request
06845-54008	D	M8	40	17	12,5	24,5	12,5	18	6	on request
06845-54010	D	M10	40	17	12,5	24,5	12,5	18	6	on request
06845-55008	D	M8	50	20	14	29	15,5	18	11	on request
06845-55010	D	M10	50	20	14	29	15,5	18	11	on request
06845-55012	D	M12	50	20	14	29	14	18	11	on request
06845-56010	D	M10	60	24	16,5	34	18	18	16	on request
06845-56012	D	M12	60	24	16,5	34	18	18	16	on request

Star grip, Form K, with tapped bush

More information

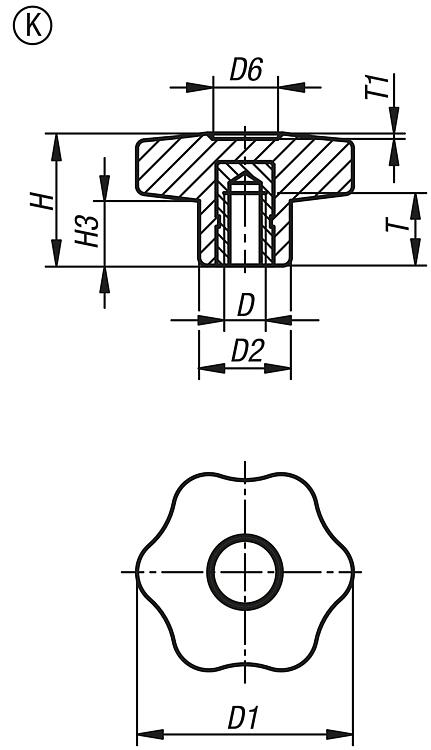

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T	T1	Price
06845-23005	K	M5	30	15	9	22	11	14	1,5	on request
06845-23006	K	M6	30	15	9	22	11	10	1,5	on request
06845-24006	K	M6	40	17	12	24,5	12	16	1	on request
06845-24008	K	M8	40	17	12	24,5	12	14	1	on request
06845-24010	K	M10	40	17	12	24,5	12	14	1	on request
06845-25008	K	M8	50	20	14,5	29	15,5	14	1,5	on request
06845-25010	K	M10	50	20	14,5	29	15,5	14	1,5	on request
06845-25012	K	M12	50	20	14,5	29	15,5	18	1,5	on request
06845-26010	K	M10	60	24	18	34	18	21	1,5	on request
06845-26012	K	M12	60	24	18	34	18	18	1,5	on request

Star grips, Form L, with external thread

More information

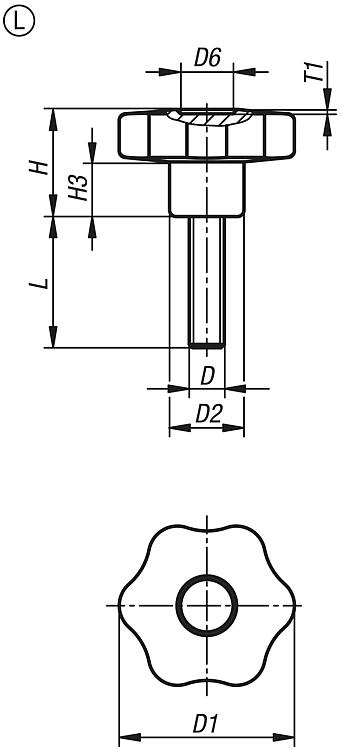

Drawings

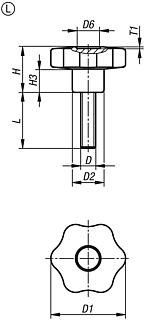

Star grips, Form L, with external thread

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T1	L	Price
06845-43006X16	L	M6	30	15	9	22	11	1,5	16	on request
06845-43006X20	L	M6	30	15	9	22	11	1,5	20	on request
06845-43006X30	L	M6	30	15	9	22	11	1,5	30	on request
06845-43008X16	L	M8	30	15	9	22	11	1,5	16	on request
06845-43008X20	L	M8	30	15	9	22	11	1,5	20	on request
06845-43008X30	L	M8	30	15	9	22	11	1,5	30	on request
06845-43008X40	L	M8	30	15	9	22	11	1,5	40	on request
06845-44006X16	L	M6	40	17	12	24,5	12,5	1	16	on request
06845-44006X20	L	M6	40	17	12	24,5	12,5	1	20	on request
06845-44006X30	L	M6	40	17	12	24,5	12,5	1	30	on request
06845-44006X40	L	M6	40	17	12	24,5	12,5	1	40	on request
06845-44008X20	L	M8	40	17	12	24,5	12,5	1	20	on request
06845-44008X30	L	M8	40	17	12	24,5	12,5	1	30	on request
06845-44008X40	L	M8	40	17	12	24,5	12,5	1	40	on request
06845-44008X50	L	M8	40	17	12	24,5	12,5	1	50	on request
06845-45008X20	L	M8	50	20	14,5	29	15	1,5	20	on request
06845-45008X30	L	M8	50	20	14,5	29	15	1,5	30	on request
06845-45008X40	L	M8	50	20	14,5	29	15	1,5	40	on request
06845-45010X20	L	M10	50	20	14,5	29	15	1,5	20	on request
06845-45010X30	L	M10	50	20	14,5	29	15	1,5	30	on request
06845-45010X40	L	M10	50	20	14,5	29	15	1,5	40	on request
06845-45010X50	L	M10	50	20	14,5	29	15	1,5	50	on request
06845-46010X20	L	M10	60	24	18	34	18	1,5	20	on request
06845-46010X30	L	M10	60	24	18	34	18	1,5	30	on request
06845-46010X40	L	M10	60	24	18	34	18	1,5	40	on request
06845-46010X50	L	M10	60	24	18	34	18	1,5	50	on request
06845-46012X20	L	M12	60	24	18	34	18	1,5	20	on request
06845-46012X30	L	M12	60	24	18	34	18	1,5	30	on request
06845-46012X40	L	M12	60	24	18	34	18	1,5	40	on request
06845-46012X50	L	M12	60	24	18	34	18	1,5	50	on request
