        Knurled screws

Item description/product images

Show/filter all items

DescriptionProduct description:Due to their extremely flat design, these grips can be used in very cramped spaces. The fluting around the edge improves gripping.Material, version:Grip black hard thermoplastic.
Coating black soft thermoplastic.
Tapped bush brass.
Screw electro zinc-plated steel grade 5.8.Note:Knurled screws are available in one grip size with internal and external threads.On request:Other screw sizes, screw lengths, versions and colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06861 Knurled screws

152 kB

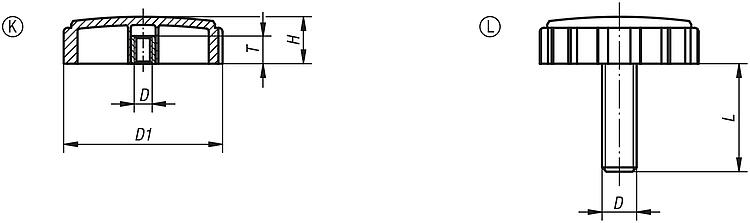

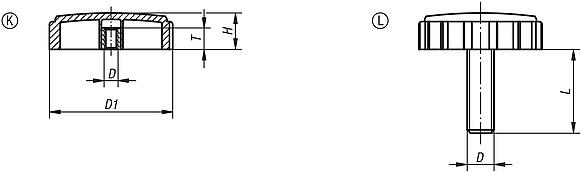

Drawings (total overview)

Knurled screws with internal thread

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	T	Price
06861-5705	K	M5	57,4	17	12,5	on request
06861-5706	K	M6	57,4	17	12,5	on request
06861-5708	K	M8	57,4	17	12,5	on request
06861-5710	K	M10	57,4	17	12,5	on request

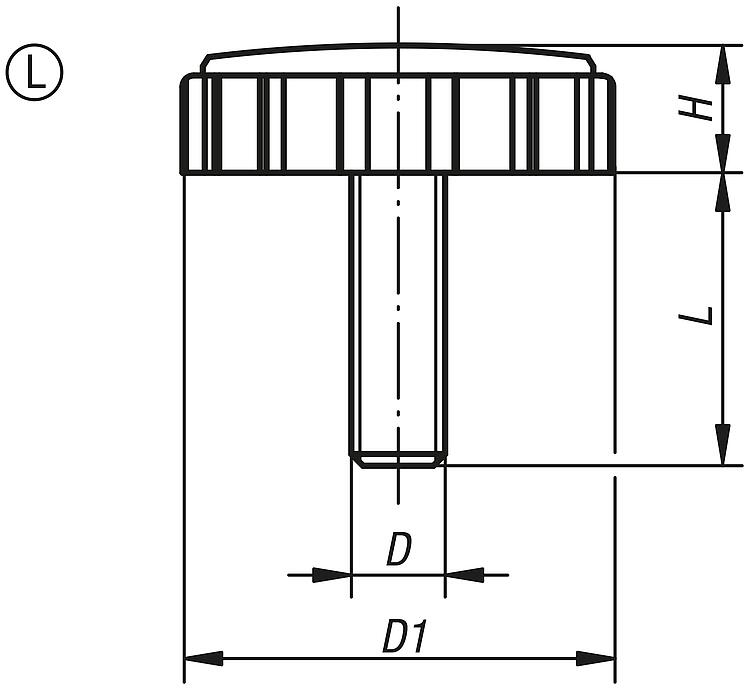

Knurled screws with external thread

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	L	Price
06861-5706X15	L	M6	57,4	17	15	on request
06861-5706X20	L	M6	57,4	17	20	on request
06861-5706X25	L	M6	57,4	17	25	on request
06861-5706X35	L	M6	57,4	17	35	on request
06861-5708X16	L	M8	57,4	17	16	on request
06861-5708X25	L	M8	57,4	17	25	on request
06861-5708X30	L	M8	57,4	17	30	on request
06861-5708X35	L	M8	57,4	17	35	on request
06861-5710X30	L	M10	57,4	17	30	on request
06861-5710X40	L	M10	57,4	17	40	on request
06861-5710X50	L	M10	57,4	17	50	on request
