        Finger grips, plastic, round

Item description/product images

DescriptionMaterial:Thermoplastic.Version:black-grey RAL 7021, pure orange RAL 2004, colza yellow RAL 1021, signal green RAL 6032, traffic blue RAL 5017, traffic red RAL 3020 and light grey RAL 7035.Note:The max. tightening torque is 2 Nm.Assembly:From the rear.Advantages:Fastened using self-tapping screws
Mounted from the rear
Grip in different coloursSupplied withSelf-tapping fastening screws for plastics, L=12 mm are supplied.Drawing reference:

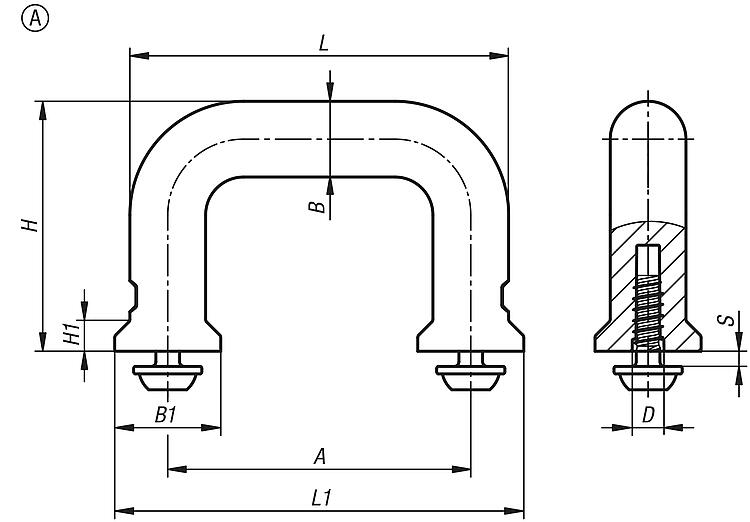

Form A: with collar

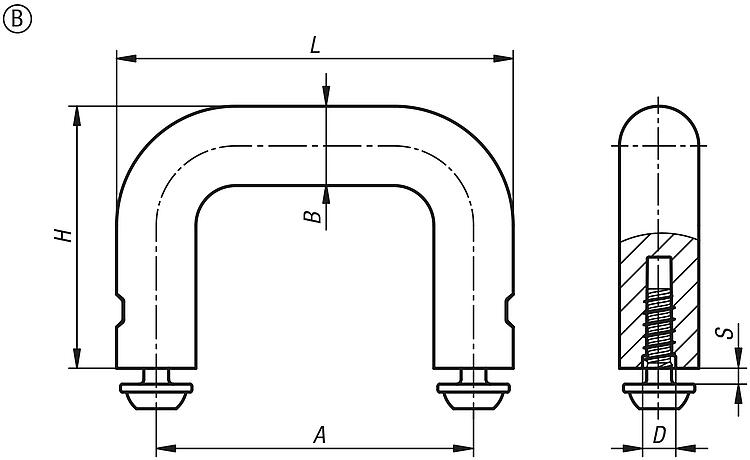

Form B: without collar

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06901-50 Finger grips, plastic, round

126 kB

Drawings (total overview)

Finger grips, plastic, round, Form A, with collar

More information

Drawings

Finger grips, plastic, round, Form A, with collar

Item selection/filter

Order No.	Form	Main colour	A	B	B1	D	H	H1	L	L1	S max.	Load capacity N	Price
06901-50-108030	A	black grey RAL 7021	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-1080302	A	orange RAL 2004	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-10803016	A	colza yellow RAL 1021	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-10803086	A	signal green RAL 6032	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-10803087	A	traffic blue RAL 5017	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-10803084	A	traffic red RAL 3020	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-10803088	A	light grey RAL 7035	30	8	12	4	32	4	38	42	4,5	500	on request
06901-50-108040	A	black grey RAL 7021	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-1080402	A	orange RAL 2004	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-10804016	A	colza yellow RAL 1021	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-10804086	A	signal green RAL 6032	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-10804087	A	traffic blue RAL 5017	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-10804084	A	traffic red RAL 3020	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-10804088	A	light grey RAL 7035	40	8	12	4	32	4	48	52	4,5	500	on request
06901-50-110040	A	black grey RAL 7021	40	10	14	4	33	4	50	54	4,5	500	on request
06901-50-1100402	A	orange RAL 2004	40	10	14	4	33	4	50	54	4,5	500	on request
06901-50-11004016	A	colza yellow RAL 1021	40	10	14	4	33	4	50	54	4,5	500	on request
06901-50-11004086	A	signal green RAL 6032	40	10	14	4	33	4	50	54	4,5	500	on request
06901-50-11004087	A	traffic blue RAL 5017	40	10	14	4	33	4	50	54	4,5	500	on request
06901-50-11004084	A	traffic red RAL 3020	40	10	14	4	33	4	50	54	4,5	500	on request
06901-50-11004088	A	light grey RAL 7035	40	10	14	4	33	4	50	54	4,5	500	on request

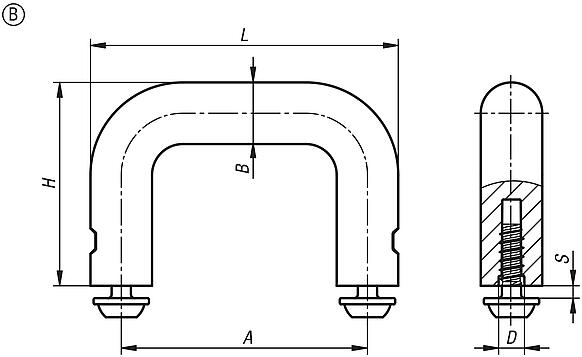

Finger grips, plastic, round, Form B, without collar

More information

Drawings

Finger grips, plastic, round, Form B, without collar

Item selection/filter

Order No.	Form	Main colour	A	B	D	H	L	S max.	Load capacity N	Price
06901-50-208030	B	black grey RAL 7021	30	8	4	32	38	4,5	500	on request
06901-50-2080302	B	orange RAL 2004	30	8	4	32	38	4,5	500	on request
06901-50-20803016	B	colza yellow RAL 1021	30	8	4	32	38	4,5	500	on request
06901-50-20803086	B	signal green RAL 6032	30	8	4	32	38	4,5	500	on request
06901-50-20803087	B	traffic blue RAL 5017	30	8	4	32	38	4,5	500	on request
06901-50-20803084	B	traffic red RAL 3020	30	8	4	32	38	4,5	500	on request
06901-50-20803088	B	light grey RAL 7035	30	8	4	32	38	4,5	500	on request
06901-50-208040	B	black grey RAL 7021	40	8	4	32	48	4,5	500	on request
06901-50-2080402	B	orange RAL 2004	40	8	4	32	48	4,5	500	on request
06901-50-20804016	B	colza yellow RAL 1021	40	8	4	32	48	4,5	500	on request
06901-50-20804086	B	signal green RAL 6032	40	8	4	32	48	4,5	500	on request
06901-50-20804087	B	traffic blue RAL 5017	40	8	4	32	48	4,5	500	on request
06901-50-20804084	B	traffic red RAL 3020	40	8	4	32	48	4,5	500	on request
06901-50-20804088	B	light grey RAL 7035	40	8	4	32	48	4,5	500	on request
06901-50-210040	B	black grey RAL 7021	40	10	4	33	50	4,5	500	on request
06901-50-2100402	B	orange RAL 2004	40	10	4	33	50	4,5	500	on request
06901-50-21004016	B	colza yellow RAL 1021	40	10	4	33	50	4,5	500	on request
06901-50-21004086	B	signal green RAL 6032	40	10	4	33	50	4,5	500	on request
06901-50-21004087	B	traffic blue RAL 5017	40	10	4	33	50	4,5	500	on request
06901-50-21004084	B	traffic red RAL 3020	40	10	4	33	50	4,5	500	on request
06901-50-21004088	B	light grey RAL 7035	40	10	4	33	50	4,5	500	on request
