        Hammer-head screws for C-profile mounting rails System 28

Item description/product images

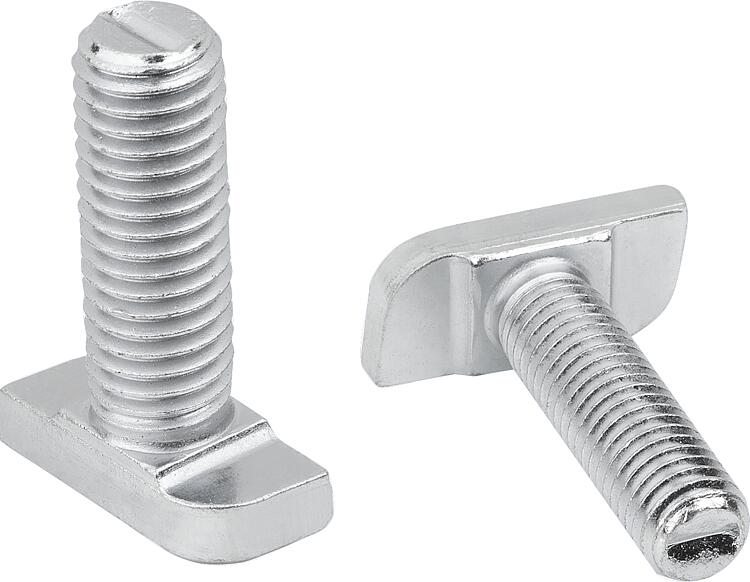

DescriptionProduct description:The hammer-head screws have been specially developed for use with mounting rails.Material:Steel.Version:electro zinc-plated.

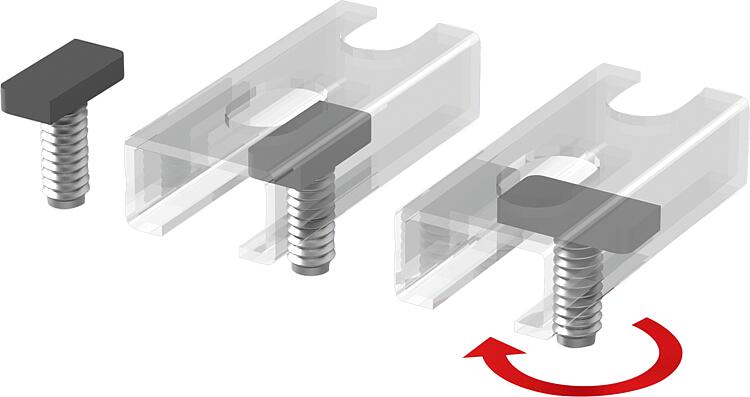

Grade 8.8Note:The hammer-head screw can be inserted into the mounting rail at any point. By turning it through 90°, the rounded head of the screw grips securely in the slot and prevents it from twisting. The hammer-head screw can be slid along the slot of the mounting rail as required, permitting flexible positioning. A slot in the end of the thread indicates the correct alignment of the screw head in the mounting rail.

The large contact area of the screw head in the mounting rail ensures high stability and load-bearing capacity.

Suitable for System 28 mounting profiles (28/15 and 28/28).Assembly:Observe the profile permissible load As a rule, the permissible loads for mounting rails are lower than those for screws.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07094-15 Hammer-head screws for C-profile mounting rails System 28

210 kB

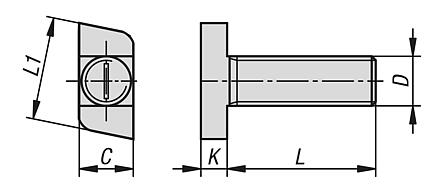

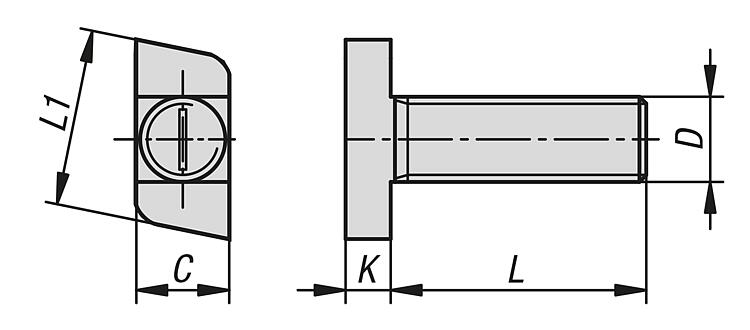

Drawings

Item selection/filter

Order No.	C	D	K	L	L1	Recommended tightening torque Nm	max. recommended load by tension kN	Price
07094-15-11882806X15	10	M6	4	15	22	10	4,6	on request
07094-15-11882806X20	10	M6	4	20	22	10	4,6	on request
07094-15-11882806X30	10	M6	4	30	22	10	4,6	on request
07094-15-11882806X40	10	M6	4	40	22	10	4,6	on request
07094-15-11882806X50	10	M6	4	50	22	10	4,6	on request
07094-15-11882806X60	10	M6	4	60	22	10	4,6	on request
07094-15-11882808X100	10	M8	4	100	22	24	8,4	on request
07094-15-11882808X15	10	M8	4	15	22	24	8,4	on request
07094-15-11882808X20	10	M8	4	20	22	24	8,4	on request
07094-15-11882808X30	10	M8	4	30	22	24	8,4	on request
07094-15-11882808X40	10	M8	4	40	22	24	8,4	on request
07094-15-11882808X50	10	M8	4	50	22	24	8,4	on request
07094-15-11882808X60	10	M8	4	60	22	24	8,4	on request
07094-15-11882808X80	10	M8	4	80	22	24	8,4	on request
07094-15-11882810X100	10	M10	5	100	22	48	13,2	on request
07094-15-11882810X15	10	M10	5	15	22	48	13,2	on request
07094-15-11882810X20	10	M10	5	20	22	48	13,2	on request
07094-15-11882810X30	10	M10	5	30	22	48	13,2	on request
07094-15-11882810X40	10	M10	5	40	22	48	13,2	on request
07094-15-11882810X50	10	M10	5	50	22	48	13,2	on request
07094-15-11882810X60	10	M10	5	60	22	48	13,2	on request
07094-15-11882810X80	10	M10	5	80	22	48	13,2	on request
07094-15-11882812X100	11,4	M12	6,6	100	22	70	19,3	on request
07094-15-11882812X20	11,4	M12	6,6	20	22	70	19,3	on request
07094-15-11882812X30	11,4	M12	6,6	30	22	70	19,3	on request
07094-15-11882812X40	11,4	M12	6,6	40	22	70	19,3	on request
07094-15-11882812X50	11,4	M12	6,6	50	22	70	19,3	on request
07094-15-11882812X60	11,4	M12	6,6	60	22	70	19,3	on request
07094-15-11882812X80	11,4	M12	6,6	80	22	70	19,3	on request
