Hammer-head screws for C-profile mounting rails System 41

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Hammer-head screws for C-profile mounting rails System 41

Item description/product images

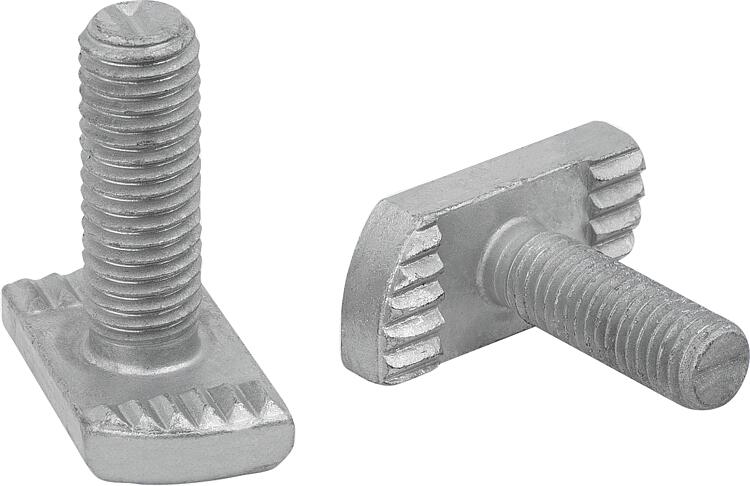

DescriptionProduct description:The hammer-head screws with serration have been specially developed for use with mounting rails.Material:Steel.Version:Hot-dip galvanised.
Grade 8.8Note:The serrated hammer-head screw can be inserted into the mounting rail at any point. By turning it through 90°, the rounded head of the screw grips securely in the slot and prevents it from twisting. The special toothing of the hammer head ensures a highly stable and resilient connection, even when mounted vertically. The hammer-head screw can be positioned anywhere in the slot of the mounting rail, permitting for flexible positioning. A slot in the end of the thread indicates the correct alignment of the screw head in the mounting rail.

The large contact area of the screw head in the mounting rail ensures high stability and load-bearing capacity.

Suitable for System 41 mounting profiles (41/22 and 41/41).Assembly:Observe the profile permissible load As a rule, the permissible loads for mounting rails are lower than those for screws.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07094-16 Hammer-head screws for C-profile mounting rails System 41

180 kB

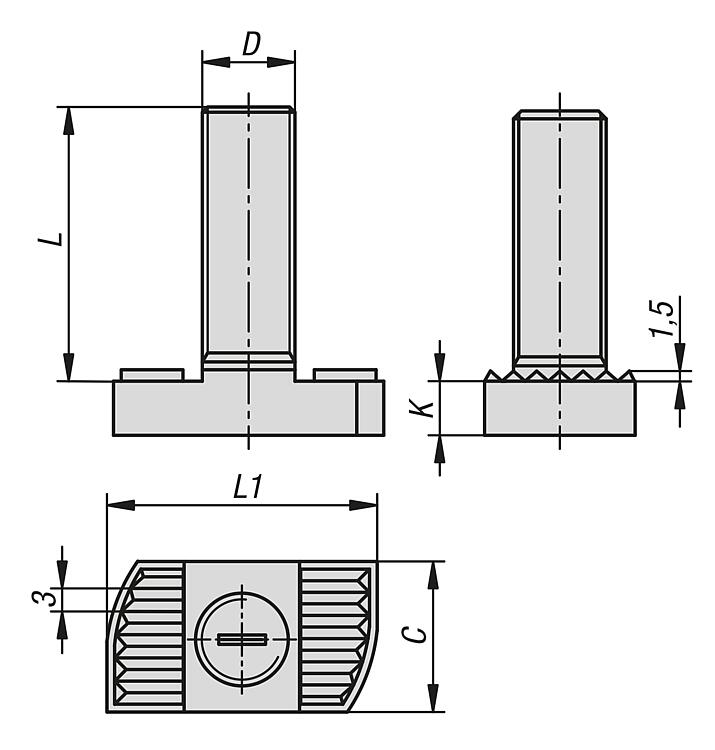

Drawings

Item selection/filter

Order No.	C	D	K	L	L1	Recommended tightening torque Nm	max. recommended load by tension kN	Price
07094-16-12884110X30	17	M10	7	30	34,5	48	13,2	on request
07094-16-12884110X40	17	M10	7	40	34,5	48	13,2	on request
07094-16-12884110X50	17	M10	7	50	34,5	48	13,2	on request
07094-16-12884112X35	19,5	M12	7	35	34,5	70	19,3	on request
07094-16-12884112X40	19,5	M12	7	40	34,5	70	19,3	on request
07094-16-12884112X50	19,5	M12	7	50	34,5	70	19,3	on request
07094-16-12884116X50	19,5	M16	7	50	34,5	200	36	on request
07094-16-12884116X100	19,5	M16	7	100	34,5	200	36	on request
