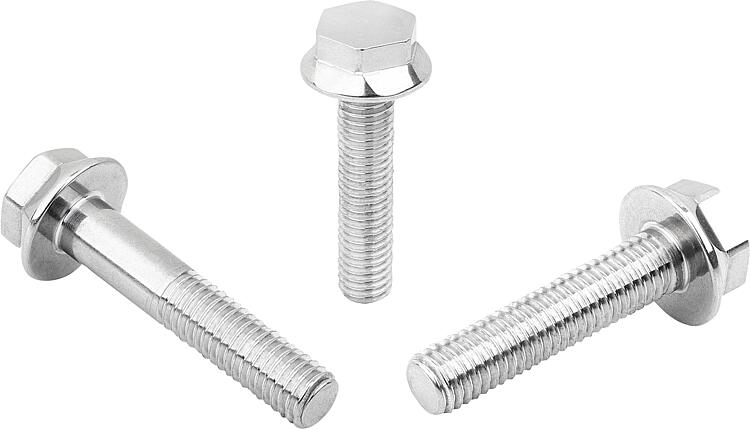

        Hex head bolt, stainless steel, with low head for Hygienic USIT® seal and shim washer

Item description/product images

DescriptionProduct description:A cavity-free seal can only be assured in combination with the Hygienic USIT® seal and shim washer. The polished screws have a surface finish of Ra < 0.8 µm. Furthermore, internal transitions have an angle > 135°, which minimises the adhesion of dirt particles and ensures easy cleaning.

Hex head bolts with low head for Hygienic USIT® seal and shim washers are ideal for fastenings in sterile areas and also conform to EHEDG regulations, which is confirmed with the relevant certificate.Material:Version:Polished.Note:

The EHEDG certificate is only valid when a specifically matched Hygienic USIT^® seal and shim washer 07300-03 is used.

Accessory:Hygienic USIT® sealing and shim washer 07300-03.
Hexagon cap nut with collar 07280-10.
Plier wrench with protective jaws 06661-15.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07170-20 Hex head bolt, stainless steel, with low head for Hygienic USIT® seal and shim washer

160 kB

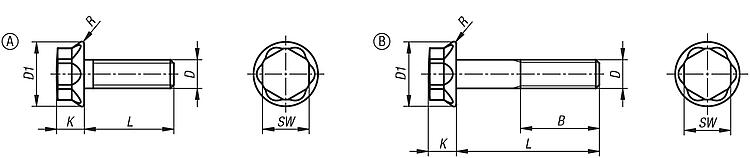

Drawings

Item selection/filter

Order No.	Form	D	D1	B	K	L	R	SW	Price
07170-20-04X8	A	M4	10,8	-	5,2	8	0,45	7	on request
07170-20-04X10	A	M4	10,8	-	5,2	10	0,45	7	on request
07170-20-04X12	A	M4	10,8	-	5,2	12	0,45	7	on request
07170-20-04X16	A	M4	10,8	-	5,2	16	0,45	7	on request
07170-20-04X20	A	M4	10,8	-	5,2	20	0,45	7	on request
07170-20-04X25	B	M4	10,8	14	5,2	25	0,45	7	on request
07170-20-04X30	B	M4	10,8	14	5,2	30	0,45	7	on request
07170-20-04X35	B	M4	10,8	14	5,2	35	0,45	7	on request
07170-20-04X40	B	M4	10,8	14	5,2	40	0,45	7	on request
07170-20-05X10	A	M5	11,8	-	6	10	0,5	8	on request
07170-20-05X12	A	M5	11,8	-	6	12	0,5	8	on request
07170-20-05X16	A	M5	11,8	-	6	16	0,5	8	on request
07170-20-05X20	A	M5	11,8	-	6	20	0,5	8	on request
07170-20-05X25	B	M5	11,8	16	6	25	0,5	8	on request
07170-20-05X30	B	M5	11,8	16	6	30	0,5	8	on request
07170-20-05X35	B	M5	11,8	16	6	35	0,5	8	on request
07170-20-05X40	B	M5	11,8	16	6	40	0,5	8	on request
07170-20-05X45	B	M5	11,8	16	6	45	0,5	8	on request
07170-20-05X50	B	M5	11,8	16	6	50	0,5	8	on request
07170-20-06X12	A	M6	14	-	6,5	12	0,5	10	on request
07170-20-06X16	A	M6	14	-	6,5	16	0,5	10	on request
07170-20-06X20	A	M6	14	-	6,5	20	0,5	10	on request
07170-20-06X25	A	M6	14	-	6,5	25	0,5	10	on request
07170-20-06X30	B	M6	14	18	6,5	30	0,5	10	on request
07170-20-06X35	B	M6	14	18	6,5	35	0,5	10	on request
07170-20-06X40	B	M6	14	18	6,5	40	0,5	10	on request
07170-20-06X45	B	M6	14	18	6,5	45	0,5	10	on request
07170-20-06X50	B	M6	14	18	6,5	50	0,5	10	on request
07170-20-06X60	B	M6	14	18	6,5	60	0,5	10	on request
07170-20-08X16	A	M8	18	-	7,6	16	0,6	13	on request
07170-20-08X20	A	M8	18	-	7,6	20	0,6	13	on request
07170-20-08X25	A	M8	18	-	7,6	25	0,6	13	on request
07170-20-08X30	A	M8	18	-	7,6	30	0,6	13	on request
07170-20-08X35	A	M8	18	-	7,6	35	0,6	13	on request
07170-20-08X40	B	M8	18	22	7,6	40	0,6	13	on request
07170-20-08X45	B	M8	18	22	7,6	45	0,6	13	on request
07170-20-08X50	B	M8	18	22	7,6	50	0,6	13	on request
07170-20-08X60	B	M8	18	22	7,6	60	0,6	13	on request
07170-20-08X70	B	M8	18	22	7,6	70	0,6	13	on request
07170-20-08X80	B	M8	18	22	7,6	80	0,6	13	on request
07170-20-10X20	A	M10	22	-	9	20	0,75	16	on request
07170-20-10X25	A	M10	22	-	9	25	0,75	16	on request
07170-20-10X30	A	M10	22	-	9	30	0,75	16	on request
07170-20-10X35	A	M10	22	-	9	35	0,75	16	on request
07170-20-10X40	A	M10	22	-	9	40	0,75	16	on request
07170-20-10X45	B	M10	22	26	9	45	0,75	16	on request
07170-20-10X50	B	M10	22	26	9	50	0,75	16	on request
07170-20-10X60	B	M10	22	26	9	60	0,75	16	on request
07170-20-10X70	B	M10	22	26	9	70	0,75	16	on request
07170-20-10X80	B	M10	22	26	9	80	0,75	16	on request
07170-20-12X25	A	M12	26,6	-	11,5	25	0,9	18	on request
07170-20-12X30	A	M12	26,6	-	11,5	30	0,9	18	on request
07170-20-12X35	A	M12	26,6	-	11,5	35	0,9	18	on request
07170-20-12X40	A	M12	26,6	-	11,5	40	0,9	18	on request
07170-20-12X45	A	M12	26,6	-	11,5	45	0,9	18	on request
07170-20-12X50	B	M12	26,6	30	11,5	50	0,9	18	on request
07170-20-12X60	B	M12	26,6	30	11,5	60	0,9	18	on request
07170-20-12X70	B	M12	26,6	30	11,5	70	0,9	18	on request
07170-20-12X80	B	M12	26,6	30	11,5	80	0,9	18	on request
07170-20-16X30	A	M16	35	-	13,5	30	1,2	24	on request
07170-20-16X35	A	M16	35	-	13,5	35	1,2	24	on request
07170-20-16X40	A	M16	35	-	13,5	40	1,2	24	on request
07170-20-16X45	A	M16	35	-	13,5	45	1,2	24	on request
07170-20-16X50	A	M16	35	-	13,5	50	1,2	24	on request
07170-20-16X60	A	M16	35	-	13,5	60	1,2	24	on request
07170-20-16X70	B	M16	35	38	13,5	70	1,2	24	on request
07170-20-16X80	B	M16	35	38	13,5	80	1,2	24	on request
