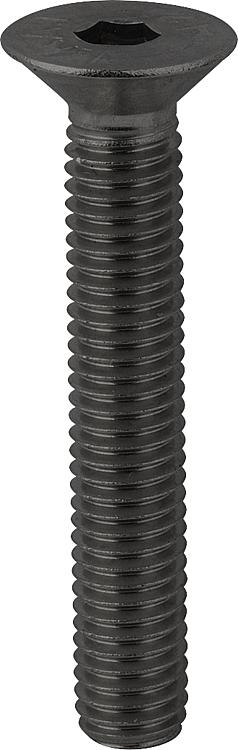

        Screws with countersunk head hexagon socket DIN EN ISO 10642
        Screws with countersunk head hexagon socket DIN EN ISO 10642, steel

Item description/product images

DescriptionMaterial:Steel.Version:Steel grade 8.8, bright (black) or electro zinc-plated.
Steel grade 10.9, bright (black) or electro zinc-plated.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07175_ST Screws with countersunk head hexagon socket DIN EN ISO 10642, steel

153 kB

Overview of standards for fasteners

763 kB

Grades

124 kB

Drawings

Item selection/filter

Order No.	Material	Surface finish body	Grade	D	L	Ls min.	Lg max.	K max.	T max.	D1 max.	SW	Price
07175-03X10	steel	bright (black)	8.8	M3	10	0	1	1,86	1,65	5,81	2	on request
07175-03X12	steel	bright (black)	8.8	M3	12	0	1	1,86	1,65	5,81	2	on request
07175-03X16	steel	bright (black)	8.8	M3	16	0	1	1,86	1,65	5,81	2	on request
07175-03X20	steel	bright (black)	8.8	M3	20	0	1	1,86	1,65	5,81	2	on request
07175-03X25	steel	bright (black)	8.8	M3	25	0	1	1,86	1,65	5,81	2	on request
07175-04X10	steel	bright (black)	8.8	M4	10	0	1,4	2,48	1,65	7,96	2,5	on request
07175-04X12	steel	bright (black)	8.8	M4	12	0	1,4	2,48	1,65	7,96	2,5	on request
07175-04X16	steel	bright (black)	8.8	M4	16	0	1,4	2,48	1,65	7,96	2,5	on request
07175-04X20	steel	bright (black)	8.8	M4	20	0	1,4	2,48	1,65	7,96	2,5	on request
07175-04X25	steel	bright (black)	8.8	M4	25	0	1,4	2,48	1,65	7,96	2,5	on request
07175-05X10	steel	bright (black)	8.8	M5	10	0	1,6	3,1	2	10,07	3	on request
07175-05X12	steel	bright (black)	8.8	M5	12	0	1,6	3,1	2	10,07	3	on request
07175-05X16	steel	bright (black)	8.8	M5	16	0	1,6	3,1	2	10,07	3	on request
07175-05X20	steel	bright (black)	8.8	M5	20	0	1,6	3,1	2	10,07	3	on request
07175-05X25	steel	bright (black)	8.8	M5	25	0	1,6	3,1	2	10,07	3	on request
07175-05X30	steel	bright (black)	8.8	M5	30	0	1,6	3,1	2	10,07	3	on request
07175-06X10	steel	bright (black)	8.8	M6	10	0	2	3,72	2,5	12,16	4	on request
07175-06X12	steel	bright (black)	8.8	M6	12	0	2	3,72	2,5	12,16	4	on request
07175-06X16	steel	bright (black)	8.8	M6	16	0	2	3,72	2,5	12,16	4	on request
07175-06X20	steel	bright (black)	8.8	M6	20	0	2	3,72	2,5	12,16	4	on request
07175-06X25	steel	bright (black)	8.8	M6	25	0	2	3,72	2,5	12,16	4	on request
07175-06X30	steel	bright (black)	8.8	M6	30	0	2	3,72	2,5	12,16	4	on request
07175-06X35	steel	bright (black)	8.8	M6	35	0	2	3,72	2,5	12,16	4	on request
07175-06X40	steel	bright (black)	8.8	M6	40	11	16	3,72	2,5	12,16	4	on request
07175-06X45	steel	bright (black)	8.8	M6	45	16	21	3,72	2,5	12,16	4	on request
07175-06X50	steel	bright (black)	8.8	M6	50	21	26	3,72	2,5	12,16	4	on request
07175-06X60	steel	bright (black)	8.8	M6	60	31	36	3,72	2,5	12,16	4	on request
07175-08X16	steel	bright (black)	8.8	M8	16	0	2,5	4,96	3,2	16,43	5	on request
07175-08X20	steel	bright (black)	8.8	M8	20	0	2,5	4,96	3,2	16,43	5	on request
07175-08X25	steel	bright (black)	8.8	M8	25	0	2,5	4,96	3,2	16,43	5	on request
07175-08X30	steel	bright (black)	8.8	M8	30	0	2,5	4,96	3,2	16,43	5	on request
07175-08X35	steel	bright (black)	8.8	M8	35	0	2,5	4,96	3,2	16,43	5	on request
07175-08X40	steel	bright (black)	8.8	M8	40	0	2,5	4,96	3,2	16,43	5	on request
07175-08X45	steel	bright (black)	8.8	M8	45	0	2,5	4,96	3,2	16,43	5	on request
07175-08X50	steel	bright (black)	8.8	M8	50	15,75	22	4,96	3,2	16,43	5	on request
07175-08X60	steel	bright (black)	8.8	M8	60	25,75	32	4,96	3,2	16,43	5	on request
07175-10X16	steel	bright (black)	8.8	M10	16	0	3	6,2	3,9	20,69	6	on request
07175-10X20	steel	bright (black)	8.8	M10	20	0	3	6,2	3,9	20,69	6	on request
07175-10X25	steel	bright (black)	8.8	M10	25	0	3	6,2	3,9	20,69	6	on request
07175-10X30	steel	bright (black)	8.8	M10	30	0	3	6,2	3,9	20,69	6	on request
07175-10X35	steel	bright (black)	8.8	M10	35	0	3	6,2	3,9	20,69	6	on request
07175-10X40	steel	bright (black)	8.8	M10	40	0	3	6,2	3,9	20,69	6	on request
07175-10X45	steel	bright (black)	8.8	M10	45	0	3	6,2	3,9	20,69	6	on request
07175-10X50	steel	bright (black)	8.8	M10	50	0	3	6,2	3,9	20,69	6	on request
07175-10X60	steel	bright (black)	8.8	M10	60	20,5	28	6,2	3,9	20,69	6	on request
07175-10X70	steel	bright (black)	8.8	M10	70	30,5	38	6,2	3,9	20,69	6	on request
07175-12X20	steel	bright (black)	8.8	M12	20	0	3,5	7,44	4,9	24,81	8	on request
07175-12X25	steel	bright (black)	8.8	M12	25	0	3,5	7,44	4,9	24,81	8	on request
07175-12X30	steel	bright (black)	8.8	M12	30	0	3,5	7,44	4,9	24,81	8	on request
07175-12X35	steel	bright (black)	8.8	M12	35	0	3,5	7,44	4,9	24,81	8	on request
07175-12X40	steel	bright (black)	8.8	M12	40	0	3,5	7,44	4,9	24,81	8	on request
07175-12X45	steel	bright (black)	8.8	M12	45	0	3,5	7,44	4,9	24,81	8	on request
07175-12X50	steel	bright (black)	8.8	M12	50	0	3,5	7,44	4,9	24,81	8	on request
07175-12X60	steel	bright (black)	8.8	M12	60	0	3,5	7,44	4,9	24,81	8	on request
07175-12X70	steel	bright (black)	8.8	M12	70	25,25	34	7,44	4,9	24,81	8	on request
07175-12X80	steel	bright (black)	8.8	M12	80	35,25	44	7,44	4,9	24,81	8	on request
07175-16X30	steel	bright (black)	8.8	M16	30	0	4	8,8	5,4	30,61	10	on request
07175-16X35	steel	bright (black)	8.8	M16	35	0	4	8,8	5,4	30,61	10	on request
07175-16X40	steel	bright (black)	8.8	M16	40	0	4	8,8	5,4	30,61	10	on request
07175-16X45	steel	bright (black)	8.8	M16	45	0	4	8,8	5,4	30,61	10	on request
07175-16X50	steel	bright (black)	8.8	M16	50	0	4	8,8	5,4	30,61	10	on request
07175-16X60	steel	bright (black)	8.8	M16	60	0	4	8,8	5,4	30,61	10	on request
07175-16X70	steel	bright (black)	8.8	M16	70	0	4	8,8	5,4	30,61	10	on request
07175-16X80	steel	bright (black)	8.8	M16	80	22	32	8,8	5,4	30,61	10	on request
07175-403X10	steel	electro zinc-plated	8.8	M3	10	0	1	1,86	1,65	5,81	2	on request
07175-403X12	steel	electro zinc-plated	8.8	M3	12	0	1	1,86	1,65	5,81	2	on request
07175-403X16	steel	electro zinc-plated	8.8	M3	16	0	1	1,86	1,65	5,81	2	on request
07175-403X20	steel	electro zinc-plated	8.8	M3	20	0	1	1,86	1,65	5,81	2	on request
07175-403X25	steel	electro zinc-plated	8.8	M3	25	0	1	1,86	1,65	5,81	2	on request
07175-404X10	steel	electro zinc-plated	8.8	M4	10	0	1,4	2,48	1,65	7,96	2,5	on request
07175-404X12	steel	electro zinc-plated	8.8	M4	12	0	1,4	2,48	1,65	7,96	2,5	on request
07175-404X16	steel	electro zinc-plated	8.8	M4	16	0	1,4	2,48	1,65	7,96	2,5	on request
07175-404X20	steel	electro zinc-plated	8.8	M4	20	0	1,4	2,48	1,65	7,96	2,5	on request
07175-404X25	steel	electro zinc-plated	8.8	M4	25	0	1,4	2,48	1,65	7,96	2,5	on request
07175-405X10	steel	electro zinc-plated	8.8	M5	10	0	1,6	3,1	2	10,07	3	on request
07175-405X12	steel	electro zinc-plated	8.8	M5	12	0	1,6	3,1	2	10,07	3	on request
07175-405X16	steel	electro zinc-plated	8.8	M5	16	0	1,6	3,1	2	10,07	3	on request
07175-405X20	steel	electro zinc-plated	8.8	M5	20	0	1,6	3,1	2	10,07	3	on request
07175-405X25	steel	electro zinc-plated	8.8	M5	25	0	1,6	3,1	2	10,07	3	on request
07175-405X30	steel	electro zinc-plated	8.8	M5	30	0	1,6	3,1	2	10,07	3	on request
07175-406X10	steel	electro zinc-plated	8.8	M6	10	0	2	3,72	2,5	12,16	4	on request
07175-406X12	steel	electro zinc-plated	8.8	M6	12	0	2	3,72	2,5	12,16	4	on request
07175-406X16	steel	electro zinc-plated	8.8	M6	16	0	2	3,72	2,5	12,16	4	on request
07175-406X20	steel	electro zinc-plated	8.8	M6	20	0	2	3,72	2,5	12,16	4	on request
07175-406X25	steel	electro zinc-plated	8.8	M6	25	0	2	3,72	2,5	12,16	4	on request
07175-406X30	steel	electro zinc-plated	8.8	M6	30	0	2	3,72	2,5	12,16	4	on request
07175-406X35	steel	electro zinc-plated	8.8	M6	35	0	2	3,72	2,5	12,16	4	on request
07175-406X40	steel	electro zinc-plated	8.8	M6	40	11	16	3,72	2,5	12,16	4	on request
07175-406X45	steel	electro zinc-plated	8.8	M6	45	16	21	3,72	2,5	12,16	4	on request
07175-406X50	steel	electro zinc-plated	8.8	M6	50	21	26	3,72	2,5	12,16	4	on request
07175-406X60	steel	electro zinc-plated	8.8	M6	60	31	36	3,72	2,5	12,16	4	on request
07175-408X16	steel	electro zinc-plated	8.8	M8	16	0	2,5	4,96	3,2	16,43	5	on request
07175-408X20	steel	electro zinc-plated	8.8	M8	20	0	2,5	4,96	3,2	16,43	5	on request
07175-408X25	steel	electro zinc-plated	8.8	M8	25	0	2,5	4,96	3,2	16,43	5	on request
07175-408X30	steel	electro zinc-plated	8.8	M8	30	0	2,5	4,96	3,2	16,43	5	on request
07175-408X35	steel	electro zinc-plated	8.8	M8	35	0	2,5	4,96	3,2	16,43	5	on request
07175-408X40	steel	electro zinc-plated	8.8	M8	40	0	2,5	4,96	3,2	16,43	5	on request
07175-408X45	steel	electro zinc-plated	8.8	M8	45	0	2,5	4,96	3,2	16,43	5	on request
07175-408X50	steel	electro zinc-plated	8.8	M8	50	15,75	22	4,96	3,2	16,43	5	on request
07175-408X60	steel	electro zinc-plated	8.8	M8	60	25,75	32	4,96	3,2	16,43	5	on request
07175-410X16	steel	electro zinc-plated	8.8	M10	16	0	3	6,2	3,9	20,69	6	on request
07175-410X20	steel	electro zinc-plated	8.8	M10	20	0	3	6,2	3,9	20,69	6	on request
07175-410X25	steel	electro zinc-plated	8.8	M10	25	0	3	6,2	3,9	20,69	6	on request
07175-410X30	steel	electro zinc-plated	8.8	M10	30	0	3	6,2	3,9	20,69	6	on request
07175-410X35	steel	electro zinc-plated	8.8	M10	35	0	3	6,2	3,9	20,69	6	on request
07175-410X40	steel	electro zinc-plated	8.8	M10	40	0	3	6,2	3,9	20,69	6	on request
07175-410X45	steel	electro zinc-plated	8.8	M10	45	0	3	6,2	3,9	20,69	6	on request
07175-410X50	steel	electro zinc-plated	8.8	M10	50	0	3	6,2	3,9	20,69	6	on request
07175-410X60	steel	electro zinc-plated	8.8	M10	60	20,5	28	6,2	3,9	20,69	6	on request
07175-410X70	steel	electro zinc-plated	8.8	M10	70	30,5	38	6,2	3,9	20,69	6	on request
07175-412X20	steel	electro zinc-plated	8.8	M12	20	0	3,5	7,44	4,9	24,81	8	on request
07175-412X25	steel	electro zinc-plated	8.8	M12	25	0	3,5	7,44	4,9	24,81	8	on request
07175-412X30	steel	electro zinc-plated	8.8	M12	30	0	3,5	7,44	4,9	24,81	8	on request
07175-412X35	steel	electro zinc-plated	8.8	M12	35	0	3,5	7,44	4,9	24,81	8	on request
07175-412X40	steel	electro zinc-plated	8.8	M12	40	0	3,5	7,44	4,9	24,81	8	on request
07175-412X45	steel	electro zinc-plated	8.8	M12	45	0	3,5	7,44	4,9	24,81	8	on request
07175-412X50	steel	electro zinc-plated	8.8	M12	50	0	3,5	7,44	4,9	24,81	8	on request
07175-412X60	steel	electro zinc-plated	8.8	M12	60	0	3,5	7,44	4,9	24,81	8	on request
07175-412X70	steel	electro zinc-plated	8.8	M12	70	25,25	34	7,44	4,9	24,81	8	on request
07175-412X80	steel	electro zinc-plated	8.8	M12	80	35,25	44	7,44	4,9	24,81	8	on request
07175-416X30	steel	electro zinc-plated	8.8	M16	30	0	4	8,8	5,4	30,61	10	on request
07175-416X35	steel	electro zinc-plated	8.8	M16	35	0	4	8,8	5,4	30,61	10	on request
07175-416X40	steel	electro zinc-plated	8.8	M16	40	0	4	8,8	5,4	30,61	10	on request
07175-416X45	steel	electro zinc-plated	8.8	M16	45	0	4	8,8	5,4	30,61	10	on request
07175-416X50	steel	electro zinc-plated	8.8	M16	50	0	4	8,8	5,4	30,61	10	on request
07175-416X60	steel	electro zinc-plated	8.8	M16	60	0	4	8,8	5,4	30,61	10	on request
07175-416X70	steel	electro zinc-plated	8.8	M16	70	0	4	8,8	5,4	30,61	10	on request
07175-416X80	steel	electro zinc-plated	8.8	M16	80	22	32	8,8	5,4	30,61	10	on request
07175-303X10	steel	bright (black)	10.9	M3	10	0	1	1,86	1,65	5,81	2	on request
07175-303X12	steel	bright (black)	10.9	M3	12	0	1	1,86	1,65	5,81	2	on request
07175-303X16	steel	bright (black)	10.9	M3	16	0	1	1,86	1,65	5,81	2	on request
07175-303X20	steel	bright (black)	10.9	M3	20	0	1	1,86	1,65	5,81	2	on request
07175-303X25	steel	bright (black)	10.9	M3	25	0	1	1,86	1,65	5,81	2	on request
07175-304X10	steel	bright (black)	10.9	M4	10	0	1,4	2,48	1,65	7,96	2,5	on request
07175-304X12	steel	bright (black)	10.9	M4	12	0	1,4	2,48	1,65	7,96	2,5	on request
07175-304X16	steel	bright (black)	10.9	M4	16	0	1,4	2,48	1,65	7,96	2,5	on request
07175-304X20	steel	bright (black)	10.9	M4	20	0	1,4	2,48	1,65	7,96	2,5	on request
07175-304X25	steel	bright (black)	10.9	M4	25	0	1,4	2,48	1,65	7,96	2,5	on request
07175-305X10	steel	bright (black)	10.9	M5	10	0	1,6	3,1	2	10,07	3	on request
07175-305X12	steel	bright (black)	10.9	M5	12	0	1,6	3,1	2	10,07	3	on request
07175-305X16	steel	bright (black)	10.9	M5	16	0	1,6	3,1	2	10,07	3	on request
07175-305X20	steel	bright (black)	10.9	M5	20	0	1,6	3,1	2	10,07	3	on request
07175-305X25	steel	bright (black)	10.9	M5	25	0	1,6	3,1	2	10,07	3	on request
07175-305X30	steel	bright (black)	10.9	M5	30	0	1,6	3,1	2	10,07	3	on request
07175-306X10	steel	bright (black)	10.9	M6	10	0	2	3,72	2,5	12,16	4	on request
07175-306X12	steel	bright (black)	10.9	M6	12	0	2	3,72	2,5	12,16	4	on request
07175-306X16	steel	bright (black)	10.9	M6	16	0	2	3,72	2,5	12,16	4	on request
07175-306X20	steel	bright (black)	10.9	M6	20	0	2	3,72	2,5	12,16	4	on request
07175-306X25	steel	bright (black)	10.9	M6	25	0	2	3,72	2,5	12,16	4	on request
07175-306X30	steel	bright (black)	10.9	M6	30	0	2	3,72	2,5	12,16	4	on request
07175-306X35	steel	bright (black)	10.9	M6	35	0	2	3,72	2,5	12,16	4	on request
07175-306X40	steel	bright (black)	10.9	M6	40	11	16	3,72	2,5	12,16	4	on request
07175-306X45	steel	bright (black)	10.9	M6	45	16	21	3,72	2,5	12,16	4	on request
07175-306X50	steel	bright (black)	10.9	M6	50	21	26	3,72	2,5	12,16	4	on request
07175-306X60	steel	bright (black)	10.9	M6	60	31	36	3,72	2,5	12,16	4	on request
07175-308X16	steel	bright (black)	10.9	M8	16	0	2,5	4,96	3,2	16,43	5	on request
07175-308X20	steel	bright (black)	10.9	M8	20	0	2,5	4,96	3,2	16,43	5	on request
07175-308X25	steel	bright (black)	10.9	M8	25	0	2,5	4,96	3,2	16,43	5	on request
07175-308X30	steel	bright (black)	10.9	M8	30	0	2,5	4,96	3,2	16,43	5	on request
07175-308X35	steel	bright (black)	10.9	M8	35	0	2,5	4,96	3,2	16,43	5	on request
07175-308X40	steel	bright (black)	10.9	M8	40	0	2,5	4,96	3,2	16,43	5	on request
07175-308X45	steel	bright (black)	10.9	M8	45	0	2,5	4,96	3,2	16,43	5	on request
07175-308X50	steel	bright (black)	10.9	M8	50	15,75	22	4,96	3,2	16,43	5	on request
07175-308X60	steel	bright (black)	10.9	M8	60	25,75	32	4,96	3,2	16,43	5	on request
07175-310X16	steel	bright (black)	10.9	M10	16	0	3	6,2	3,9	20,69	6	on request
07175-310X20	steel	bright (black)	10.9	M10	20	0	3	6,2	3,9	20,69	6	on request
07175-310X25	steel	bright (black)	10.9	M10	25	0	3	6,2	3,9	20,69	6	on request
07175-310X30	steel	bright (black)	10.9	M10	30	0	3	6,2	3,9	20,69	6	on request
07175-310X35	steel	bright (black)	10.9	M10	35	0	3	6,2	3,9	20,69	6	on request
07175-310X40	steel	bright (black)	10.9	M10	40	0	3	6,2	3,9	20,69	6	on request
07175-310X45	steel	bright (black)	10.9	M10	45	0	3	6,2	3,9	20,69	6	on request
07175-310X50	steel	bright (black)	10.9	M10	50	0	3	6,2	3,9	20,69	6	on request
07175-310X60	steel	bright (black)	10.9	M10	60	20,5	28	6,2	3,9	20,69	6	on request
07175-310X70	steel	bright (black)	10.9	M10	70	30,5	38	6,2	3,9	20,69	6	on request
07175-312X20	steel	bright (black)	10.9	M12	20	0	3,5	7,44	4,9	24,81	8	on request
07175-312X25	steel	bright (black)	10.9	M12	25	0	3,5	7,44	4,9	24,81	8	on request
07175-312X30	steel	bright (black)	10.9	M12	30	0	3,5	7,44	4,9	24,81	8	on request
07175-312X35	steel	bright (black)	10.9	M12	35	0	3,5	7,44	4,9	24,81	8	on request
07175-312X40	steel	bright (black)	10.9	M12	40	0	3,5	7,44	4,9	24,81	8	on request
07175-312X45	steel	bright (black)	10.9	M12	45	0	3,5	7,44	4,9	24,81	8	on request
07175-312X50	steel	bright (black)	10.9	M12	50	0	3,5	7,44	4,9	24,81	8	on request
07175-312X60	steel	bright (black)	10.9	M12	60	0	3,5	7,44	4,9	24,81	8	on request
07175-312X70	steel	bright (black)	10.9	M12	70	25,25	34	7,44	4,9	24,81	8	on request
07175-312X80	steel	bright (black)	10.9	M12	80	35,25	44	7,44	4,9	24,81	8	on request
07175-316X30	steel	bright (black)	10.9	M16	30	0	4	8,8	5,4	30,61	10	on request
07175-316X35	steel	bright (black)	10.9	M16	35	0	4	8,8	5,4	30,61	10	on request
07175-316X40	steel	bright (black)	10.9	M16	40	0	4	8,8	5,4	30,61	10	on request
07175-316X45	steel	bright (black)	10.9	M16	45	0	4	8,8	5,4	30,61	10	on request
07175-316X50	steel	bright (black)	10.9	M16	50	0	4	8,8	5,4	30,61	10	on request
07175-316X60	steel	bright (black)	10.9	M16	60	0	4	8,8	5,4	30,61	10	on request
07175-316X70	steel	bright (black)	10.9	M16	70	0	4	8,8	5,4	30,61	10	on request
07175-316X80	steel	bright (black)	10.9	M16	80	22	32	8,8	5,4	30,61	10	on request
