Conical seats Form G, DIN 6319, edition 10/01

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Spherical washers DIN 6319, edition 10/01
        Conical seats Form G, DIN 6319, edition 10/01

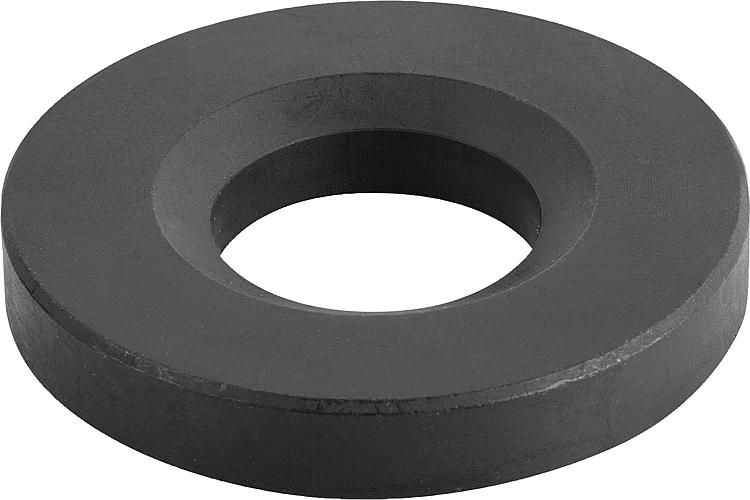

Item description/product images

DescriptionMaterial:Carbon steel or stainless steel.Version:QT steel, tempered (350 + 80) HV 30.
Stainless steel, bright.Note:Conical seat Form G should be used over slots.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07420_G Conical seats Form G, D4>D3, DIN 6319, edition 10/01

184 kB

Overview of standards for fasteners

1,7 MB

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	Form	G=thread / for thread	D1	D2	D5	H	H2	Load rating max. kN (static load only)	Price
07420-305	QT steel	tempered	G	M5	6	15	9,25	2,5	3,5	6,5	on request
07420-306	QT steel	tempered	G	M6	7,1	17	11	4	5,4	9	on request
07420-308	QT steel	tempered	G	M8	9,6	24	14,5	5	7,1	17	on request
07420-310	QT steel	tempered	G	M10	12	30	18,5	5	7,3	26	on request
07420-312	QT steel	tempered	G	M12	14,2	36	20	6	9	38	on request
07420-314	QT steel	tempered	G	M14	16,5	40	24,8	6	9,5	53	on request
07420-316	QT steel	tempered	G	M16	19	44	26	7	10,4	73	on request
07420-320	QT steel	tempered	G	M20	23,2	50	31	8	12,2	117	on request
07420-324	QT steel	tempered	G	M24	28	60	37	10	15,7	168	on request
07420-330	QT steel	tempered	G	M30	35	68	49	12	19,7	269	on request
07420-336	QT steel	tempered	G	M36	42	80	60	12	20,3	394	on request
07420-0306	stainless steel	bright	G	M6	7,1	17	11	4	5,4	6	on request
07420-0308	stainless steel	bright	G	M8	9,6	24	14,5	5	7,1	12	on request
07420-0310	stainless steel	bright	G	M10	12	30	18,5	5	7,3	16	on request
07420-0312	stainless steel	bright	G	M12	14,2	36	20	6	9	24	on request
07420-0316	stainless steel	bright	G	M16	19	44	26	7	10,4	45	on request
07420-0320	stainless steel	bright	G	M20	23,2	50	31	8	12,2	71	on request
07420-0324	stainless steel	bright	G	M24	28	60	37	10	15,7	105	on request
07420-0330	stainless steel	bright	G	M30	35	68	49	12	19,7	191	on request
