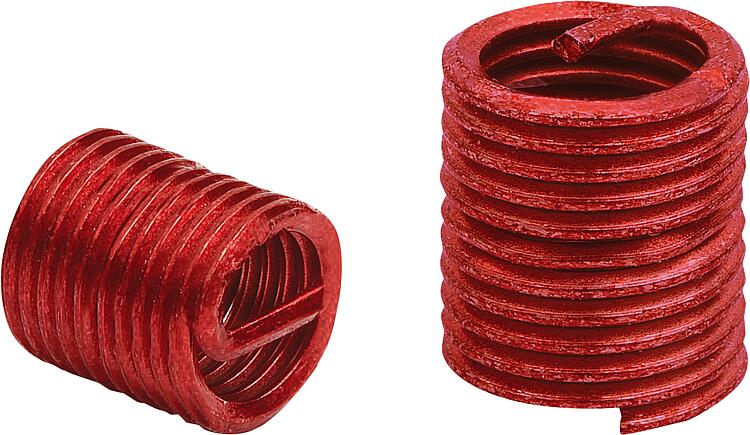

        Threaded inserts, wire-wound and self-locking with tang

Item description/product images

DescriptionMaterial:Version:RedNote:Wire-bound threaded inserts are an indispensable tool for any metalworking business and repair shop.
Tapped holes that have been damaged, rusted solid or drilled too big can restored to their original size and condition within minutes.
Technically flawless and infinitely durable, resistant to corrosive influences and thermal stress. They therefore enable the repair and recovery of expensive products.
The high surface finish ensures optimum yield strength and higher tensile force for high-strength screws.

Self-locking threaded inserts are suitable for use in applications subject to shock, vibration or movement. A polygonal winding grips the flanks of the screw as it is screwed in.

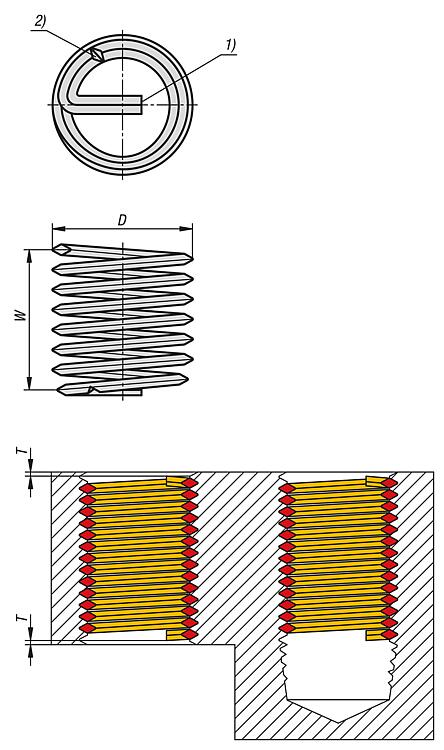

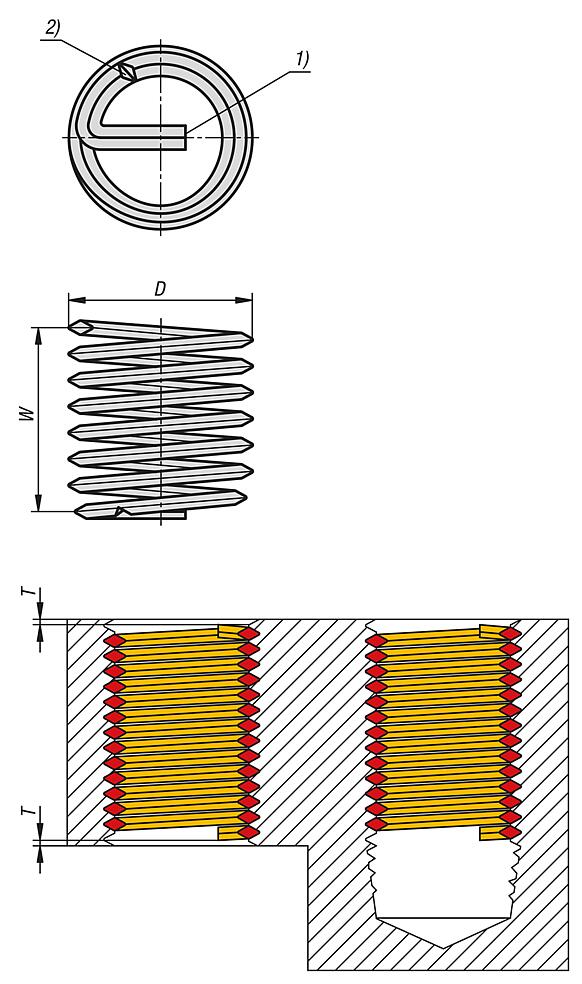

T is the distance between the threaded insert and the dividing face and equals 0.25 to 0.5 times the thread pitch.

The number of windings W is the windings on the threaded insert before installation.

The reference dimensions for the non-installed threaded inserts are W and DDrawing reference:

1) Drive pin
2) Notch

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07646 Threaded inserts, wire-wound and self-locking with tang

317 kB

Drawings

Item selection/filter

Order No.	G=Thread	D min. - max.	W	Insert length assembled mm	Price
07646-0321	M3	3,6-4,35	3,4-4,3	3	on request
07646-0331	M3	3,6-4,35	5,8-7,2	4,5	on request
07646-0341	M3	3,6-4,35	8,2-10,1	6	on request
07646-0421	M4	4,83-5,6	3,4-4	4	on request
07646-0431	M4	4,83-5,6	5,7-6,8	6	on request
07646-0441	M4	4,83-5,6	8,1-9,6	8	on request
07646-0521	M5	5,95-6,8	3,9-4,5	5	on request
07646-0531	M5	5,95-6,8	6,5-7,6	7,5	on request
07646-0541	M5	5,95-6,8	9,2-10,6	10	on request
07646-0621	M6	7,17-7,95	3,8-4,3	6	on request
07646-0631	M6	7,17-7,95	6,4-7,2	9	on request
07646-0641	M6	7,17-7,95	9,1-10,1	12	on request
07646-0821	M8	9,45-10,35	4,2-4,7	8	on request
07646-0831	M8	9,45-10,35	7,1-7,8	12	on request
07646-0841	M8	9,45-10,35	9,9-10,9	16	on request
07646-1021	M10	11,74-12,5	4,6-4,9	10	on request
07646-1031	M10	11,74-12,5	7,7-8,2	15	on request
07646-1041	M10	11,74-12,5	10,8-11,5	20	on request
07646-1221	M12	14,03-15	4,8-5,1	12	on request
07646-1231	M12	14,03-15	7,9-8,5	18	on request
07646-1241	M12	14,03-15	11,1-11,9	24	on request

Order No.	Core drill Ø	Installation tapping hole Ø	Installation Outer Ø locating thread	Installation min. thread depth with chamfer		Price
07646-0321	3,2	3,11-3,22	3,65	4,75	5,25	on request
07646-0331	3,2	3,11-3,22	3,65	6,25	6,75	on request
07646-0341	3,2	3,11-3,22	3,65	7,75	8,25	on request
07646-0421	4,2	4,15-4,29	4,91	6,45	7,15	on request
07646-0431	4,2	4,15-4,29	4,91	8,45	9,15	on request
07646-0441	4,2	4,15-4,29	4,91	10,45	11,15	on request
07646-0521	5,2	5,17-5,33	6,04	7,8	8,6	on request
07646-0531	5,2	5,17-5,33	6,04	10,3	11,1	on request
07646-0541	5,2	5,17-5,33	6,04	12,8	13,6	on request
07646-0621	6,3	6,22-6,41	7,3	9,5	10,5	on request
07646-0631	6,3	6,22-6,41	7,3	12,5	13,5	on request
07646-0641	6,3	6,22-6,41	7,3	15,5	16,5	on request
07646-0821	8,4	8,27-8,48	9,62	12,38	13,63	on request
07646-0831	8,4	8,27-8,48	9,62	16,38	17,63	on request
07646-0841	8,4	8,27-8,48	9,62	20,38	21,63	on request
07646-1021	10	10,22-10,41	11,3	15,25	16,75	on request
07646-1031	10	10,22-10,41	11,3	20,25	21,75	on request
07646-1041	10	10,22-10,41	11,3	25,25	26,75	on request
07646-1221	12	12,22-12,41	13,3	18,13	19,88	on request
07646-1231	12	12,22-12,41	13,3	24,13	25,88	on request
07646-1241	12	12,22-12,41	13,3	30,13	31,88	on request
