Item description/product images |
|
|
DescriptionMaterial:Housing steel.
Coil housing plastic.
Permanent magnet hard ferrite or NdFeB.Note:These permanent electromagnets can hold workpieces in place permanently. By supplying current (direct current), the coil in the core neutralises the magnetic field or can increase the magnetic force (depending on the current direction). After switching off, the effect is cancelled again.
The permanent electromagnets are attached using the threads on the back. The power connection is made via free wires.
The specified magnetic forces may be lower depending on the material thickness and the surface finish of the material.Technical data:Voltage: 24V DC.
Rating: up to IP 65.
Temperature range: up to 155 °C (insulation class F).
Duty cycle: 10 %.Application:The permanent electromagnets are used for holding, supporting and fixating ferromagnetic workpieces, especially where long holding times without energy consumption is required.On request:Voltage 12V DC.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

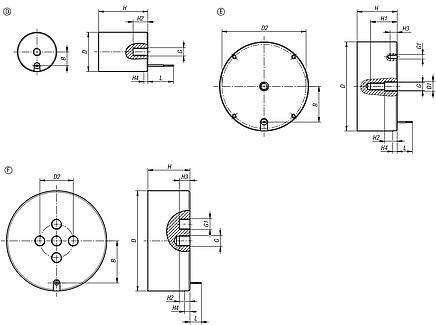

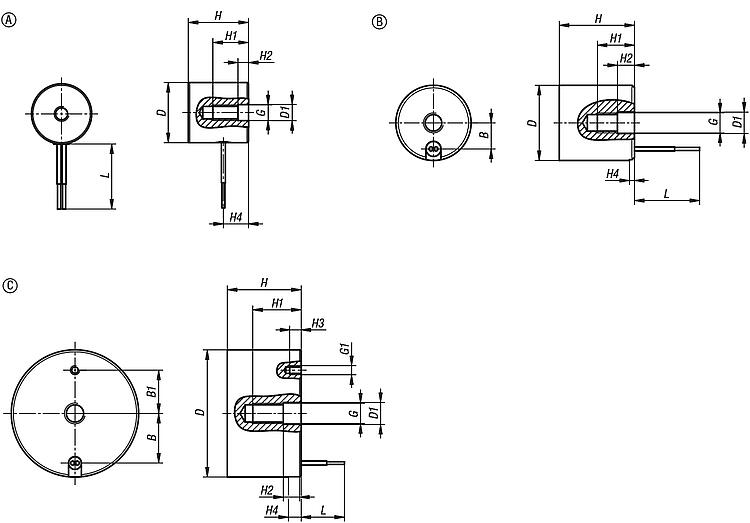

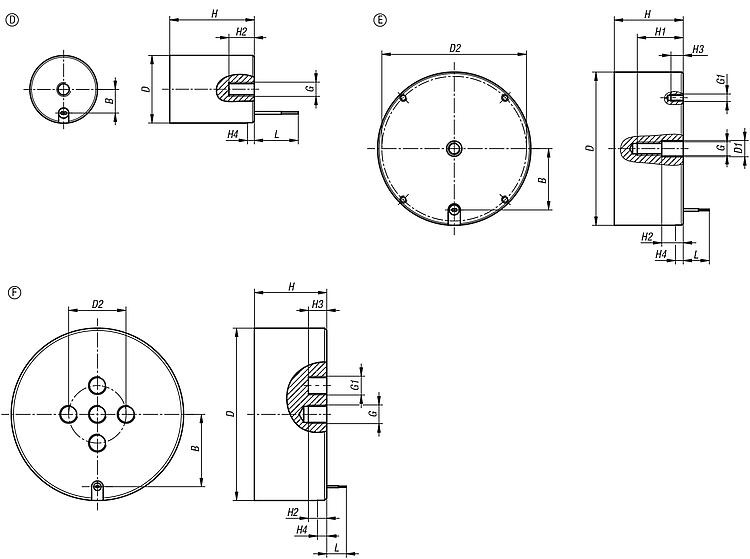

Drawings (total overview) |

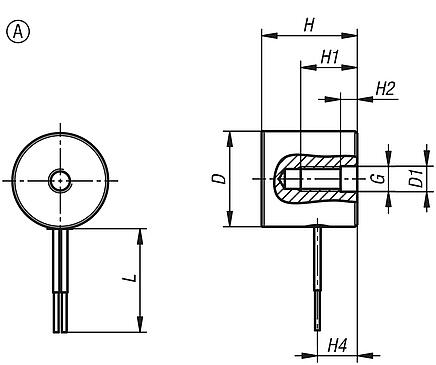

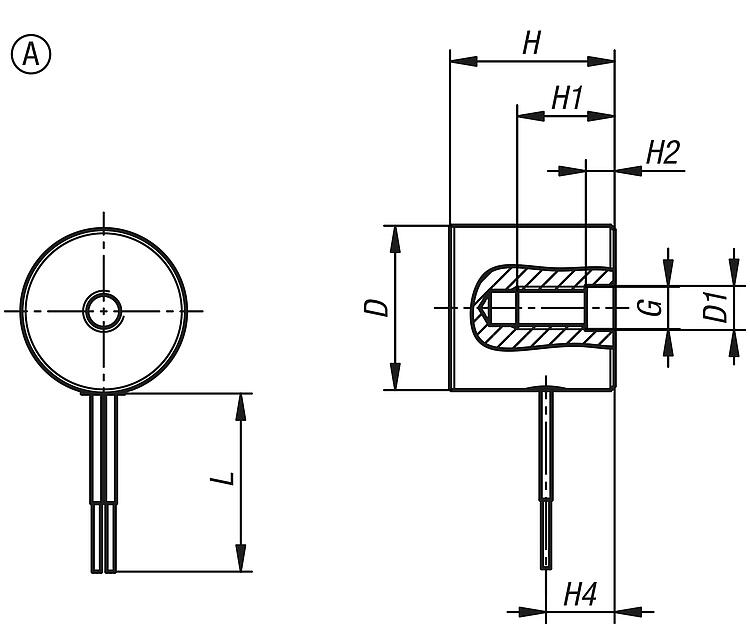

Order No.
| Form | D | D1 | G | H | H1 | H2 | H4 | L | Magnetic
force
N | W | Nom. tension
VDC | CAD | Acc. | Price | Order |
|---|
| 09132-010010 | A | 10 | 2,5 | M2 | 10 | 5,8 | 1,8 | 4 | 250 | 3 | 3 | 24 |  | | on request | | | 09132-012012 | A | 12 | 3,1 | M3 | 12 | 7,1 | 2,1 | 5 | 250 | 15 | 6 | 24 | | | on request | |
|

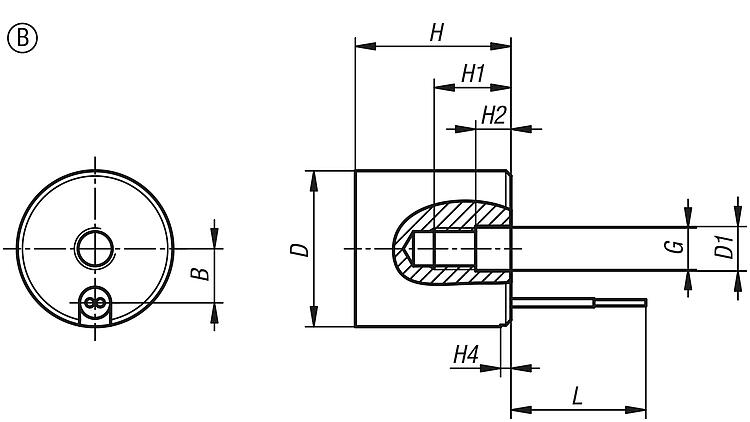

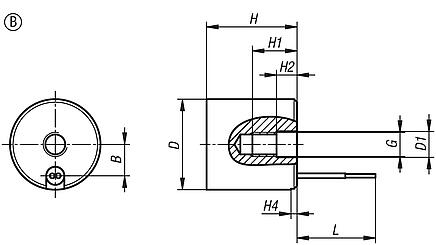

Order No.
| Form | B | D | D1 | G | H | H1 | H2 | H4 | L | Magnetic
force
N | W | Nom. tension
VDC | CAD | Acc. | Price | Order |
|---|
| 09132-015015 | B | 5,2 | 15 | 4 | M4 | 15 | 7,4 | 3,4 | 1 | 250 | 25 | 3,6 | 24 | | | on request | | | 09132-018011 | B | 6,5 | 18 | 3,1 | M3 | 11 | 7,4 | 2,4 | 1,2 | 250 | 45 | 14 | 24 | | | on request | | | 09132-025029 | B | 8,5 | 25 | 5 | M4 | 29 | 17 | 7 | 4 | 250 | 120 | 7 | 24 | | | on request | | | 09132-032026 | B | 11,5 | 32 | 6 | M5 | 29 | 19 | 7 | - | 250 | 180 | 14,4 | 24 | | | on request | | | 09132-035029 | B | 12,7 | 35 | 6 | M5 | 29 | 19,5 | 7,5 | 3,5 | 250 | 300 | 28 | 24 | | | on request | | | 09132-040029 | B | 14,5 | 40 | 6 | M6 | 29 | 18 | 6 | 3,5 | 250 | 400 | 16,5 | 24 | | | on request | | | 09132-082045 | B | 33 | 82 | 10 | M8 | 45 | 25 | 10 | 5,5 | 500 | 1900 | 43 | 24 | | | on request | |
|

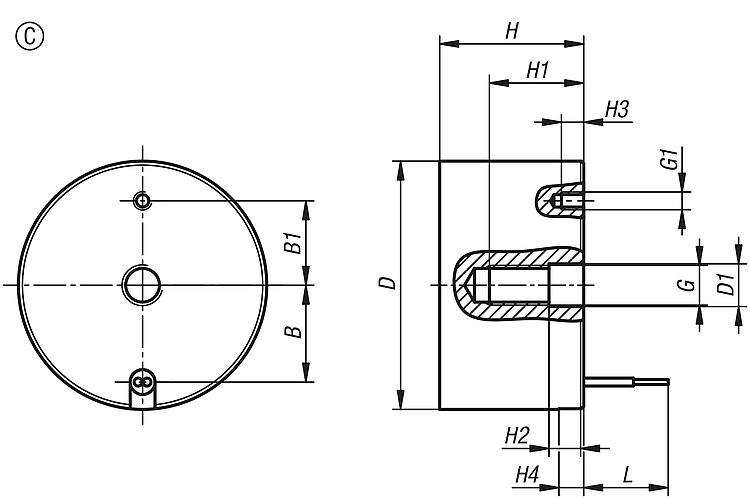

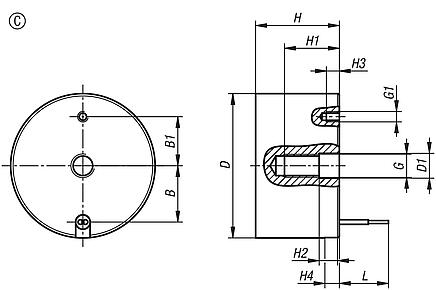

Order No.
| Form | B | B1 | D | D1 | G | G1 | H | H1 | H2 | H3 | H4 | L | Magnetic
force
N | W | Nom. tension
VDC | CAD | Acc. | Price | Order |
|---|
| 09132-050029 | C | 19,5 | 17 | 50 | 8 | M8 | M03 | 29 | 19 | 7 | 4,5 | 5 | 250 | 500 | 10,3 | 24 | | | on request | | | 09132-063029 | C | 25,5 | 20 | 63 | 10 | M8 | M03 | 29 | 18 | 8 | 5 | 3,5 | 500 | 960 | 33 | 24 | | | on request | |
|

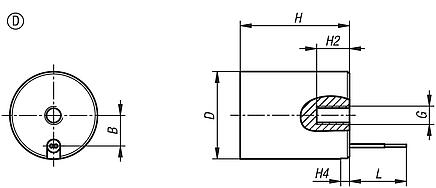

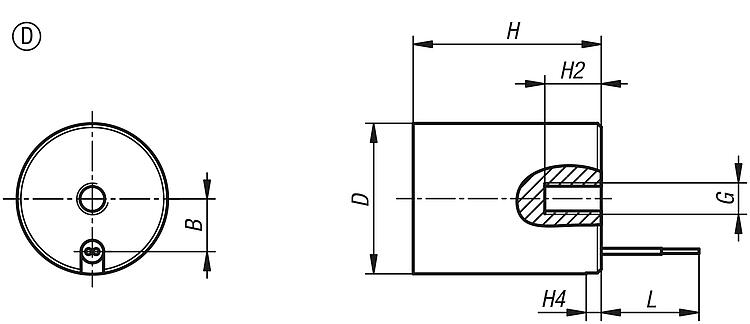

Order No.
| Form | B | D | G | H | H2 | H4 | L | Magnetic
force
N | W | Nom. tension
VDC | CAD | Acc. | Price | Order |
|---|
| 09132-020025 | D | 7 | 20 | M4 | 25 | 7,5 | 2 | 250 | 45 | 3,8 | 24 | | | on request | |
|
Order No.
| Form | B | D | D1 | D2 | G | G1 | H | H1 | H2 | H3 | H4 | L | Magnetic
force
N | W | Nom. tension
VDC | CAD | Acc. | Price | Order |
|---|
| 09132-100045 | E | 40 | 100 | 10 | 94 | M8 | M04 | 45 | 30 | 14 | 8 | 7 | 500 | 2800 | 58 | 24 | | | on request | |
|

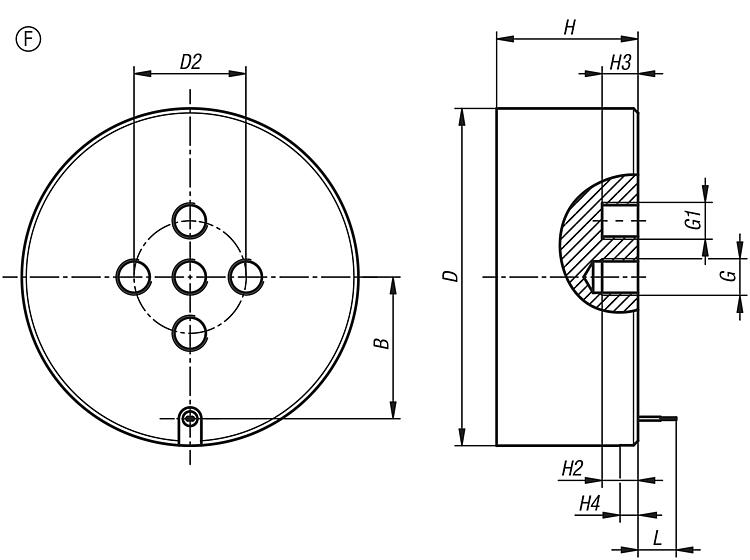

Order No.
| Form | B | D | D2 | G | G1 | H | H2 | H3 | H4 | L | Magnetic
force
N | W | Nom. tension
VDC | CAD | Acc. | Price | Order |
|---|
| 09132-150063 | F | 63 | 150 | 50 | M16 | M16 | 63 | 16 | 16 | 8 | 500 | 5000 | 58 | 24 | | | on request | |
|
