        Cylindrical drill bushes stainless steel DIN 179

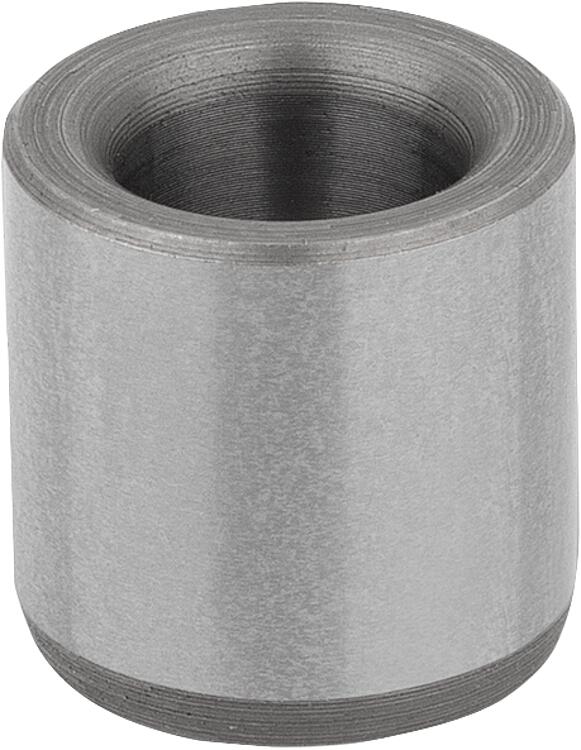

        Cylindrical drill bushes stainless steel DIN 179, Form B

Item description/product images

DescriptionMaterial:Stainless steelVersion:Hardened to HRc 56 ±1 and ground.Drawing reference:

Form B: Bore rounded at both ends

1) Lead-in chamfer or centring collar

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 08901_B Cylindrical drill bushes stainless steel DIN 179, Form B

263 kB

Drawings

Item selection/filter

Order No.	Form	D1	D2	L1	T	Product type	R	Price
08901-B0250X06	B	2,5	5	6	0,01	short	1	on request
08901-B0250X09	B	2,5	5	9	0,01	medium	1	on request
08901-B0260X06	B	2,6	5	6	0,01	short	1	on request
08901-B0260X09	B	2,6	5	9	0,01	medium	1	on request
08901-B0300X08	B	3	6	8	0,01	short	1	on request
08901-B0300X12	B	3	6	12	0,01	medium	1	on request
08901-B0400X08	B	4	7	8	0,01	short	1	on request
08901-B0400X12	B	4	7	12	0,01	medium	1	on request
08901-B0410X08	B	4,1	8	8	0,01	short	1	on request
08901-B0410X12	B	4,1	8	12	0,01	medium	1	on request
08901-B0500X08	B	5	8	8	0,01	short	1	on request
08901-B0500X12	B	5	8	12	0,01	medium	1	on request
08901-B0510X10	B	5,1	10	10	0,02	short	1,5	on request
08901-B0510X16	B	5,1	10	16	0,02	medium	1,5	on request
08901-B0550X10	B	5,5	10	10	0,02	short	1,5	on request
08901-B0550X16	B	5,5	10	16	0,02	medium	1,5	on request
08901-B0600X10	B	6	10	10	0,02	short	1,5	on request
08901-B0600X16	B	6	10	16	0,02	medium	1,5	on request
08901-B0610X10	B	6,1	12	10	0,02	short	1,5	on request
08901-B0610X16	B	6,1	12	16	0,02	medium	1,5	on request
08901-B0650X10	B	6,5	12	10	0,02	short	1,5	on request
08901-B0650X16	B	6,5	12	16	0,02	medium	1,5	on request
08901-B0700X10	B	7	12	10	0,02	short	1,5	on request
08901-B0700X16	B	7	12	16	0,02	medium	1,5	on request
08901-B0800X10	B	8	12	10	0,02	short	1,5	on request
08901-B0800X16	B	8	12	16	0,02	medium	1,5	on request
08901-B0810X12	B	8,1	15	12	0,02	short	2	on request
08901-B0810X20	B	8,1	15	20	0,02	medium	2	on request
08901-B0850X12	B	8,5	15	12	0,02	short	2	on request
08901-B0850X20	B	8,5	15	20	0,02	medium	2	on request
08901-B0900X12	B	9	15	12	0,02	short	2	on request
08901-B0900X20	B	9	15	20	0,02	medium	2	on request
08901-B1000X12	B	10	15	12	0,02	short	2	on request
08901-B1000X20	B	10	15	20	0,02	medium	2	on request
08901-B1200X12	B	12	18	12	0,02	short	2	on request
08901-B1200X20	B	12	18	20	0,02	medium	2	on request
08901-B1400X16	B	14	22	16	0,02	short	2	on request
08901-B1400X28	B	14	22	28	0,02	medium	2	on request
08901-B1500X16	B	15	22	16	0,02	short	2	on request
08901-B1500X28	B	15	22	28	0,02	medium	2	on request
08901-B1600X16	B	16	26	16	0,02	short	2	on request
08901-B1600X28	B	16	26	28	0,02	medium	2	on request
08901-B1800X16	B	18	26	16	0,02	short	2	on request
08901-B1800X28	B	18	26	28	0,02	medium	2	on request
08901-B2000X20	B	20	30	20	0,02	short	3	on request
08901-B2000X36	B	20	30	36	0,02	medium	3	on request
08901-B2200X20	B	22	30	20	0,02	short	3	on request
08901-B2200X36	B	22	30	36	0,02	medium	3	on request
08901-B2500X20	B	25	35	20	0,02	short	3	on request
08901-B2500X36	B	25	35	36	0,02	medium	3	on request
