        Position indicators

Item description/product images

DescriptionMaterial:Housing polyamide 6.
Hollow shaft steel.
Screen plastic.
Grub screw steel.Version:Impact-resistant housing.
Hollow shaft black oxidised.
Grub screw black.
Dial black, digits white.Note:Position indicators allow direct reading of input measurement values at a glance.
In addition, the value indicated per spindle rotation (corresponding spindle pitch) can be selected and the various indicator values are realised by a transmission gear. The position indicators are distinguished by their small construction with very clear display.
They are especially suitable for small spindle distances and small shaft diameters and have a torque support that is positioned in a hole on the side.

** At the 1st asterisk give assembly position and at the 2nd asterisk give the count direction (see sample order “assembly position, count direction”).Technical data:– Counter consisting of 3 10-position dials
– Height of figures about 4 mm
– Hollow shaft Ø 10 H7 mm
– Temperature resistant to 80 °C
– Oil and solvent resistantOn request:– Indicator for inchAccessory:– Reducing bushes 21940Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21901 Position indicators

201 kB

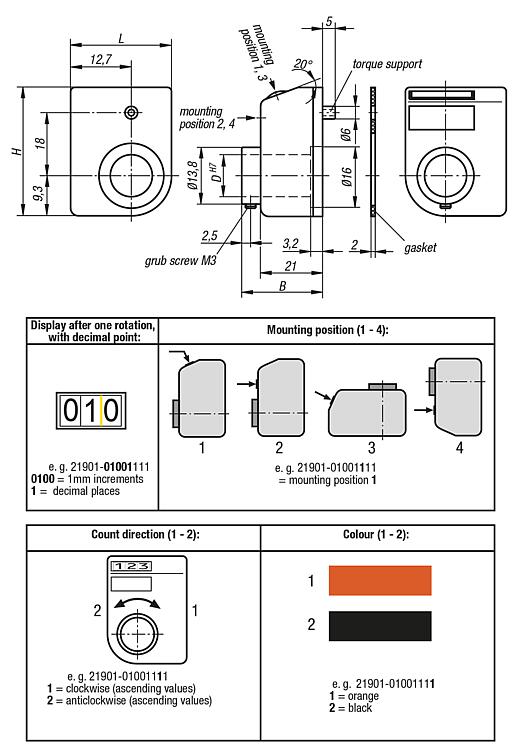

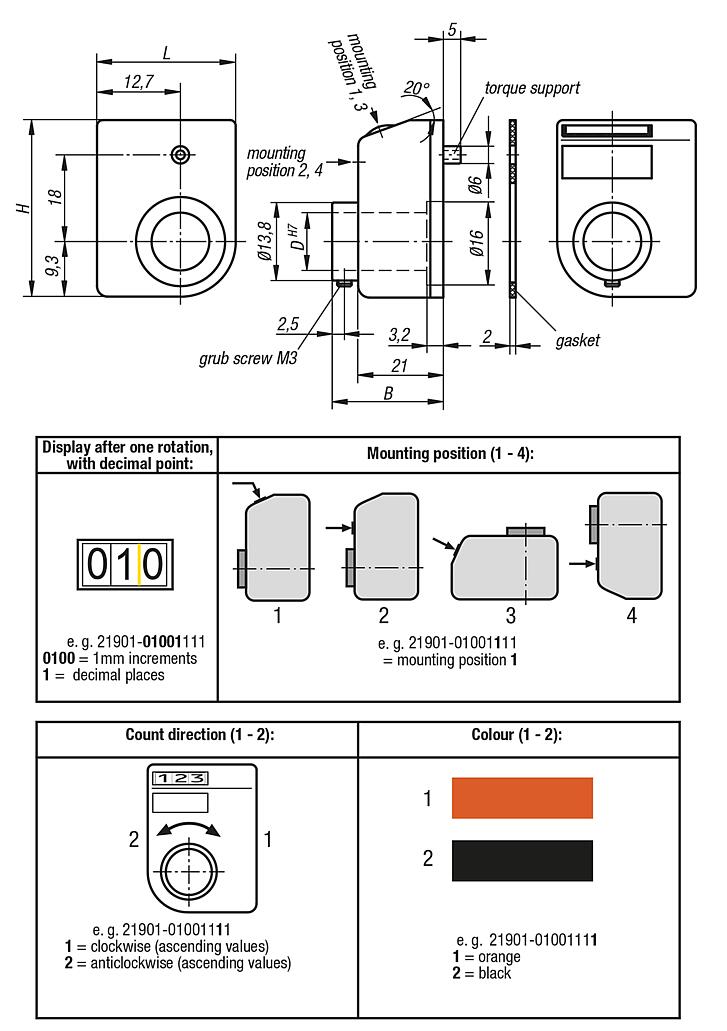

Drawings

Item selection/filter

Overview of items (compressed)

Order No.	Main colour	B	D	H	L	Pitch	Assembly position	Count direction	Indicator after one rotation	Decimal point in position	max. rpm	Price
21901-01001111	orange RAL 2004	26	10	33	22	1	1	1	01,0	1	500	on request
21901-01001121	orange RAL 2004	26	10	33	22	1	1	2	01,0	1	500	on request
21901-01001211	orange RAL 2004	26	10	33	22	1	2	1	01,0	1	500	on request
21901-01001221	orange RAL 2004	26	10	33	22	1	2	2	01,0	1	500	on request
21901-01001311	orange RAL 2004	26	10	33	22	1	3	1	01,0	1	500	on request
21901-01001321	orange RAL 2004	26	10	33	22	1	3	2	01,0	1	500	on request
21901-01001411	orange RAL 2004	26	10	33	22	1	4	1	01,0	1	500	on request
21901-01001421	orange RAL 2004	26	10	33	22	1	4	2	01,0	1	500	on request
21901-02001111	orange RAL 2004	26	10	33	22	2	1	1	02,0	1	500	on request
21901-02001121	orange RAL 2004	26	10	33	22	2	1	2	02,0	1	500	on request
21901-02001211	orange RAL 2004	26	10	33	22	2	2	1	02,0	1	500	on request
21901-02001311	orange RAL 2004	26	10	33	22	2	3	1	02,0	1	500	on request
21901-02001321	orange RAL 2004	26	10	33	22	2	3	2	02,0	1	500	on request
21901-02001411	orange RAL 2004	26	10	33	22	2	4	1	02,0	1	500	on request
21901-02001421	orange RAL 2004	26	10	33	22	2	4	2	02,0	1	500	on request
21901-02501111	orange RAL 2004	26	10	33	22	2,5	1	1	02,5	1	500	on request
21901-02501121	orange RAL 2004	26	10	33	22	2,5	1	2	02,5	1	500	on request
21901-02501221	orange RAL 2004	26	10	33	22	2,5	2	2	02,5	1	500	on request
21901-02501311	orange RAL 2004	26	10	33	22	2,5	3	1	02,5	1	500	on request
21901-02501321	orange RAL 2004	26	10	33	22	2,5	3	2	02,5	1	500	on request
21901-02501411	orange RAL 2004	26	10	33	22	2,5	4	1	02,5	1	500	on request
21901-02501421	orange RAL 2004	26	10	33	22	2,5	4	2	02,5	1	500	on request
21901-03001111	orange RAL 2004	26	10	33	22	3	1	1	03,0	1	500	on request
21901-03001121	orange RAL 2004	26	10	33	22	3	1	2	03,0	1	500	on request
21901-03001211	orange RAL 2004	26	10	33	22	3	2	1	03,0	1	500	on request
21901-03001221	orange RAL 2004	26	10	33	22	3	2	2	03,0	1	500	on request
21901-03001311	orange RAL 2004	26	10	33	22	3	3	1	03,0	1	500	on request
21901-03001321	orange RAL 2004	26	10	33	22	3	3	2	03,0	1	500	on request
21901-03001421	orange RAL 2004	26	10	33	22	3	4	2	03,0	1	500	on request
21901-04001111	orange RAL 2004	26	10	33	22	4	1	1	04,0	1	375	on request
21901-04001121	orange RAL 2004	26	10	33	22	4	1	2	04,0	1	375	on request
21901-04001211	orange RAL 2004	26	10	33	22	4	2	1	04,0	1	375	on request
21901-04001221	orange RAL 2004	26	10	33	22	4	2	2	04,0	1	375	on request
21901-04001311	orange RAL 2004	26	10	33	22	4	3	1	04,0	1	375	on request
21901-04001321	orange RAL 2004	26	10	33	22	4	3	2	04,0	1	375	on request
21901-04001411	orange RAL 2004	26	10	33	22	4	4	1	04,0	1	375	on request
21901-04001421	orange RAL 2004	26	10	33	22	4	4	2	04,0	1	375	on request
21901-05001111	orange RAL 2004	26	10	33	22	5	1	1	05,0	1	300	on request
21901-05001121	orange RAL 2004	26	10	33	22	5	1	2	05,0	1	300	on request
21901-05001211	orange RAL 2004	26	10	33	22	5	2	1	05,0	1	300	on request
21901-05001221	orange RAL 2004	26	10	33	22	5	2	2	05,0	1	300	on request
21901-05001321	orange RAL 2004	26	10	33	22	5	3	2	05,0	1	300	on request
21901-05001411	orange RAL 2004	26	10	33	22	5	4	1	05,0	1	300	on request
21901-05001421	orange RAL 2004	26	10	33	22	5	4	2	05,0	1	300	on request
21901-06001111	orange RAL 2004	26	10	33	22	6	1	1	06,0	1	250	on request
21901-06001121	orange RAL 2004	26	10	33	22	6	1	2	06,0	1	250	on request
21901-06001221	orange RAL 2004	26	10	33	22	6	2	2	06,0	1	250	on request
21901-06001311	orange RAL 2004	26	10	33	22	6	3	1	06,0	1	250	on request
21901-06001321	orange RAL 2004	26	10	33	22	6	3	2	06,0	1	250	on request
21901-06001411	orange RAL 2004	26	10	33	22	6	4	1	06,0	1	250	on request
21901-06001421	orange RAL 2004	26	10	33	22	6	4	2	06,0	1	250	on request
21901-08001111	orange RAL 2004	26	10	33	22	8	1	1	08,0	1	180	on request
21901-08001121	orange RAL 2004	26	10	33	22	8	1	2	08,0	1	180	on request
21901-08001211	orange RAL 2004	26	10	33	22	8	2	1	08,0	1	180	on request
21901-08001221	orange RAL 2004	26	10	33	22	8	2	2	08,0	1	180	on request
21901-08001311	orange RAL 2004	26	10	33	22	8	3	1	08,0	1	180	on request
21901-08001321	orange RAL 2004	26	10	33	22	8	3	2	08,0	1	180	on request
21901-08001421	orange RAL 2004	26	10	33	22	8	4	2	08,0	1	180	on request
21901-10001111	orange RAL 2004	26	10	33	22	10	1	1	10,0	1	150	on request
21901-10001211	orange RAL 2004	26	10	33	22	10	2	1	10,0	1	150	on request
21901-10001221	orange RAL 2004	26	10	33	22	10	2	2	10,0	1	150	on request
21901-10001311	orange RAL 2004	26	10	33	22	10	3	1	10,0	1	150	on request
21901-10001321	orange RAL 2004	26	10	33	22	10	3	2	10,0	1	150	on request
21901-10001411	orange RAL 2004	26	10	33	22	10	4	1	10,0	1	150	on request
21901-10001421	orange RAL 2004	26	10	33	22	10	4	2	10,0	1	150	on request
21901-01001112	black	26	10	33	22	1	1	1	01,0	1	500	on request
21901-01001122	black	26	10	33	22	1	1	2	01,0	1	500	on request
21901-01001212	black	26	10	33	22	1	2	1	01,0	1	500	on request
21901-01001312	black	26	10	33	22	1	3	1	01,0	1	500	on request
21901-01001322	black	26	10	33	22	1	3	2	01,0	1	500	on request
21901-01001412	black	26	10	33	22	1	4	1	01,0	1	500	on request
21901-01001422	black	26	10	33	22	1	4	2	01,0	1	500	on request
21901-02001112	black	26	10	33	22	2	1	1	02,0	1	500	on request
21901-02001122	black	26	10	33	22	2	1	2	02,0	1	500	on request
21901-02001212	black	26	10	33	22	2	2	1	02,0	1	500	on request
21901-02001222	black	26	10	33	22	2	2	2	02,0	1	500	on request
21901-02001312	black	26	10	33	22	2	3	1	02,0	1	500	on request
21901-02001322	black	26	10	33	22	2	3	2	02,0	1	500	on request
21901-02001412	black	26	10	33	22	2	4	1	02,0	1	500	on request
21901-02001422	black	26	10	33	22	2	4	2	02,0	1	500	on request
21901-02501112	black	26	10	33	22	2,5	1	1	02,5	1	500	on request
21901-02501212	black	26	10	33	22	2,5	2	1	02,5	1	500	on request
21901-02501222	black	26	10	33	22	2,5	2	2	02,5	1	500	on request
21901-02501322	black	26	10	33	22	2,5	3	2	02,5	1	500	on request
21901-02501412	black	26	10	33	22	2,5	4	1	02,5	1	500	on request
21901-02501422	black	26	10	33	22	2,5	4	2	02,5	1	500	on request
21901-03001112	black	26	10	33	22	3	1	1	03,0	1	500	on request
21901-03001122	black	26	10	33	22	3	1	2	03,0	1	500	on request
21901-03001212	black	26	10	33	22	3	2	1	03,0	1	500	on request
21901-03001222	black	26	10	33	22	3	2	2	03,0	1	500	on request
21901-03001312	black	26	10	33	22	3	3	1	03,0	1	500	on request
21901-03001322	black	26	10	33	22	3	3	2	03,0	1	500	on request
21901-03001412	black	26	10	33	22	3	4	1	03,0	1	500	on request
21901-03001422	black	26	10	33	22	3	4	2	03,0	1	500	on request
21901-04001112	black	26	10	33	22	4	1	1	04,0	1	375	on request
21901-04001122	black	26	10	33	22	4	1	2	04,0	1	375	on request
21901-04001212	black	26	10	33	22	4	2	1	04,0	1	375	on request
21901-04001312	black	26	10	33	22	4	3	1	04,0	1	375	on request
21901-04001322	black	26	10	33	22	4	3	2	04,0	1	375	on request
21901-04001412	black	26	10	33	22	4	4	1	04,0	1	375	on request
21901-04001422	black	26	10	33	22	4	4	2	04,0	1	375	on request
21901-05001112	black	26	10	33	22	5	1	1	05,0	1	300	on request
21901-05001122	black	26	10	33	22	5	1	2	05,0	1	300	on request
21901-05001212	black	26	10	33	22	5	2	1	05,0	1	300	on request
21901-05001222	black	26	10	33	22	5	2	2	05,0	1	300	on request
21901-05001312	black	26	10	33	22	5	3	1	05,0	1	300	on request
21901-05001412	black	26	10	33	22	5	4	1	05,0	1	300	on request
21901-05001422	black	26	10	33	22	5	4	2	05,0	1	300	on request
21901-06001112	black	26	10	33	22	6	1	1	06,0	1	250	on request
21901-06001122	black	26	10	33	22	6	1	2	06,0	1	250	on request
21901-06001212	black	26	10	33	22	6	2	1	06,0	1	250	on request
21901-06001222	black	26	10	33	22	6	2	2	06,0	1	250	on request
21901-06001312	black	26	10	33	22	6	3	1	06,0	1	250	on request
21901-06001322	black	26	10	33	22	6	3	2	06,0	1	250	on request
21901-06001412	black	26	10	33	22	6	4	1	06,0	1	250	on request
21901-06001422	black	26	10	33	22	6	4	2	06,0	1	250	on request
21901-08001112	black	26	10	33	22	8	1	1	08,0	1	180	on request
21901-08001122	black	26	10	33	22	8	1	2	08,0	1	180	on request
21901-08001212	black	26	10	33	22	8	2	1	08,0	1	180	on request
21901-08001222	black	26	10	33	22	8	2	2	08,0	1	180	on request
21901-08001312	black	26	10	33	22	8	3	1	08,0	1	180	on request
21901-08001322	black	26	10	33	22	8	3	2	08,0	1	180	on request
21901-08001412	black	26	10	33	22	8	4	1	08,0	1	180	on request
21901-08001422	black	26	10	33	22	8	4	2	08,0	1	180	on request
21901-10001112	black	26	10	33	22	10	1	1	10,0	1	150	on request
21901-10001122	black	26	10	33	22	10	1	2	10,0	1	150	on request
21901-10001212	black	26	10	33	22	10	2	1	10,0	1	150	on request
21901-10001222	black	26	10	33	22	10	2	2	10,0	1	150	on request
21901-10001312	black	26	10	33	22	10	3	1	10,0	1	150	on request
21901-10001322	black	26	10	33	22	10	3	2	10,0	1	150	on request
21901-10001412	black	26	10	33	22	10	4	1	10,0	1	150	on request
21901-10001422	black	26	10	33	22	10	4	2	10,0	1	150	on request
