        Sprockets, duplex, 3/4" x 7/16" DIN ISO 606, ready to install

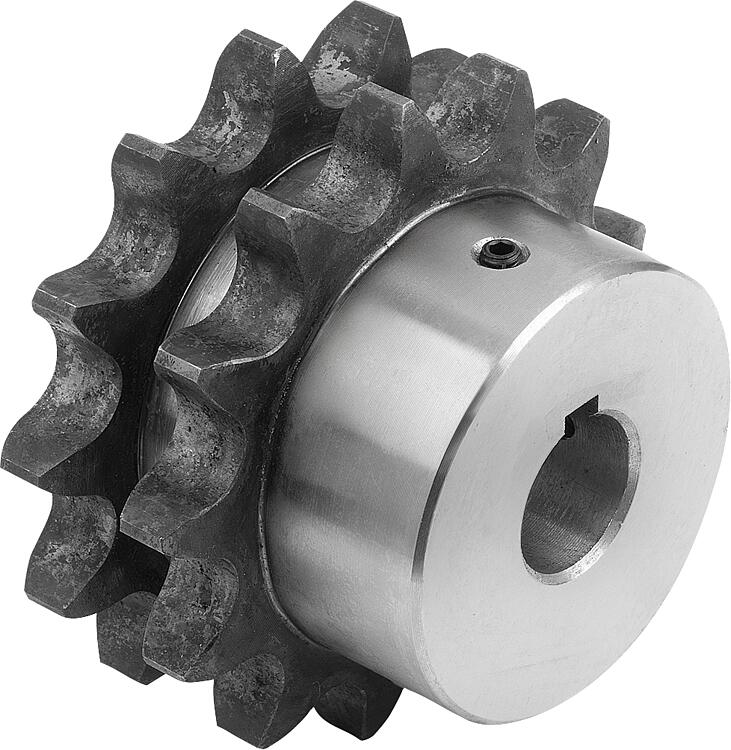

Item description/product images

DescriptionMaterial:Steel C45.Version:Bright.
Teeth inductively hardened ~HRC 50.Note:Ready to install sprockets with hub on one side for DIN ISO 606 duplex roller chains. Teeth are milled and induction-hardened.
DIN 6885 / BS 4235 keyway. The keyway is aligned with the tooth tip.
With two grub screws. One thread aligned to the centre of the keyway, the other offset by 90°.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 22250-05 Sprockets, duplex, 3/4" x 7/16" DIN ISO 606, ready to install

299 kB

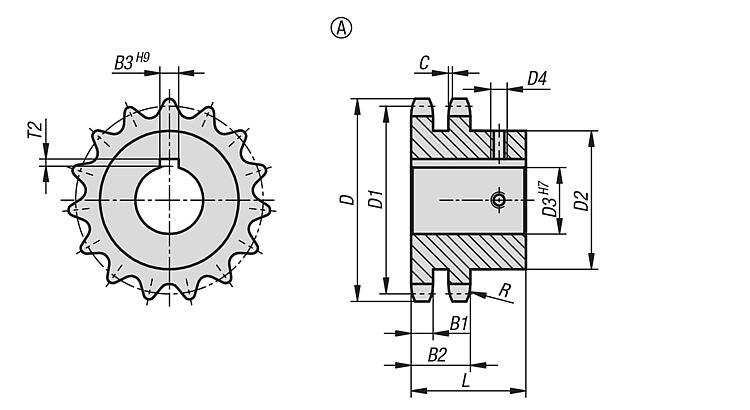

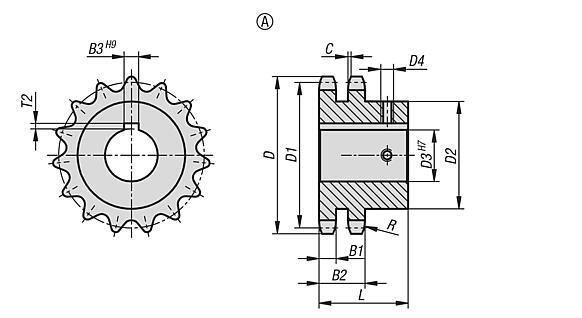

Drawings

Item selection/filter

Order No.	Form	B1	B2	B3	C	D	D1	D2	D3	D4	ISO No.	L	R	T2	Pitch inch	Pitch mm	No. of teeth	Price
22250-05-2034071601120	A	10,8	30,3	6	2	75	67,61	46	20	M5	12 B-2	54	19	2,8	3/4X7/16	19,05 x 11,68	11	on request
22250-05-2034071601125	A	10,8	30,3	8	2	75	67,61	46	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	11	on request
22250-05-2034071601130	B	10,8	30,3	8	2	75	67,61	51	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	11	on request
22250-05-2034071601220	A	10,8	30,3	6	2	81,5	73,61	52	20	M5	12 B-2	54	19	2,8	3/4X7/16	19,05 x 11,68	12	on request
22250-05-2034071601225	A	10,8	30,3	8	2	81,5	73,61	52	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	12	on request
22250-05-2034071601230	A	10,8	30,3	8	2	81,5	73,61	52	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	12	on request
22250-05-2034071601235	B	10,8	30,3	10	2	81,5	73,61	56	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	12	on request
22250-05-2034071601320	A	10,8	30,3	6	2	87,5	79,59	58	20	M5	12 B-2	54	19	2,8	3/4X7/16	19,05 x 11,68	13	on request
22250-05-2034071601325	A	10,8	30,3	8	2	87,5	79,59	58	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	13	on request
22250-05-2034071601330	A	10,8	30,3	8	2	87,5	79,59	58	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	13	on request
22250-05-2034071601335	A	10,8	30,3	10	2	87,5	79,59	58	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	13	on request
22250-05-2034071601420	A	10,8	30,3	6	2	93,6	85,61	64	20	M5	12 B-2	54	19	2,8	3/4X7/16	19,05 x 11,68	14	on request
22250-05-2034071601425	A	10,8	30,3	8	2	93,6	85,61	64	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	14	on request
22250-05-2034071601430	A	10,8	30,3	8	2	93,6	85,61	64	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	14	on request
22250-05-2034071601435	A	10,8	30,3	10	2	93,6	85,61	64	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	14	on request
22250-05-2034071601520	A	10,8	30,3	6	2	99,8	91,63	70	20	M5	12 B-2	54	19	2,8	3/4X7/16	19,05 x 11,68	15	on request
22250-05-2034071601525	A	10,8	30,3	8	2	99,8	91,63	70	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	15	on request
22250-05-2034071601530	A	10,8	30,3	8	2	99,8	91,63	70	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	15	on request
22250-05-2034071601535	A	10,8	30,3	10	2	99,8	91,63	70	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	15	on request
22250-05-2034071601625	A	10,8	30,3	8	2	105,5	97,65	75	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	16	on request
22250-05-2034071601630	A	10,8	30,3	8	2	105,5	97,65	75	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	16	on request
22250-05-2034071601635	A	10,8	30,3	10	2	105,5	97,65	75	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	16	on request
22250-05-2034071601640	A	10,8	30,3	12	2	105,5	97,65	75	40	M10	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	16	on request
22250-05-2034071601725	A	10,8	30,3	8	2	111,5	103,67	80	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	17	on request
22250-05-2034071601730	A	10,8	30,3	8	2	111,5	103,67	80	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	17	on request
22250-05-2034071601735	A	10,8	30,3	10	2	111,5	103,67	80	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	17	on request
22250-05-2034071601740	A	10,8	30,3	12	2	111,5	103,67	80	40	M10	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	17	on request
22250-05-2034071601825	A	10,8	30,3	8	2	118	109,71	80	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	18	on request
22250-05-2034071601830	A	10,8	30,3	8	2	118	109,71	80	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	18	on request
22250-05-2034071601835	A	10,8	30,3	10	2	118	109,71	80	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	18	on request
22250-05-2034071601840	A	10,8	30,3	12	2	118	109,71	80	40	M10	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	18	on request
22250-05-2034071601925	A	10,8	30,3	8	2	124,2	115,75	80	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	19	on request
22250-05-2034071601930	A	10,8	30,3	8	2	124,2	115,75	80	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	19	on request
22250-05-2034071601935	A	10,8	30,3	10	2	124,2	115,75	80	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	19	on request
22250-05-2034071601940	A	10,8	30,3	12	2	124,2	115,75	80	40	M10	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	19	on request
22250-05-2034071602025	A	10,8	30,3	8	2	129,7	121,78	80	25	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	20	on request
22250-05-2034071602030	A	10,8	30,3	8	2	129,7	121,78	80	30	M6	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	20	on request
22250-05-2034071602035	A	10,8	30,3	10	2	129,7	121,78	80	35	M8	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	20	on request
22250-05-2034071602040	A	10,8	30,3	12	2	129,7	121,78	80	40	M10	12 B-2	54	19	3,3	3/4X7/16	19,05 x 11,68	20	on request
22250-05-2034071602125	A	10,8	30,3	8	2	136	127,82	90	25	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	21	on request
22250-05-2034071602130	A	10,8	30,3	8	2	136	127,82	90	30	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	21	on request
22250-05-2034071602135	A	10,8	30,3	10	2	136	127,82	90	35	M8	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	21	on request
22250-05-2034071602140	A	10,8	30,3	12	2	136	127,82	90	40	M10	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	21	on request
22250-05-2034071602145	A	10,8	30,3	14	2	136	127,82	90	45	M12	12 B-2	59	19	3,8	3/4X7/16	19,05 x 11,68	21	on request
22250-05-2034071602225	A	10,8	30,3	8	2	141,8	133,86	90	25	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	22	on request
22250-05-2034071602230	A	10,8	30,3	8	2	141,8	133,86	90	30	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	22	on request
22250-05-2034071602235	A	10,8	30,3	10	2	141,8	133,86	90	35	M8	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	22	on request
22250-05-2034071602240	A	10,8	30,3	12	2	141,8	133,86	90	40	M10	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	22	on request
22250-05-2034071602325	A	10,8	30,3	8	2	149	139,9	90	25	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	23	on request
22250-05-2034071602330	A	10,8	30,3	8	2	149	139,9	90	30	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	23	on request
22250-05-2034071602335	A	10,8	30,3	10	2	149	139,9	90	35	M8	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	23	on request
22250-05-2034071602340	A	10,8	30,3	12	2	149	139,9	90	40	M10	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	23	on request
22250-05-2034071602345	A	10,8	30,3	14	2	149	139,9	90	45	M12	12 B-2	59	19	3,8	3/4X7/16	19,05 x 11,68	23	on request
22250-05-2034071602425	A	10,8	30,3	8	2	153,9	145,94	90	25	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	24	on request
22250-05-2034071602430	A	10,8	30,3	8	2	153,9	145,94	90	30	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	24	on request
22250-05-2034071602435	A	10,8	30,3	10	2	153,9	145,94	90	35	M8	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	24	on request
22250-05-2034071602440	A	10,8	30,3	12	2	153,9	145,94	90	40	M10	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	24	on request
22250-05-2034071602525	A	10,8	30,3	8	2	160	152	90	25	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	25	on request
22250-05-2034071602530	A	10,8	30,3	8	2	160	152	90	30	M6	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	25	on request
22250-05-2034071602535	A	10,8	30,3	10	2	160	152	90	35	M8	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	25	on request
22250-05-2034071602540	A	10,8	30,3	12	2	160	152	90	40	M10	12 B-2	59	19	3,3	3/4X7/16	19,05 x 11,68	25	on request
