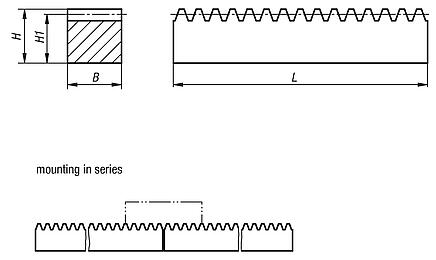

22420Gear racks in steel toothing milled, straight teeth, engagement... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel 1.0503 (C45).Version:Milled toothing, straight teeth.

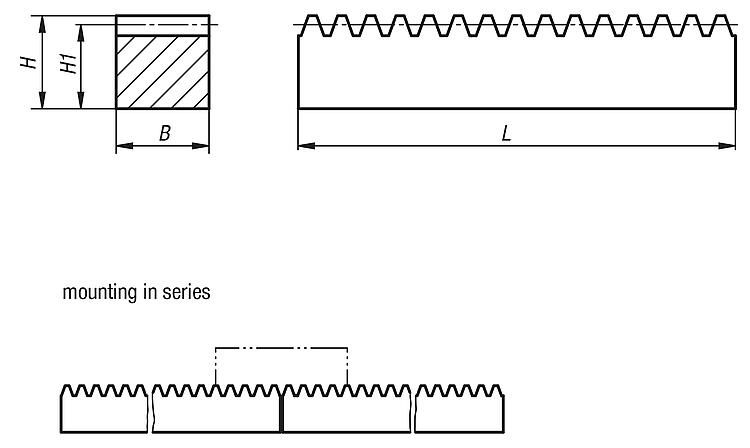

Engagement angle 20°, bright.Note:All gear racks from module 2, with the exception of nominal lengths of 500 mm, are suitable for consecutive mounting.
As the gear racks do not have teeth on the butt ends, small gaps occur during assembly. However, these are irrelevant for the running of the gears.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Module | B | H
| H1 | L
Nom. length | CAD | Acc. | Price | Order |
|---|
| 22420-010150X1000 | 1 | 15 | 15 | 14 | 1000 |  | | on request | | | 22420-010150X2000 | 1 | 15 | 15 | 14 | 2000 | | | on request | | | 22420-010150X500 | 1 | 15 | 15 | 14 | 500 | | | on request | | | 22420-015170X1000 | 1,5 | 17 | 17 | 15,5 | 1000 | | | on request | | | 22420-015170X2000 | 1,5 | 17 | 17 | 15,5 | 2000 | | | on request | | | 22420-015170X500 | 1,5 | 17 | 17 | 15,5 | 500 | | | on request | | | 22420-020200X1000 | 2 | 20 | 20 | 18 | 1000 | | | on request | | | 22420-020200X2000 | 2 | 20 | 20 | 18 | 2000 | | | on request | | | 22420-020200X500 | 2 | 20 | 20 | 18 | 500 | | | on request | | | 22420-025250X1000 | 2,5 | 25 | 25 | 22,5 | 1000 | | | on request | | | 22420-025250X2000 | 2,5 | 25 | 25 | 22,5 | 2000 | | | on request | | | 22420-025250X500 | 2,5 | 25 | 25 | 22,5 | 500 | | | on request | | | 22420-030300X1000 | 3 | 30 | 30 | 27 | 1000 | | | on request | | | 22420-030300X2000 | 3 | 30 | 30 | 27 | 2000 | | | on request | | | 22420-030300X500 | 3 | 30 | 30 | 27 | 500 | | | on request | | | 22420-040300X1000 | 4 | 30 | 30 | 26 | 1000 | | | on request | | | 22420-040300X2000 | 4 | 30 | 30 | 26 | 2000 | | | on request | | | 22420-040400X500 | 4 | 40 | 40 | 36 | 500 | | | on request | | | 22420-040400X1000 | 4 | 40 | 40 | 36 | 1000 | | | on request | | | 22420-040400X2000 | 4 | 40 | 40 | 36 | 2000 | | | on request | | | 22420-040400X3000 | 4 | 40 | 40 | 36 | 3000 | | | on request | | | 22420-050500X500 | 5 | 50 | 50 | 45 | 500 | | | on request | | | 22420-050500X1000 | 5 | 50 | 50 | 45 | 1000 | | | on request | | | 22420-050500X2000 | 5 | 50 | 50 | 45 | 2000 | | | on request | | | 22420-050500X3000 | 5 | 50 | 50 | 45 | 3000 | | | on request | | | 22420-060600X1000 | 6 | 60 | 60 | 54 | 1000 | | | on request | | | 22420-060600X2000 | 6 | 60 | 60 | 54 | 2000 | | | on request | | | 22420-080800X1000 | 8 | 80 | 80 | 72 | 1000 | | | on request | | | 22420-080800X2000 | 8 | 80 | 80 | 72 | 2000 | | | on request | |
