27877-41_BPiano hinges, stainless steel with double joint |
go back |
|
Item description/product images |
|
|

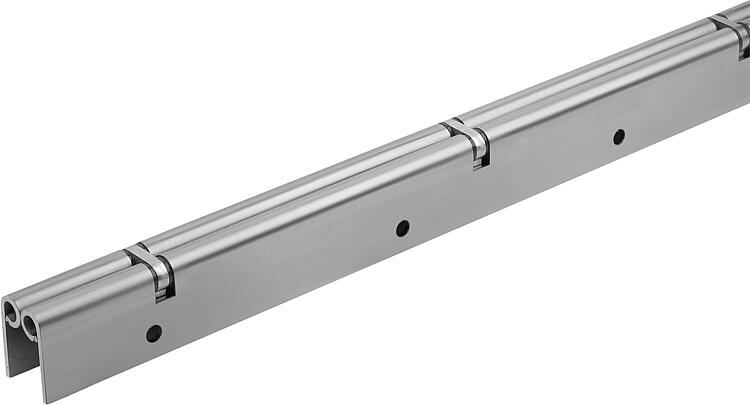

DescriptionProduct description:The piano hinge with double joint was developed for complex opening geometries. The double-joint kinematics (two parallel axes of rotation), ensure doors or hatches can be guided around protruding edges or seals without jamming.Material:Version:Stainless steel bright.
Aluminium, transparent anodised.Note:The opening angle is 180°.
Seals must be ordered separately.
The hinges have no holes.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Form definition | Main
material | Surface finish
body | B | A | A1 | A2 | A3 | B1 | B2 | B3 | B4 | B5 | D | D1 | H | H1 | CAD | Acc. | Price | Order |
|---|
| 27877-41-11600480 | B | drilled | stainless steel A2 | bright | 480 | 60,5 | 42,5 | 10,5 | 20,5 | 7 | 100 | 40 | 130 | 42,5 | 5,5 | 6 | 25 | 15 |  | | on request | | | 27877-41-11602495 | B | drilled | stainless steel A2 | bright | 2495 | 60,5 | 42,5 | 10,5 | 20,5 | 7 | 100 | 47,5 | 130 | 73,6 | 5,5 | 6 | 25 | 15 | | | on request | |
