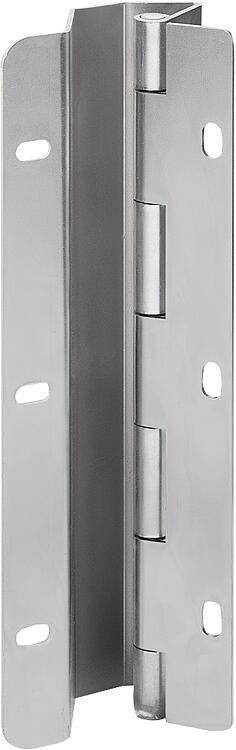

        Piano hinges, steel, in-frame, with gooseneck and 120° opening angle

Item description/product images

DescriptionProduct description:Piano hinges with gooseneck are the ideal solution for demanding sheet metal applications where the hinges need to be completely concealed from outside view. The special geometry ensures a precise opening angle of 120° and give a clear, uninterrupted surface design for your housing.Material:Body steel.
Pin stainless steel.Version:Steel electro zinc-plated.Note:Opening angle 120°.

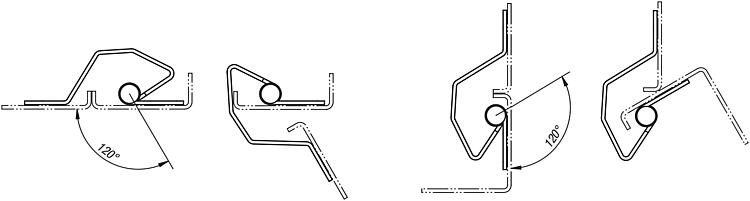

For on-frame or in-frame mounting
Elongated holes for better adjustment.
These hinges are recommended for plates with a thickness of up to 2 mm.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27877-81 Piano hinges, steel, in-frame, with gooseneck and 120° opening angle

137 kB

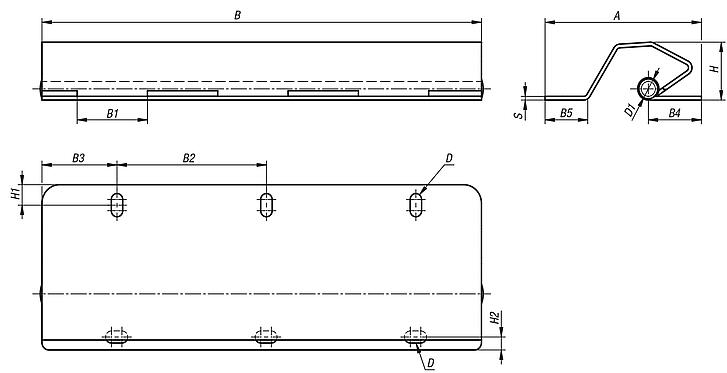

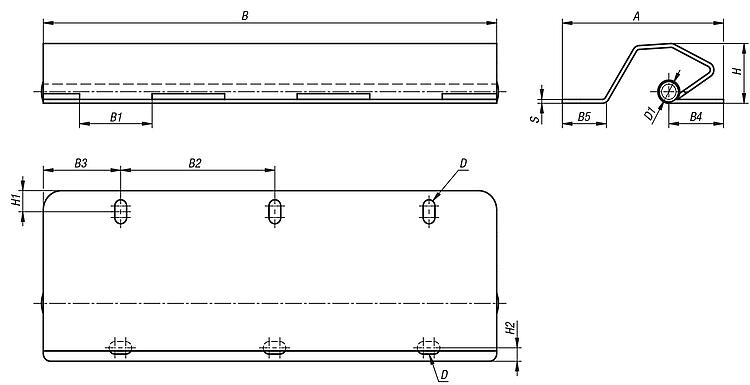

Drawings

Item selection/filter

Order No.	Surface finish body	B	A	B1	B2	B3	B4	B5	D	D1	H	H1	H2	S	Price
27877-81-100590250	electro zinc-plated	250	89,2	40	85	40	30,2	24,6	6,5x12,5	8	31,15	11	7	2	on request
27877-81-100590500	electro zinc-plated	500	89,2	40	85	37,3	30,2	24,6	6,5x12,5	8	31,15	11	7	2	on request
27877-81-100591000	electro zinc-plated	1000	89,2	40	85	32,5	30,2	24,6	6,5x12,5	8	31,15	11	7	2	on request
