27878Concealed hinges steel or stainless steel, folded edge up to 20... |
go back |
|

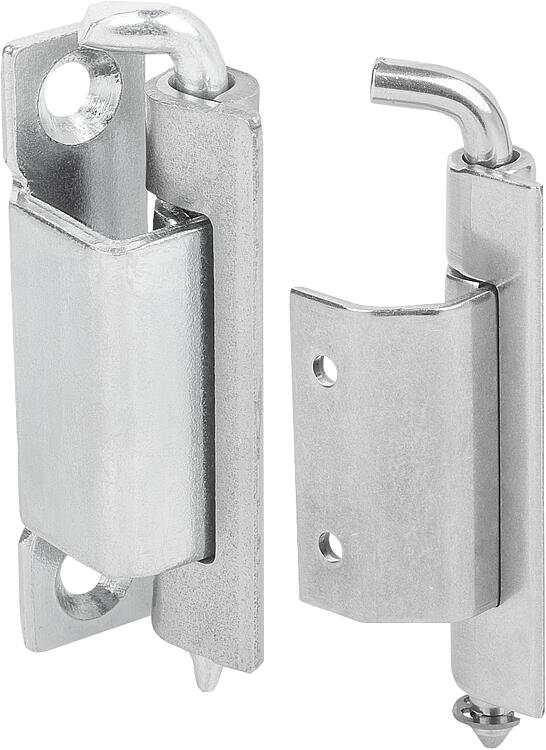

Item description/product images |
|
|
DescriptionProduct description:Concealed hinges are usually employed for functional or visual reasons. The hinge is mounted on the inside edge of the door and frame and is only visible when the door is open. Material:Version:Door part, frame part and pin steel, untreated or electro zinc-plated.
Door part, frame part and pin bright stainless steel.
Locking sleeve black.Note:For on-frame doors.
Hinges not visible.
Folded edge 16, 18 or 20 mm.
For right or left use.
Opening angle 115 or 120°.
Weld-on door part.
Form A: Hinge pin secured by sleeve.Application:- Machine and plant construction
- Switchboxes and control housings
- Medical and laboratory technology
- Transport and conveyor systemsDrawing reference:1) Folded edge
2) Fastening type frame part: weld-on
3) Fastening type frame part: screw-on
4) Pin version: without slot
5) Pin version: with slot incl. DIN 6799 locking washer
6) Pin version: with slot incl. O-ring
7) Locking sleeve
8) Weld bead
9) Reinforced
10) Fastening with M5 countersunk screws
11) Notch in the door DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

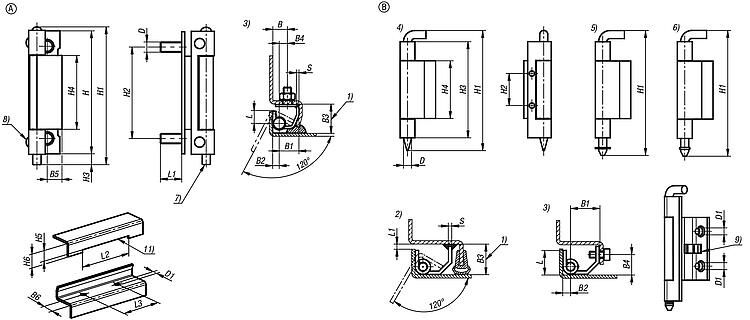

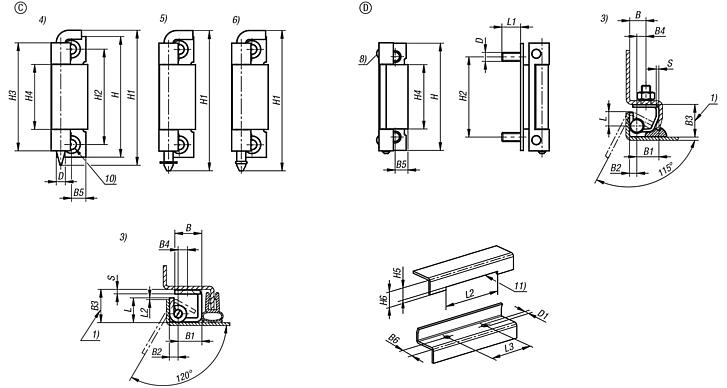

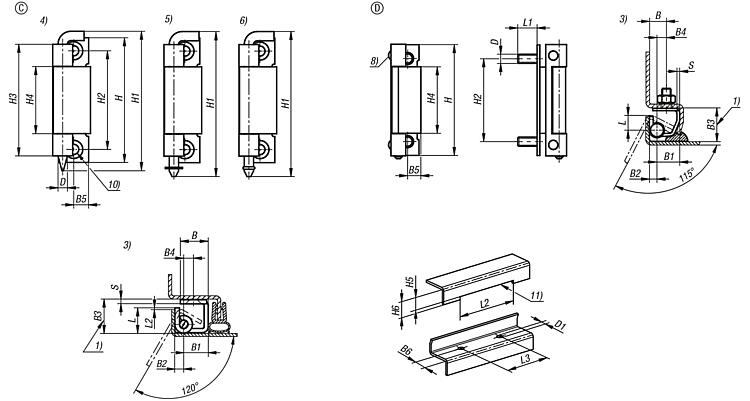

Drawings (total overview) |

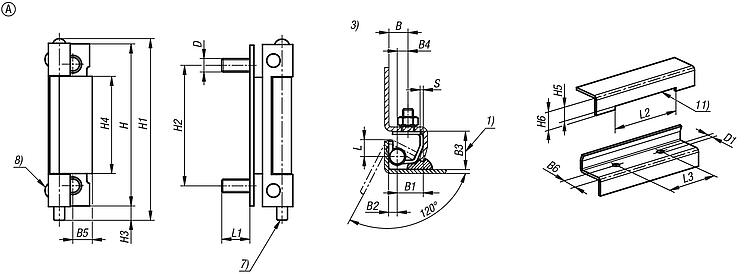

Concealed hinges steel or stainless steel, folded edge up to 20 mm, Form A |
More information |
| Order No. | Form | Pin version
| Pin material | Frame part fastening | Frame part material | Frame part surface finish | Main
material | CAD | Acc. | Price | Order |
|---|
| 27878-0111 | A | pressed in | stainless steel 1.4305 | screw on | steel | electro zinc-plated | steel |  | | on request | |
| Order No. | B | B1 | B2 | B3 | B4 | B5 | B6 | D | D1 | H | H1 | H2 | H3 | H4 | H5 | H6 | L | L1 | L2 | L3 | S | CAD | Acc. | Price | Order |
|---|
| 27878-0111 | 12 | 12,3 | 4 | 16 | 5,3 | 7 | 14 | M5 | 5,5 | 60 | 71,8 | 45 | 9,3 | 36 | 13 | 16 | 7,3 | 10,5 | 62 | 45 | 1,5 | | | on request | |
|

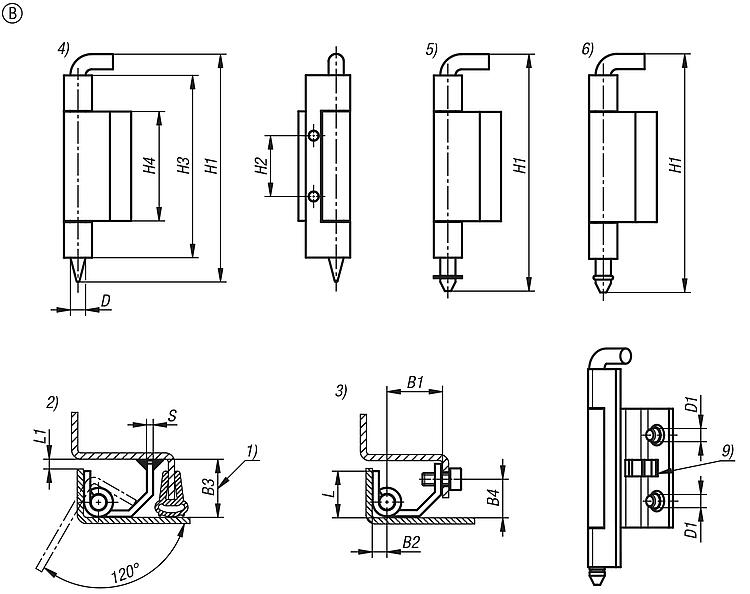

Concealed hinges steel or stainless steel, folded edge up to 20 mm, Form B
|
More information |
| Order No. | Form | Product type | Pin version
| Pin material | Frame part fastening | Frame part material | CAD | Acc. | Price | Order |
|---|
| 27878-0222 | B | - | without slot | steel | - | steel | | | on request | | | 27878-0223 | B | - | - | steel | - | steel | | | on request | | | 27878-0224 | B | - | - | steel | - | steel | | | on request | | | 27878-02221 | B | intensified | without slot | steel | - | steel | | | on request | | | 27878-02231 | B | intensified | - | steel | - | steel | | | on request | | | 27878-02241 | B | intensified | - | steel | - | steel | | | on request | | | 27878-0212 | B | - | without slot | steel | screw on | steel | | | on request | | | 27878-0213 | B | - | - | steel | screw on | steel | | | on request | | | 27878-0214 | B | - | - | steel | screw on | steel | | | on request | | | 27878-02121 | B | intensified | without slot | steel | screw on | steel | | | on request | | | 27878-02131 | B | intensified | - | steel | screw on | steel | | | on request | | | 27878-02141 | B | intensified | - | steel | screw on | steel | | | on request | | | 27878-1222 | B | - | without slot | Stainless steel 1.4301 | - | Stainless steel 1.4301 | | | on request | | | 27878-1223 | B | - | - | Stainless steel 1.4301 | - | Stainless steel 1.4301 | | | on request | | | 27878-1224 | B | - | - | Stainless steel 1.4301 | - | Stainless steel 1.4301 | | | on request | | | 27878-1212 | B | - | without slot | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | | | on request | | | 27878-1213 | B | - | - | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | | | on request | | | 27878-1214 | B | - | - | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | | | on request | | | 27878-2214 | B | - | - | Stainless steel 1.4401 | screw on | Stainless steel 1.4401 | | | on request | | | 27878-2213 | B | - | - | Stainless steel 1.4401 | screw on | Stainless steel 1.4401 | | | on request | |
| Order No. | Frame part surface finish | Main
material | B1 | B2 | B3 | B4 | D | D1 | H1 | H2 | H3 | H4 | L | L1 | S | CAD | Acc. | Price | Order |
|---|
| 27878-0222 | untreated | steel | 17,5 | 4,6 | 18 | - | 5 | - | 75 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-0223 | untreated | steel | 17,5 | 4,6 | 18 | - | 5 | - | 78 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-0224 | untreated | steel | 17,5 | 4,6 | 18 | - | 5 | - | 78 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-02221 | untreated | steel | 17,5 | 4,6 | 18 | - | 5 | - | 75 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-02231 | electro zinc-plated | steel | 17,5 | 4,6 | 18 | - | 5 | - | 78 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-02241 | electro zinc-plated | steel | 17,5 | 4,6 | 18 | - | 5 | - | 78 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-0212 | electro zinc-plated | steel | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 75 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-0213 | untreated | steel | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-0214 | untreated | steel | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-02121 | electro zinc-plated | steel | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 75 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-02131 | electro zinc-plated | steel | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-02141 | electro zinc-plated | steel | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-1222 | bright | stainless steel A2 | 17,5 | 4,6 | 18 | - | 5 | - | 75 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-1223 | bright | stainless steel A2 | 17,5 | 4,6 | 18 | - | 5 | - | 78 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-1224 | bright | stainless steel A2 | 17,5 | 4,6 | 18 | - | 5 | - | 78 | - | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-1212 | bright | stainless steel A2 | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 75 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-1213 | bright | stainless steel A2 | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-1214 | bright | stainless steel A2 | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-2214 | bright | stainless steel A4 | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | | | 27878-2213 | bright | stainless steel A4 | 17,5 | 4,6 | 18 | 12 | 5 | M4 | 78 | 20 | 60 | 36 | 14,6 | 2,5 | 2 | | | on request | |
|

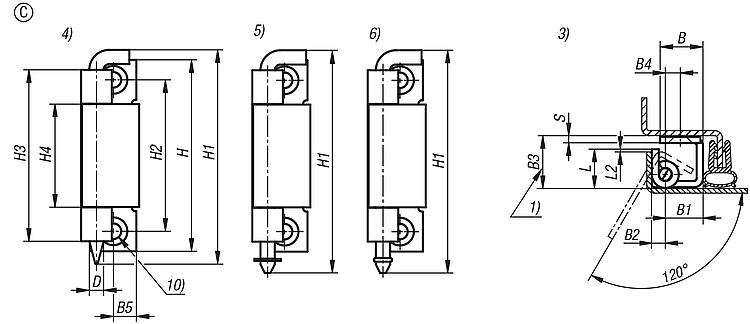

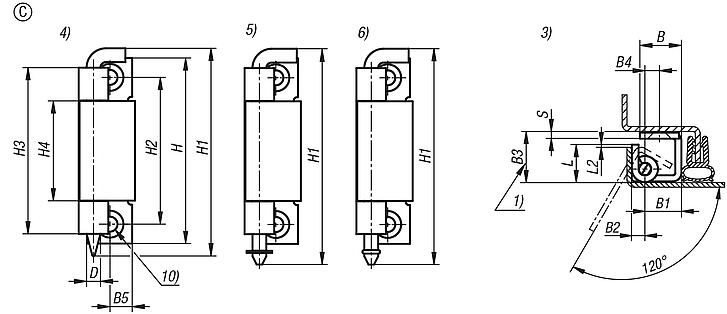

Concealed hinges steel or stainless steel, folded edge up to 20 mm, Form C |
More information |
| Order No. | Form | Pin version
| Pin material | Frame part fastening | Frame part material | CAD | Acc. | Price | Order |
|---|
| 27878-0312 | C | without slot | steel | screw on | steel | | | on request | | | 27878-0313 | C | - | steel | screw on | steel | | | on request | | | 27878-0314 | C | - | steel | screw on | steel | | | on request | | | 27878-1312 | C | without slot | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | | | on request | | | 27878-1313 | C | - | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | | | on request | | | 27878-1314 | C | - | Stainless steel 1.4301 | screw on | Stainless steel 1.4301 | | | on request | |
| Order No. | Frame part surface finish | Main
material | B | B1 | B2 | B3 | B4 | B5 | D | H | H1 | H2 | H3 | H4 | L | L2 | S | CAD | Acc. | Price | Order |
|---|
| 27878-0312 | electro zinc-plated | steel | 17 | 14,95 | 5,4 | 20 | 6 | 8 | 5 | 67 | 75 | 53 | 60 | 36 | 15 | 1 | 2,5 | | | on request | | | 27878-0313 | electro zinc-plated | steel | 17 | 14,95 | 5,4 | 20 | 6 | 8 | 5 | 67 | 78 | 53 | 60 | 36 | 15 | 1 | 2,5 | | | on request | | | 27878-0314 | electro zinc-plated | steel | 17 | 14,95 | 5,4 | 20 | 6 | 8 | 5 | 67 | 78 | 53 | 60 | 36 | 15 | 1 | 2,5 | | | on request | | | 27878-1312 | bright | stainless steel A2 | 17 | 14,95 | 5,4 | 20 | 6 | 8 | 5 | 67 | 75 | 53 | 60 | 36 | 15 | 1 | 2,5 | | | on request | | | 27878-1313 | bright | stainless steel A2 | 17 | 14,95 | 5,4 | 20 | 6 | 8 | 5 | 67 | 78 | 53 | 60 | 36 | 15 | 1 | 2,5 | | | on request | | | 27878-1314 | bright | stainless steel A2 | 17 | 14,95 | 5,4 | 20 | 6 | 8 | 5 | 67 | 78 | 53 | 60 | 36 | 15 | 1 | 2,5 | | | on request | |
|

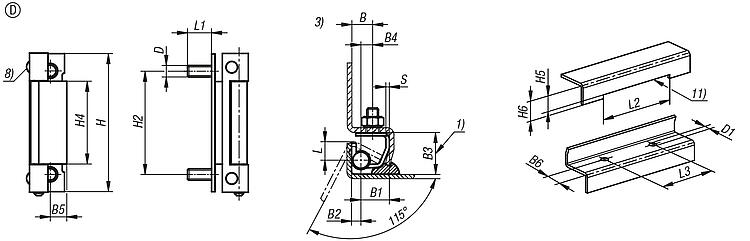

Concealed hinges steel or stainless steel, folded edge up to 20 mm, Form D |
More information |
| Order No. | Form | Pin version
| Pin material | Frame part fastening | Frame part material | Frame part surface finish | CAD | Acc. | Price | Order |
|---|
| 27878-1411 | D | pressed in | stainless steel 1.4305 | screw on | Stainless steel 1.4301 | bright | | | on request | |
| Order No. | Main
material | B | B1 | B2 | B3 | B4 | B5 | B6 | D | D1 | H | H2 | H4 | H5 | H6 | L | L3 | S | CAD | Acc. | Price | Order |
|---|
| 27878-1411 | stainless steel A2 | 12 | 12,2 | 4 | 16 | 5 | 7,2 | 14 | M5 | 5,3 | 60 | 45 | 36 | 13,5 | 15 | 7,3 | 45 | 1,5 | | | on request | |
|
