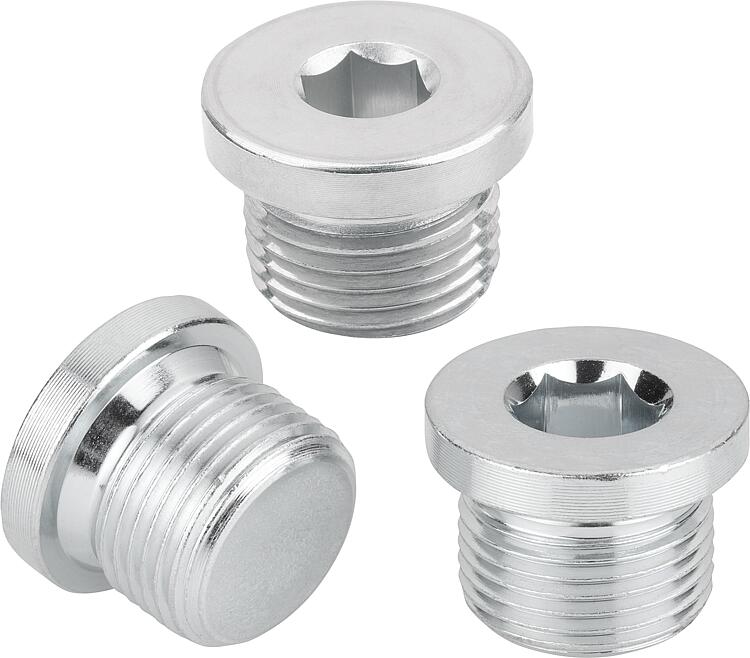

28014Screw plugs, steel or stainless steel, with collar and hexagon... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Version:Steel electro zinc-plated.
Stainless steel bright.Note:Screw plugs with collar and hexagon socket for plugging holes with parallel threads.Accessory:DIN 7603 sealing washers, copper, aluminium or stainless steel 23901. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D
| D1 | K | L | SW | CAD | Acc. | Price | Order |
|---|
| 28014-100810 | steel | 12 | M8x1 | 3 | 8 | 4 |  | | on request | | | 28014-101010 | steel | 14 | M10X1 | 3 | 8 | 5 | | | on request | | | 28014-101215 | steel | 17 | M12X1,5 | 3 | 12 | 6 | | | on request | | | 28014-101415 | steel | 19 | M14X1,5 | 3 | 12 | 6 | | | on request | | | 28014-101615 | steel | 21 | M16X1,5 | 3 | 12 | 8 | | | on request | | | 28014-101815 | steel | 23 | M18X1,5 | 4 | 12 | 8 | | | on request | | | 28014-102015 | steel | 25 | M20X1,5 | 4 | 14 | 10 | | | on request | | | 28014-102215 | steel | 27 | M22X1,5 | 4 | 14 | 10 | | | on request | | | 28014-102415 | steel | 29 | M24X1,5 | 4 | 14 | 12 | | | on request | | | 28014-102615 | steel | 31 | M26X1,5 | 4 | 16 | 12 | | | on request | | | 28014-102720 | steel | 32 | M27X2 | 4 | 16 | 12 | | | on request | | | 28014-103015 | steel | 36 | M30X1,5 | 4 | 16 | 17 | | | on request | | | 28014-103320 | steel | 39 | M33X2 | 5 | 16 | 17 | | | on request | | | 28014-103615 | steel | 42 | M36X1,5 | 5 | 16 | 19 | | | on request | | | 28014-104215 | steel | 49 | M42X1,5 | 5 | 16 | 22 | | | on request | | | 28014-104220 | steel | 49 | M42X2 | 5 | 16 | 22 | | | on request | | | 28014-104815 | steel | 55 | M48X1,5 | 5 | 16 | 24 | | | on request | | | 28014-104820 | steel | 55 | M48X2 | 5 | 16 | 24 | | | on request | | | 28014-10018 | steel | 14 | G1/8 | 3 | 8 | 5 | | | on request | | | 28014-10014 | steel | 18 | G1/4 | 3 | 12 | 6 | | | on request | | | 28014-10038 | steel | 22 | G3/8 | 3 | 12 | 8 | | | on request | | | 28014-10012 | steel | 26 | G1/2 | 4 | 14 | 10 | | | on request | | | 28014-10034 | steel | 32 | G3/4 | 4 | 16 | 12 | | | on request | | | 28014-10100 | steel | 39 | G1 | 5 | 16 | 17 | | | on request | | | 28014-10114 | steel | 49 | G1 1/4 | 5 | 16 | 22 | | | on request | | | 28014-10112 | steel | 55 | G1 1/2 | 5 | 16 | 24 | | | on request | | | 28014-201010 | stainless steel A4 | 14 | M10X1 | 3 | 8 | 5 | | | on request | | | 28014-201215 | stainless steel A4 | 17 | M12X1,5 | 3 | 12 | 6 | | | on request | | | 28014-201415 | stainless steel A4 | 19 | M14X1,5 | 3 | 12 | 6 | | | on request | | | 28014-201615 | stainless steel A4 | 21 | M16X1,5 | 3 | 12 | 8 | | | on request | | | 28014-201815 | stainless steel A4 | 23 | M18X1,5 | 4 | 12 | 8 | | | on request | | | 28014-202015 | stainless steel A4 | 25 | M20X1,5 | 4 | 14 | 10 | | | on request | | | 28014-202215 | stainless steel A4 | 27 | M22X1,5 | 4 | 14 | 10 | | | on request | | | 28014-202415 | stainless steel A4 | 29 | M24X1,5 | 4 | 14 | 12 | | | on request | | | 28014-202615 | stainless steel A4 | 31 | M26X1,5 | 4 | 16 | 12 | | | on request | | | 28014-202720 | stainless steel A4 | 32 | M27X2 | 4 | 16 | 12 | | | on request | | | 28014-203015 | stainless steel A4 | 36 | M30X1,5 | 4 | 16 | 17 | | | on request | | | 28014-20018 | stainless steel A4 | 14 | G1/8 | 3 | 8 | 5 | | | on request | | | 28014-20014 | stainless steel A4 | 18 | G1/4 | 3 | 12 | 6 | | | on request | | | 28014-20038 | stainless steel A4 | 22 | G3/8 | 3 | 12 | 8 | | | on request | | | 28014-20012 | stainless steel A4 | 26 | G1/2 | 4 | 14 | 10 | | | on request | | | 28014-20034 | stainless steel A4 | 32 | G3/4 | 4 | 16 | 12 | | | on request | | | 28014-20100 | stainless steel A4 | 39 | G1 | 5 | 16 | 17 | | | on request | | | 28014-20114 | stainless steel A4 | 49 | G1 1/4 | 5 | 16 | 22 | | | on request | | | 28014-20112 | stainless steel A4 | 55 | G1 1/2 | 5 | 16 | 24 | | | on request | |
