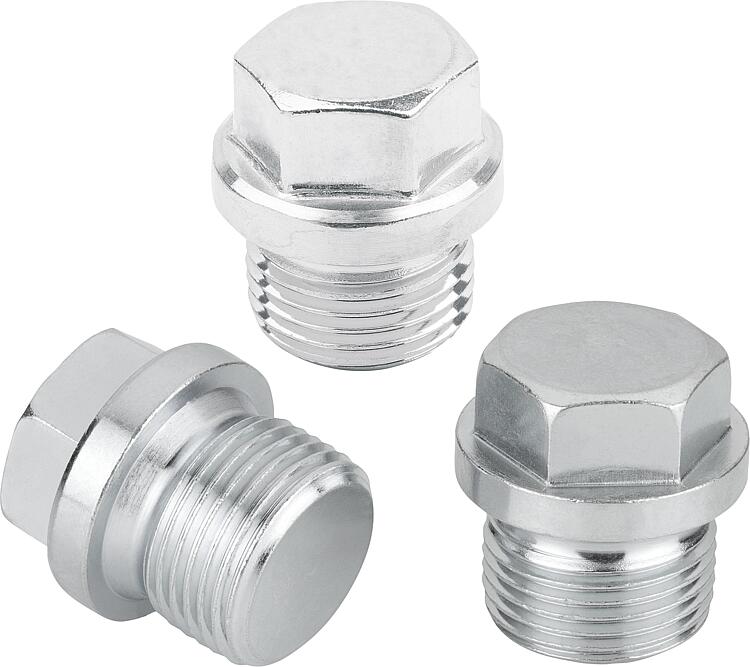

      - Screw plugs, steel or stainless steel, with collar and external hexagon DIN 910

Item description/product images

DescriptionMaterial:Version:Steel electro zinc-plated.
Stainless steel bright.Note:Screw plugs with collar and hexagonal head for plugging holes with parallel threads.Accessory:DIN 7603 sealing washers, copper, aluminium or stainless steel K2078.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28016 Screw plugs, steel or stainless steel, with collar and external hexagon DIN 910

201 kB

Drawings

Item selection/filter

Order No.	Main material	D	D1	K	L	L1	SW	Price
28016-101010	steel	14	M10X1	6	8	3	10	on request
28016-101215	steel	17	M12X1,5	6	12	3	13	on request
28016-101415	steel	19	M14X1,5	6	12	3	13	on request
28016-101615	steel	21	M16X1,5	6	12	3	17	on request
28016-101815	steel	23	M18X1,5	8	12	4	17	on request
28016-102015	steel	25	M20X1,5	8	14	4	19	on request
28016-102215	steel	27	M22X1,5	8	14	4	19	on request
28016-102415	steel	29	M24X1,5	9	14	4	22	on request
28016-102615	steel	31	M26X1,5	10	16	4	24	on request
28016-102720	steel	32	M27X2	10	16	4	24	on request
28016-103015	steel	36	M30X1,5	10	16	4	24	on request
28016-103320	steel	39	M33X2	11	16	5	27	on request
28016-103615	steel	42	M36X1,5	11	16	5	27	on request
28016-104215	steel	49	M42X1,5	12	16	5	30	on request
28016-104220	steel	49	M42X2	12	16	5	30	on request
28016-104815	steel	55	M48X1,5	12	16	5	30	on request
28016-104820	steel	55	M48X2	12	16	5	30	on request
28016-10018	steel	14	G1/8	6	8	3	10	on request
28016-10014	steel	18	G1/4	6	12	3	13	on request
28016-10038	steel	22	G3/8	6	12	3	17	on request
28016-10012	steel	26	G1/2	8	14	4	19	on request
28016-10034	steel	32	G3/4	10	16	4	24	on request
28016-10100	steel	39	G1	11	16	5	27	on request
28016-10114	steel	49	G1 1/4	12	16	5	30	on request
28016-10112	steel	55	G1 1/2	12	16	5	30	on request
28016-201010	stainless steel A4	14	M10X1	6	8	3	10	on request
28016-201215	stainless steel A4	17	M12X1,5	6	12	3	13	on request
28016-201415	stainless steel A4	19	M14X1,5	6	12	3	13	on request
28016-201615	stainless steel A4	21	M16X1,5	6	12	3	17	on request
28016-201815	stainless steel A4	23	M18X1,5	8	12	4	17	on request
28016-202015	stainless steel A4	25	M20X1,5	8	14	4	19	on request
28016-202215	stainless steel A4	27	M22X1,5	8	14	4	19	on request
28016-202415	stainless steel A4	29	M24X1,5	9	14	4	22	on request
28016-202615	stainless steel A4	31	M26X1,6	10	16	4	24	on request
28016-202720	stainless steel A4	32	M27X1,5	10	16	4	24	on request
28016-203015	stainless steel A4	36	M30X1,5	10	16	4	24	on request
28016-20018	stainless steel A4	14	G1/8	6	8	3	10	on request
28016-20014	stainless steel A4	18	G1/4	6	12	3	13	on request
28016-20038	stainless steel A4	22	G3/8	6	12	3	17	on request
28016-20012	stainless steel A4	26	G1/2	8	14	4	19	on request
28016-20034	stainless steel A4	32	G3/4	10	16	4	24	on request
28016-20100	stainless steel A4	39	G1	11	16	5	27	on request
28016-20114	stainless steel A4	49	G1 1/4	12	16	5	30	on request
28016-20112	stainless steel A4	55	G1 1/2	12	16	5	30	on request
