28040

Vent screws brass

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Vent screws brass

Item description/product images

DescriptionMaterial:Housing and cap brass.
Air filter galvanised steel wire mesh.Version:Air filter mesh 50 - 60 µm.

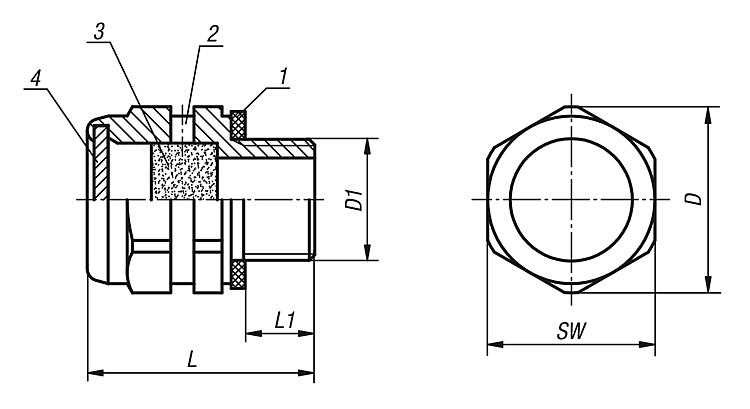

Flat seal asbestos-free.Drawing reference:

1) flat seal
2) vent hole 2x
3) air filter
4) cap

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28040 Vent screws brass

173 kB

Drawings

Item selection/filter

Order No.	D	D1	L	L1	SW	Price
28040-20014	20	G1/4	24,5	7,5	18	on request
28040-24038	24,5	G3/8	24,5	8,5	22	on request
28040-30012	30	G1/2	24,5	8,5	27	on request
