        Shaft collars for DIN ISO 14 splined hubs

Item description/product images

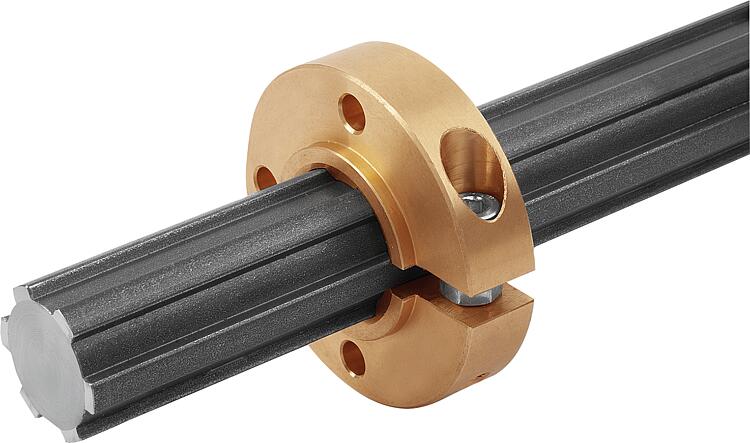

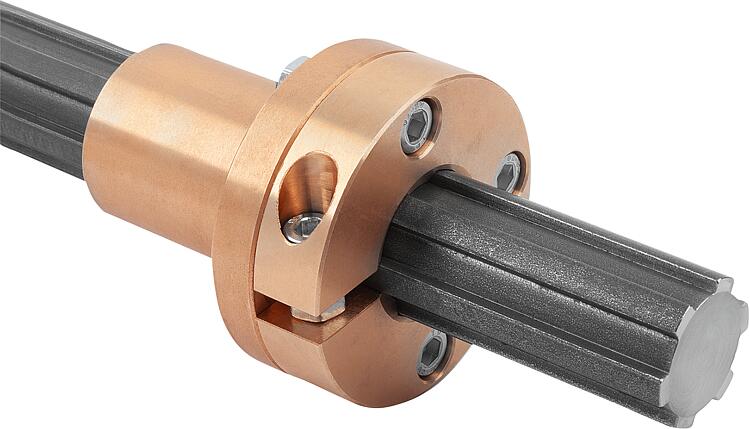

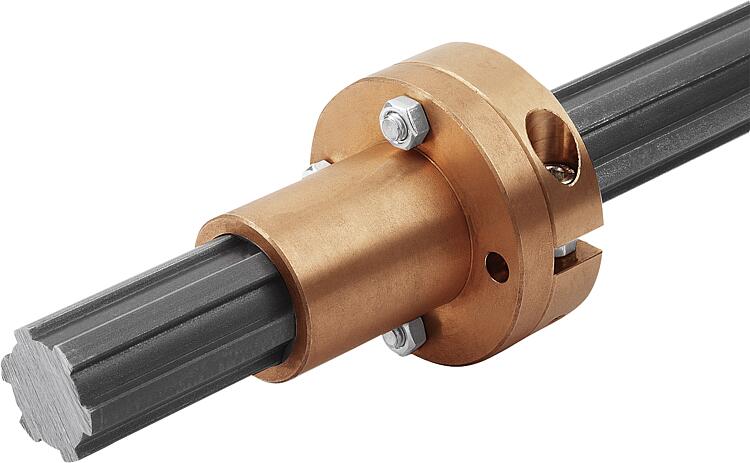

DescriptionMaterial:Steel C45 or gunmetal RG7.Version:Bright.Note:Slotted shaft collars for DIN 14 splined hubs and splined shafts. For positioning and securing components in the axial alignment on the splined shaft. The shaft collars can be used as an intermediate stop or end stop to limit the movement of components. They provide a full-surface clamping force and do not damage the shaft surface. This design has through-holes that enable easy and secure attachment to a splined hub with flange.

With additional nut. This is used to adjust the inside diameter and as a lock nut.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 24011-05 Shaft collars for DIN ISO 14 splined hubs

479 kB

Drawings

Item selection/filter

Order No.	Main material	No. of slots	C (DIN 912)	D	D2	D3	D4	D5	L	L1	Profile	T	Price
24011-05-11141	steel	6	M4x20	11	20	28	4,5	42	12	2	KN11x14	4,6	on request
24011-05-11142	gunmetal	6	M4x20	11	20	28	4,5	42	12	2	KN11x14	4,6	on request
24011-05-13161	steel	6	M4x20	13	22	36	4,5	50	12	2	KN13x16	4,6	on request
24011-05-13162	gunmetal	6	M4x20	13	22	36	4,5	50	12	2	KN13x16	4,6	on request
24011-05-16201	steel	6	M5x22	16	25	38	5,5	52	14	2	KN16x20	5,7	on request
24011-05-16202	gunmetal	6	M5x22	16	25	38	5,5	52	14	2	KN16x20	5,7	on request
24011-05-18221	steel	6	M5x22	18	30	40	5,5	54	14	3	KN18x22	5,7	on request
24011-05-18222	gunmetal	6	M5x22	18	30	40	5,5	54	14	3	KN18x22	5,7	on request
24011-05-21251	steel	6	M5x22	21	35	48	6,6	62	14	3	KN21x25	6,8	on request
24011-05-21252	gunmetal	6	M5x22	21	35	48	6,6	62	14	3	KN21x25	6,8	on request
24011-05-23281	steel	6	M6x25	23	36	50	6,6	64	15	3	KN23x28	6,8	on request
24011-05-23282	gunmetal	6	M6x25	23	36	50	6,6	64	15	3	KN23x28	6,8	on request
24011-05-26321	steel	6	M6x25	26	40	56	6,6	70	15	3	KN26x32	6,8	on request
24011-05-26322	gunmetal	6	M6x25	26	40	56	6,6	70	15	3	KN26x32	6,8	on request
24011-05-32381	steel	8	M8x30	32	50	65	9	82	18	3	KN32x38	9	on request
24011-05-32382	gunmetal	8	M8x30	32	50	65	9	82	18	3	KN32x38	9	on request
24011-05-36421	steel	8	M8x30	36	52	70	9	90	18	3	KN36x42	9	on request
24011-05-36422	gunmetal	8	M8x30	36	52	70	9	90	18	3	KN36x42	9	on request
24011-05-42481	steel	8	M8x30	42	60	75	11	95	22	3	KN42x48	11	on request
24011-05-42482	gunmetal	8	M8x30	42	60	75	11	95	22	3	KN42x48	11	on request
24011-05-46541	steel	8	M8x30	46	65	80	11	100	24	3	KN46x54	11	on request
24011-05-46542	gunmetal	8	M8x30	46	65	80	11	100	24	3	KN46x54	11	on request
