        Cardan adapter for trapezoidal thread nuts with flange

Item description/product images

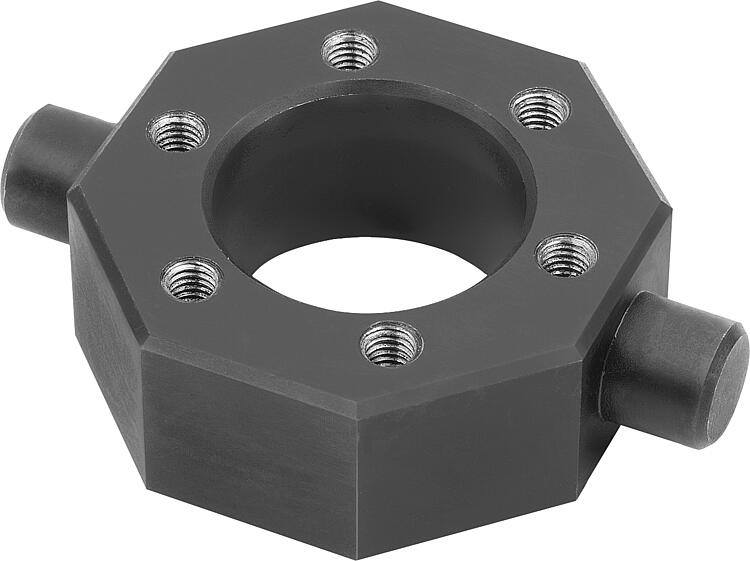

DescriptionMaterial:Steel (grade 400 N/mm2).Version:Black oxidised.Note:Cardan adapter for cardan mounting of trapezoidal nut with flange.

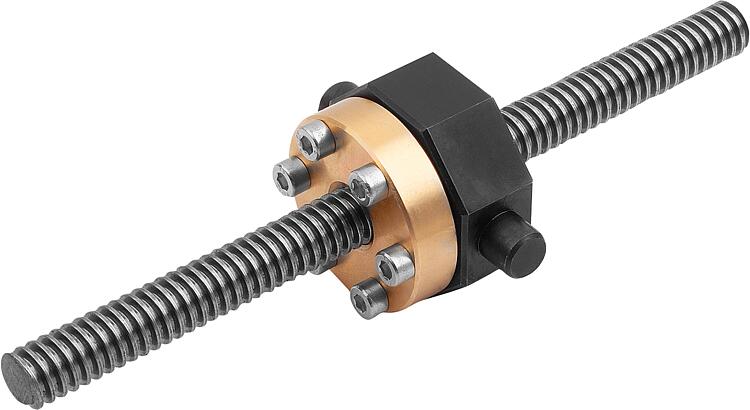

The cardan adapters for trapezoidal thread nuts with flange enable play-free, precise connections between the spindle and nut - even by slight angular errors. Due to the cardanic bearing, trapezoidal thread nuts can better compensate for movements, which significantly simplifies assembly and operation.

By D1=45, there is another hole pattern on the back with D3=65.
By D1=50, there is another hole pattern on the back with D3=65 / M8.Assembly:The trapezoidal thread nut must be fastened onto the adapter. Trapezoidal thread nuts from norelem can be easily assigned based on the diameter D1. For nuts from other manufacturers, the dimensions D1 and D3 must be compared so that the correct adapter is selected.Advantages:These robust cardan adapters offer a durable solution for a wide range of applications in machine and plant construction. They impress with their easy handling, reliable function and high precision.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 24006-10 Cardan adapter for trapezoidal thread nuts with flange

244 kB

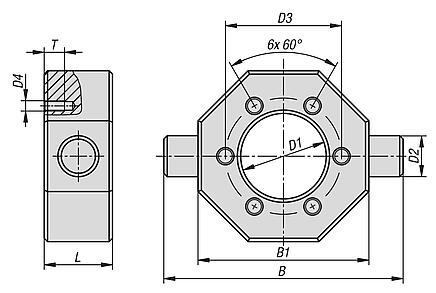

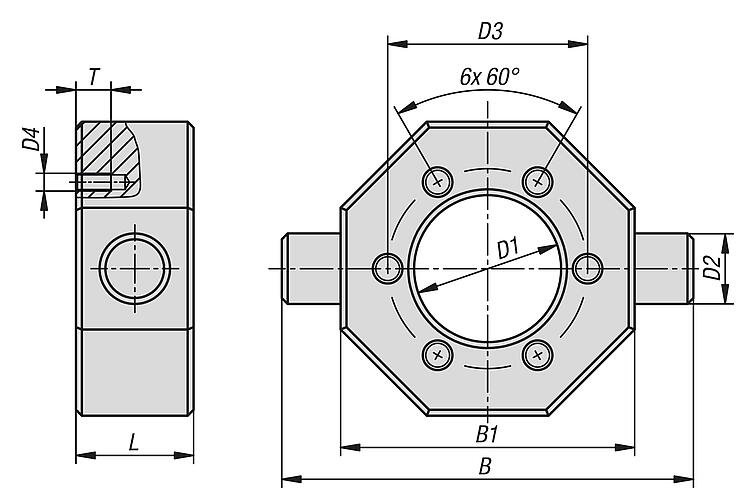

Drawings

Item selection/filter

Order No.	B	B1	D1	D2	D3	D4	L	T	Price
24006-10-25034	70	50	25	12	34	M5	20	10	on request
24006-10-26038	70	50	26	12	38	M5	20	10	on request
24006-10-28038	70	50	28	12	38	M5	20	10	on request
24006-10-30045	87	60	30	16	45	M6	25	12	on request
24006-10-32045	85	58	32	16	45	M6	25	12	on request
24006-10-38050	95	65	38	18	50	M6	25	12	on request
24006-10-40058	105	75	40	18	58	M6	25	12	on request
24006-10-45058	115	80	45	20	58 / 65	M6	30	12	on request
24006-10-50068	125	85	50	25	68 / 65	M6/M8	30	12	on request
24006-10-55085	165	115	55	25	85	M6	30	12	on request
24006-10-60095	175	135	60	30	95	M8	40	15	on request
24006-10-63078	140	100	63	30	78	M8	40	15	on request
24006-10-72090	165	115	72	40	90	M10	50	16	on request
