Clamp strap, steel - inch

04188 inch

Clamp strap, steel - inch

Products
- Product overview
  - norelem inch
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts - inch
      - Clamp straps - inch
        Clamp strap, steel - inch

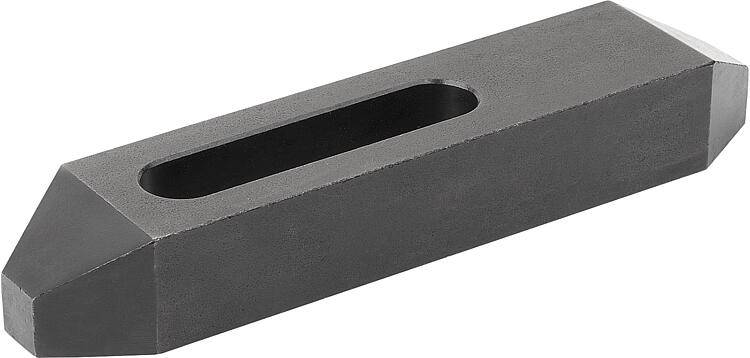

Item description/product images

DescriptionMaterial:Carbon steel.Version:Case-hardened and black oxidised.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04188 inch Clamp strap, steel - inch

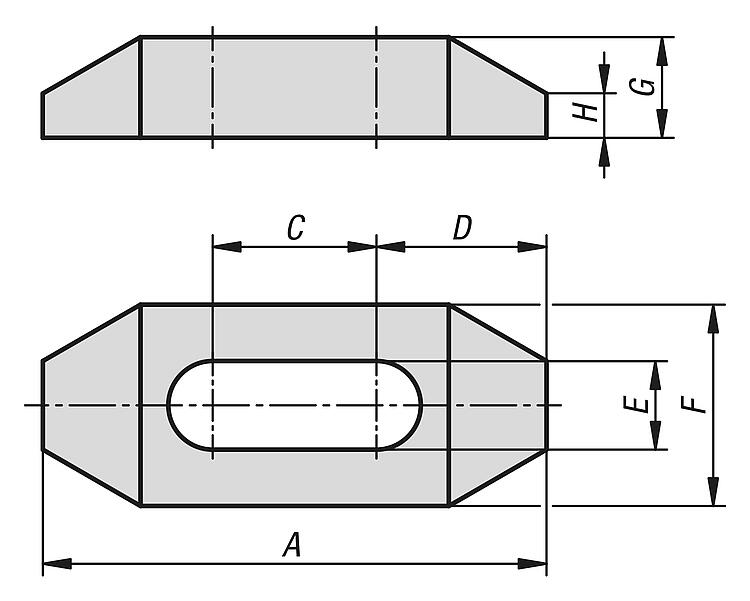

Drawings

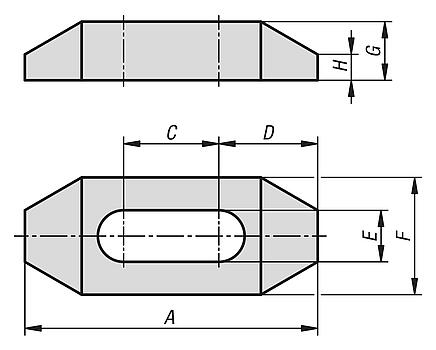

Clamp strap, steel - inch

Item selection/filter

Order No.	A in inch	C in inch	D in inch	Suitable for	F in inch	G in inch	H in inch	CAD	Acc.	Price	Order
04188-COL36	2.500	0.813	0.844	5/16,3/8	1.000	0.500	0.220			on request
04188-COL44	4.000	1.438	1.031	5/16,3/8	1.000	0.625	0.250			on request
04188-COL52	6.000	2.188	1.156	5/16,3/8	1.125	0.750	0.340			on request
04188-CPL36	2.500	0.688	0.906	1/2	1.125	0.500	0.220			on request
04188-CPL44	4.000	1.313	1.156	1/2	1.250	0.750	0.340			on request
04188-CPL52	6.000	2.063	1.281	1/2	1.250	0.875	0.470			on request
04188-CQL36	2.500	0.563	0.969	5/8	1.250	0.625	0.340			on request
04188-CQL44	4.000	1.188	1.281	5/8	1.500	0.750	0.340			on request
04188-CQL52	6.000	1.938	1.406	5/8	1.500	0.875	0.420			on request
04188-CRL44	4.000	1.063	1.344	3/4	1.500	0.750	0.340			on request
04188-CRL52	6.000	1.938	1.469	3/4	1.500	1.000	0.520			on request
04188-CRL60	8.000	2.188	1.906	3/4	1.750	1.125	0.520			on request
