        Toe clamp, adjustable, Form A - inch

Item description/product images

DescriptionMaterial:Carbon steel.Version:Case-hardened and black oxidised.Note:The length L includes the 1/8" raised nose.

Form A:

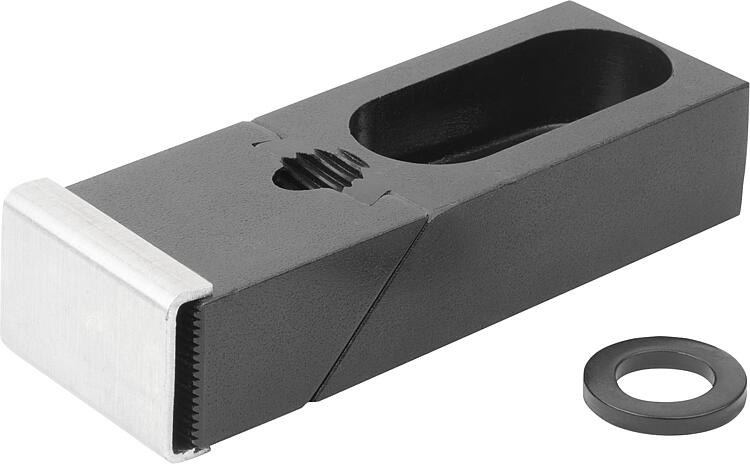

The smooth version has a removable aluminium cap that protects the workpiece from damage.
Form B:
The serrated version ensures a better grip on the workpiece.Drawing reference:

A) smooth version
B) serrated version

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04470-06 _A inch Toe clamp, adjustable, Form A - inch

161 kB

Drawings

Item selection/filter

Order No.	Form	B in inch	Suitable for	H in inch	H1 in inch	L inch	L1 in inch	L2 in inch	Price
04470-06-992CNL04	A	1.000	5/16	0.625	0.625	1.875	0.250	0.406	on request
04470-06-992CQL20	A	1.500	5/8	0.875	0.875	3.875	1.250	0.500	on request
04470-06-992CPL20	A	1.500	1/2	0.875	0.875	4.063	1.250	0.500	on request
04470-06-992CQL32	A	1.500	5/8	0.875	0.875	5.313	2.000	0.875	on request
