        Cam-action indexing plungers, Form C, with grip cap, without nut - inch

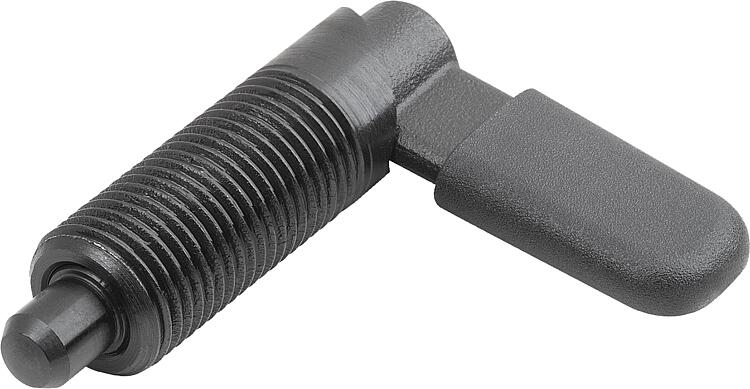

Item description/product images

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.
Grip cap thermoplastic PA.Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap:
-black grey RAL 7021Advantages:Turning the grip through 180° retracts the pin.
Mounted via the external thread.On request:Special versions.
Accessory:Mounting bracket 03099.
Positioning bushes 03099-50, 03099-60, 03099-61.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-11_C inch Cam-action indexing plungers, Form C, with grip cap, without nut, inch

200 kB

Drawings

Item selection/filter

Order No.	Form	Component colour	D	D1	D2	L	L1	L3	B	B1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-11-0604A4	C	black grey RAL 7021	4	3/8-16	10	39,5	26,3	20	10,9	4,9	6	1	8	14	on request
03099-11-0605A4	C	black grey RAL 7021	5	3/8-16	10	39,5	26,3	20	10,9	4,9	6	1,3	8	14	on request
03099-11-0606A4	C	black grey RAL 7021	6	3/8-16	10	39,5	26,3	20	10,9	4,9	6	1,8	8	14	on request
03099-11-0604AL	C	black grey RAL 7021	4	3/8-24	10	39,5	26,3	20	10,9	4,9	6	1	8	14	on request
03099-11-0605AL	C	black grey RAL 7021	5	3/8-24	10	39,5	26,3	20	10,9	4,9	6	1,3	8	14	on request
03099-11-0606AL	C	black grey RAL 7021	6	3/8-24	10	39,5	26,3	20	10,9	4,9	6	1,8	8	14	on request
03099-11-0605A5	C	black grey RAL 7021	5	1/2-13	12	48,4	31,1	25	12,9	5,7	8	1,3	8	15	on request
03099-11-0606A5	C	black grey RAL 7021	6	1/2-13	12	48,4	31,1	25	12,9	5,7	8	1,8	8	15	on request
03099-11-0608A5	C	black grey RAL 7021	8	1/2-13	12	48,4	31,1	25	12,9	5,7	8	2,3	8	15	on request
03099-11-0605AM	C	black grey RAL 7021	5	1/2-20	12	48,4	31,1	25	12,9	5,7	8	1,3	8	15	on request
03099-11-0606AM	C	black grey RAL 7021	6	1/2-20	12	48,4	31,1	25	12,9	5,7	8	1,8	8	15	on request
03099-11-0608AM	C	black grey RAL 7021	8	1/2-20	12	48,4	31,1	25	12,9	5,7	8	2,3	8	15	on request
03099-11-0606A6	C	black grey RAL 7021	6	5/8-11	16	62,3	41,5	32	16,6	7	10	1,8	15	35	on request
03099-11-0608A6	C	black grey RAL 7021	8	5/8-11	16	62,3	41,5	32	16,6	7	10	2,3	15	35	on request
03099-11-0610A6	C	black grey RAL 7021	10	5/8-11	16	62,3	41,5	32	16,6	7	10	2,8	15	35	on request
03099-11-0606AN	C	black grey RAL 7021	6	5/8-18	16	62,3	41,5	32	16,6	7	10	1,8	15	35	on request
03099-11-0608AN	C	black grey RAL 7021	8	5/8-18	16	62,3	41,5	32	16,6	7	10	2,3	15	35	on request
03099-11-0610AN	C	black grey RAL 7021	10	5/8-18	16	62,3	41,5	32	16,6	7	10	2,8	15	35	on request
03099-11-0608A7	C	black grey RAL 7021	8	3/4-10	20	72,3	51,25	35	20,5	8,5	12	2,3	20	60	on request
03099-11-0610A7	C	black grey RAL 7021	10	3/4-10	20	72,3	51,25	35	20,5	8,5	12	2,8	20	60	on request
03099-11-0612A7	C	black grey RAL 7021	12	3/4-10	20	72,3	51,25	35	20,5	8,5	12	3	20	60	on request
03099-11-0608AO	C	black grey RAL 7021	8	3/4-16	20	72,3	51,25	35	20,5	8,5	12	2,3	20	60	on request
03099-11-0610AO	C	black grey RAL 7021	10	3/4-16	20	72,3	51,25	35	20,5	8,5	12	2,8	20	60	on request
03099-11-0612AO	C	black grey RAL 7021	12	3/4-16	20	72,3	51,25	35	20,5	8,5	12	3	20	60	on request
