Swivel feet - inch

go back

Products
- Product overview
  - norelem inch
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts - inch
      - Grub screws and pressure pads - inch
        Swivel feet - inch

Item description/product images

DescriptionMaterial:Form A,G: Foot high carbon steel, ball element free-cutting steel.
Form B: All stainless steel
Form C: Foot POM, ball element free-cutting steel.
Form D: Foot POM, ball element stainless steel.

Anti-slip plate thermoplastic elastomer.Version:Form A: Ball element case-hardened and black oxidised.
Form B: Bright.
Form C: Ball element case-hardened and black oxidised.
Form D: Ball element bright.
Form G: Ball element case hardened and black oxidised, foot with anti-slip plate.Note:The anti-slip plate absorbs vibrations and prevents the swivel foot slipping
The loading indicated in the table is a recommendation up to which permanent static load the swivel foot can be used.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07144 inch Swivel feet, inch

212 kB

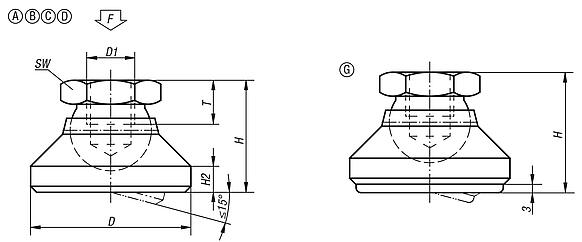

Drawings (total overview)

Swivel feet, Form A and B - inch

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	H2	T	SW	Load rating max. kN	Price
07144-1A2	A	20	1/4-20	15	2,5	8,5	10	10	on request
07144-1A3	A	25	5/16-18	18	4	9	13	18	on request
07144-1A4	A	32	3/8-16	22	5	10	17	20	on request
07144-1A5	A	40	1/2-13	26	6	12	19	35	on request
07144-1A6	A	50	5/8-11	32	7	14	24	45	on request
07144-1A7	A	60	3/4-10	42	8	18	30	55	on request
07144-3A2	B	20	1/4-20	15	2,5	8,5	10	10	on request
07144-3A3	B	25	5/16-18	18	4	9	13	18	on request
07144-3A4	B	32	3/8-16	22	5	10	17	20	on request
07144-3A5	B	40	1/2-13	26	6	12	19	35	on request
07144-3A6	B	50	5/8-11	32	7	14	24	45	on request
07144-3A7	B	60	3/4-10	42	8	18	30	55	on request

Swivel feet, Form C and D - inch

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	H2	T	SW	Load rating max. kN	Price
07144-5A2	C	20	1/4-20	15	2,5	8,5	10	4	on request
07144-5A3	C	25	5/16-18	18	4	9	13	7	on request
07144-5A4	C	32	3/8-16	22	5	10	17	10	on request
07144-5A5	C	40	1/2-13	26	6	12	19	18	on request
07144-5A6	C	50	5/8-11	32	7	14	24	20	on request
07144-5A7	C	60	3/4-10	42	8	18	30	22	on request
07144-2A2	D	20	1/4-20	15	2,5	8,5	10	4	on request
07144-2A3	D	25	5/16-18	18	4	9	13	7	on request
07144-2A4	D	32	3/8-16	22	5	10	17	10	on request
07144-2A5	D	40	1/2-13	26	6	12	19	18	on request
07144-2A6	D	50	5/8-11	32	7	14	24	20	on request
07144-2A7	D	60	3/4-10	42	8	18	30	22	on request
