        Levelling feet steel - inch

Item description/product images

DescriptionMaterial:Foot plate and threaded spindle steel.
Rubber support (NBR) 80 Shore.Version:Foot plate and threaded spindle electro zinc-plated steel.
Rubber support, vulcanised, black.

Note:Steel levelling feet with rotatable threaded spindle and rubber base. The solid rubber base is permanently vulcanised onto the sheet metal plate. The rubber base has excellent surface traction. It is sound damping and impedes transmission of vibrations and impacts to or from the floor.

The load values specified in the table are based on a test series in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces, such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.

Supplied with matching nut.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27790 inch Levelling feet steel - inch

140 kB

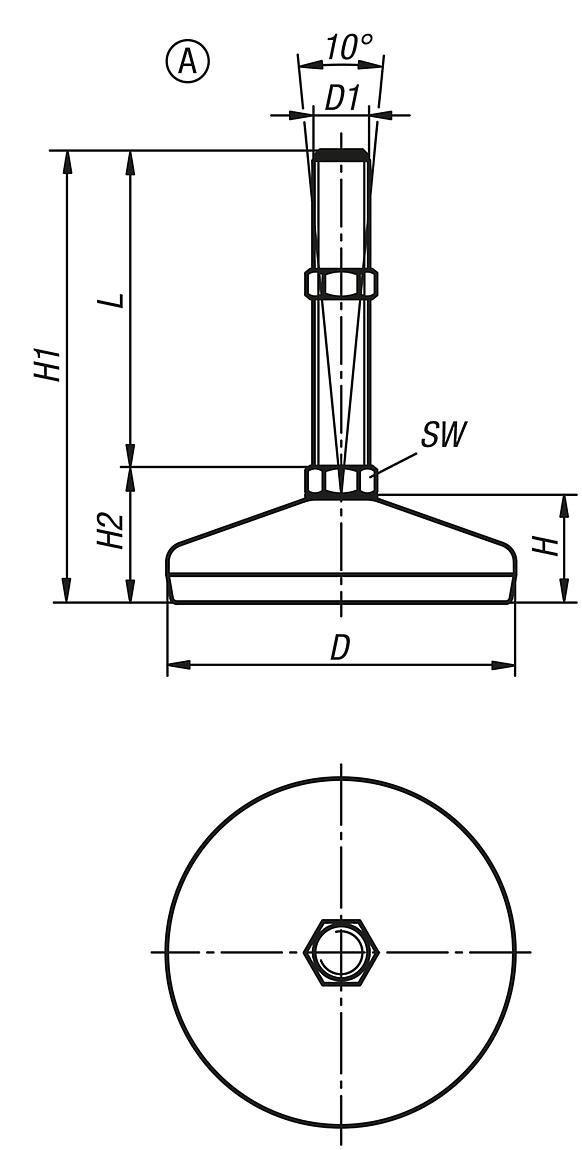

Drawings

Item selection/filter

Order No.	Form	D	D1	H	H1	H2	L	SW	Load rating max. kN (static load only)	Price
27790-11040A2X25	A	40	1/4-20	15	49,5	24,5	25	1/2	3	on request
27790-11040A2X50	A	40	1/4-20	15	74,5	24,5	50	1/2	3	on request
27790-11040A2X75	A	40	1/4-20	15	99,5	24,5	75	1/2	3	on request
27790-11040A3X25	A	40	5/16-18	15	49,5	24,5	25	1/2	3	on request
27790-11040A3X50	A	40	5/16-18	15	74,5	24,5	50	1/2	3	on request
27790-11040A3X75	A	40	5/16-18	15	99,5	24,5	75	1/2	3	on request
27790-11040A3X100	A	40	5/16-18	15	124,5	24,5	100	1/2	3	on request
27790-11040A4X25	A	40	3/8-16	15	49,5	24,5	25	1/2	3	on request
27790-11040A4X50	A	40	3/8-16	15	74,5	24,5	50	1/2	3	on request
27790-11040A4X75	A	40	3/8-16	15	99,5	24,5	75	1/2	3	on request
27790-11040A4X100	A	40	3/8-16	15	124,5	24,5	100	1/2	3	on request
27790-11040A4X125	A	40	3/8-16	15	149,5	24,5	125	1/2	3	on request
27790-11040A4X150	A	40	3/8-16	15	174,5	24,5	150	1/2	3	on request
27790-11040A5X50	A	40	1/2-13	15	74,5	24,5	50	1/2	3	on request
27790-11040A5X75	A	40	1/2-13	15	99,5	24,5	75	1/2	3	on request
27790-11040A5X100	A	40	1/2-13	15	124,5	24,5	100	1/2	3	on request
27790-11040A5X125	A	40	1/2-13	15	149,5	24,5	125	1/2	3	on request
27790-11040A5X150	A	40	1/2-13	15	174,5	24,5	150	1/2	3	on request
27790-11050A4X50	A	50	3/8-16	19	79	29	50	5/8	4	on request
27790-11050A4X100	A	50	3/8-16	19	129	29	100	5/8	4	on request
27790-11050A4X150	A	50	3/8-16	19	179	29	150	5/8	4	on request
27790-11050A5X50	A	50	1/2-13	19	79	29	50	5/8	4	on request
27790-11050A5X100	A	50	1/2-13	19	129	29	100	5/8	4	on request
27790-11050A5X150	A	50	1/2-13	19	179	29	150	5/8	4	on request
27790-11050A6X75	A	50	5/8-11	19	104	29	75	5/8	4	on request
27790-11050A6X100	A	50	5/8-11	19	129	29	100	5/8	4	on request
27790-11050A6X150	A	50	5/8-11	19	179	29	150	5/8	4	on request
27790-11050A6X200	A	50	5/8-11	19	229	29	200	5/8	4	on request
27790-11060A4X50	A	60	3/8-16	22	82	32	50	5/8	7	on request
27790-11060A4X100	A	60	3/8-16	22	132	32	100	5/8	7	on request
27790-11060A4X150	A	60	3/8-16	22	182	32	150	5/8	7	on request
27790-11060A5X50	A	60	1/2-13	22	82	32	50	5/8	7	on request
27790-11060A5X100	A	60	1/2-13	22	132	32	100	5/8	7	on request
27790-11060A5X150	A	60	1/2-13	22	182	32	150	5/8	7	on request
27790-11060A6X75	A	60	5/8-11	22	107	32	75	5/8	7	on request
27790-11060A6X100	A	60	5/8-11	22	132	32	100	5/8	7	on request
27790-11060A6X150	A	60	5/8-11	22	182	32	150	5/8	7	on request
27790-11060A6X200	A	60	5/8-11	22	232	32	200	5/8	7	on request
27790-11060A7X75	A	60	3/4-10	22	111	36	75	3/4	7	on request
27790-11060A7X100	A	60	3/4-10	22	136	36	100	3/4	7	on request
27790-11060A7X150	A	60	3/4-10	22	186	36	150	3/4	7	on request
27790-11060A7X200	A	60	3/4-10	22	236	36	200	3/4	7	on request
27790-11060A7X250	A	60	3/4-10	22	286	36	250	3/4	7	on request
27790-11080A4X50	A	80	3/8-16	25	85	35	50	5/8	10	on request
27790-11080A4X100	A	80	3/8-16	25	135	35	100	5/8	10	on request
27790-11080A4X150	A	80	3/8-16	25	185	35	150	5/8	10	on request
27790-11080A5X50	A	80	1/2-13	25	85	35	50	5/8	10	on request
27790-11080A5X100	A	80	1/2-13	25	135	35	100	5/8	10	on request
27790-11080A5X150	A	80	1/2-13	25	185	35	150	5/8	10	on request
27790-11080A6X75	A	80	5/8-11	25	110	35	75	5/8	10	on request
27790-11080A6X100	A	80	5/8-11	25	135	35	100	5/8	10	on request
27790-11080A6X150	A	80	5/8-11	25	185	35	150	5/8	10	on request
27790-11080A6X200	A	80	5/8-11	25	235	35	200	5/8	10	on request
27790-11080A7X75	A	80	3/4-10	25	114	39	75	3/4	10	on request
27790-11080A7X100	A	80	3/4-10	25	139	39	100	3/4	10	on request
27790-11080A7X150	A	80	3/4-10	25	189	39	150	3/4	10	on request
27790-11080A7X200	A	80	3/4-10	25	239	39	200	3/4	10	on request
27790-11080A7X250	A	80	3/4-10	25	289	39	250	3/4	10	on request
27790-11080A8X75	A	80	1-8	25	114	39	75	1	10	on request
27790-11080A8X100	A	80	1-8	25	139	39	100	1	10	on request
27790-11080A8X150	A	80	1-8	25	189	39	150	1	10	on request
27790-11080A8X200	A	80	1-8	25	239	39	200	1	10	on request
27790-11080A8X250	A	80	1-8	25	289	39	250	1	10	on request
27790-11100A6X75	A	100	5/8-11	28	112,5	37,5	75	5/8	15	on request
27790-11100A6X100	A	100	5/8-11	28	137,5	37,5	100	5/8	15	on request
27790-11100A6X150	A	100	5/8-11	28	187,5	37,5	150	5/8	15	on request
27790-11100A6X200	A	100	5/8-11	28	237,5	37,5	200	5/8	15	on request
27790-11100A7X75	A	100	3/4-10	28	117	42	75	3/4	15	on request
27790-11100A7X100	A	100	3/4-10	28	142	42	100	3/4	15	on request
27790-11100A7X150	A	100	3/4-10	28	192	42	150	3/4	15	on request
27790-11100A7X200	A	100	3/4-10	28	242	42	200	3/4	15	on request
27790-11100A7X250	A	100	3/4-10	28	292	42	250	3/4	15	on request
27790-11100A8X100	A	100	1-8	28	142	42	100	1	15	on request
27790-11100A8X150	A	100	1-8	28	192	42	150	1	15	on request
27790-11100A8X200	A	100	1-8	28	242	42	200	1	15	on request
27790-11100A8X250	A	100	1-8	28	292	42	250	1	15	on request
27790-11100AFX100	A	100	1 1/4-7	28	143	43	100	1 1/4	15	on request
27790-11100AFX150	A	100	1 1/4-7	28	193	43	150	1 1/4	15	on request
27790-11100AFX200	A	100	1 1/4-7	28	243	43	200	1 1/4	15	on request
27790-11100AFX250	A	100	1 1/4-7	28	293	43	250	1 1/4	15	on request
27790-11120A6X75	A	120	5/8-11	32	116,5	41,5	75	5/8	30	on request
27790-11120A6X100	A	120	5/8-11	32	141,5	41,5	100	5/8	30	on request
27790-11120A6X150	A	120	5/8-11	32	191,5	41,5	150	5/8	30	on request
27790-11120A6X200	A	120	5/8-11	32	241,5	41,5	200	5/8	30	on request
27790-11120A7X75	A	120	3/4-10	32	121	46	75	3/4	30	on request
27790-11120A7X100	A	120	3/4-10	32	146	46	100	3/4	30	on request
27790-11120A7X150	A	120	3/4-10	32	196	46	150	3/4	30	on request
27790-11120A7X200	A	120	3/4-10	32	246	46	200	3/4	30	on request
27790-11120A7X250	A	120	3/4-10	32	296	46	250	3/4	30	on request
27790-11120A8X100	A	120	1-8	32	146	46	100	1	30	on request
27790-11120A8X150	A	120	1-8	32	196	46	150	1	30	on request
27790-11120A8X200	A	120	1-8	32	246	46	200	1	30	on request
27790-11120A8X250	A	120	1-8	32	296	46	250	1	30	on request
27790-11120AFX100	A	120	1 1/4-7	32	147,5	47,5	100	1 1/4	30	on request
27790-11120AFX150	A	120	1 1/4-7	32	197,5	47,5	150	1 1/4	30	on request
27790-11120AFX200	A	120	1 1/4-7	32	247,5	47,5	200	1 1/4	30	on request
27790-11120AFX250	A	120	1 1/4-7	32	297,5	47,5	250	1 1/4	30	on request
27790-11150A6X75	A	150	5/8-11	35	119,5	44,5	75	5/8	30	on request
27790-11150A6X100	A	150	5/8-11	35	144,5	44,5	100	5/8	30	on request
27790-11150A6X150	A	150	5/8-11	35	194,5	44,5	150	5/8	30	on request
27790-11150A6X200	A	150	5/8-11	35	244,5	44,5	200	5/8	30	on request
27790-11150A7X75	A	150	3/4-10	35	124	49	75	3/4	30	on request
27790-11150A7X100	A	150	3/4-10	35	149	49	100	3/4	30	on request
27790-11150A7X150	A	150	3/4-10	35	199	49	150	3/4	30	on request
27790-11150A7X200	A	150	3/4-10	35	249	49	200	3/4	30	on request
27790-11150A7X250	A	150	3/4-10	35	299	49	250	3/4	30	on request
27790-11150A8X100	A	150	1-8	35	149	49	100	1	40	on request
27790-11150A8X150	A	150	1-8	35	199	49	150	1	40	on request
27790-11150A8X200	A	150	1-8	35	249	49	200	1	40	on request
27790-11150A8X250	A	150	1-8	35	299	49	250	1	40	on request
27790-11150AFX100	A	150	1 1/4-7	35	150,5	50,5	100	1 1/4	40	on request
27790-11150AFX150	A	150	1 1/4-7	35	200,5	50,5	150	1 1/4	40	on request
27790-11150AFX200	A	150	1 1/4-7	35	250,5	50,5	200	1 1/4	40	on request
27790-11150AFX250	A	150	1 1/4-7	35	300,5	50,5	250	1 1/4	40	on request
